Invertek ODP-2-42150-3HF42-MN:
$2170.00

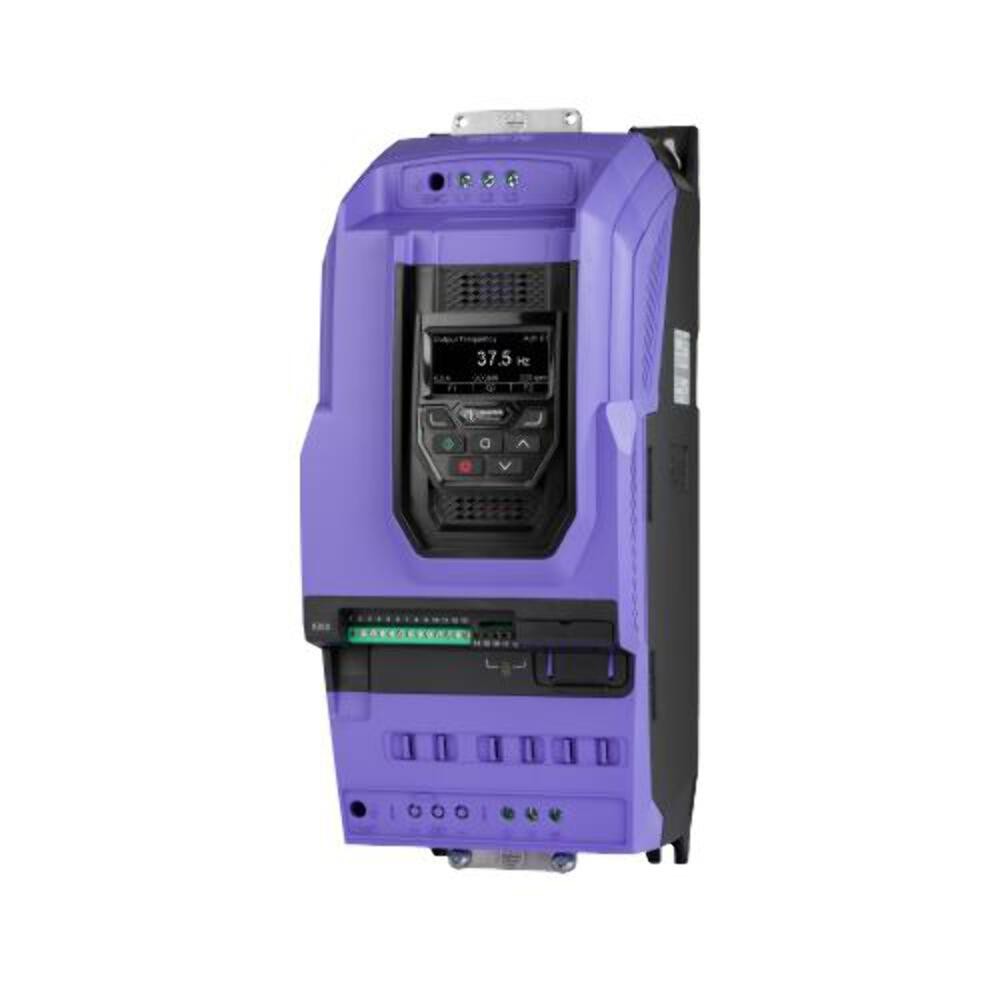

Invertek ODP-2-42150-3HF42-MNThe Invertek ODP-2-42150-3HF42-MN is an Optidrive P2 high performance variable frequency drive rated 15 HP (11 kW) with a continuous output current of 46 A. It accepts three phase 200-240 V input and delivers a three phase 200-240 V output for standard AC induction and permanent magnet motors. This is a frame Size 4 unit in an IP20 open chassis for panel mounting. The Optidrive P2 family provides sensorless vector control of induction, permanent magnet, brushless DC and synchronous reluctance motors, with 200% starting torque capability, an integrated brake transistor, and a text based OLED/TFT keypad display. Modbus RTU and CANopen communications are built in, with optional modules for other industrial networks. Typical applications include conveyors, mixers, machine tools, pumps, fans and general industrial machinery. Technical Specifications Manufacturer Invertek Drives Series Optidrive P2 (ODP-2) Part Number ODP-2-42150-3HF42-MN Power Rating 15 HP / 11 kW Rated Output Current 46 A Input Voltage Three phase, 200-240 V AC Output Voltage Three phase, 200-240 V AC Frame Size Size 4 Enclosure Rating IP20 EMC Filter Integrated EMC filter Control Method Sensorless vector; V/F; PM, BLDC and SynRM motor control Braking Integrated brake transistor (chopper) Communications Modbus RTU and CANopen built in; optional fieldbus modules Keypad Text based multi-line display with parameter navigation Invertek ODP-2-42150-3HF42-MN

The Invertek ODP-2-42150-3HF42-MN is an Optidrive P2 high performance variable frequency drive rated 15 HP (11 kW) with a continuous output current of 46 A. It accepts three phase 200-240 V input and delivers a three phase 200-240 V output for standard AC induction and permanent magnet motors. This is a frame Size 4 unit in an IP20 open chassis for panel mounting.

The Optidrive P2 family provides sensorless vector control of induction, permanent magnet, brushless DC and synchronous reluctance motors, with 200% starting torque capability, an integrated brake transistor, and a text based OLED/TFT keypad display. Modbus RTU and CANopen communications are built in, with optional modules for other industrial networks. Typical applications include conveyors, mixers, machine tools, pumps, fans and general industrial machinery.

Technical SpecificationsManufacturerInvertek DrivesSeriesOptidrive P2 (ODP-2)Part NumberODP-2-42150-3HF42-MNPower Rating15 HP / 11 kWRated Output Current46 AInput VoltageThree phase, 200-240 V ACOutput VoltageThree phase, 200-240 V ACFrame SizeSize 4Enclosure RatingIP20EMC FilterIntegrated EMC filterControl MethodSensorless vector; V/F; PM, BLDC and SynRM motor controlBrakingIntegrated brake transistor (chopper)CommunicationsModbus RTU and CANopen built in; optional fieldbus modulesKeypadText based multi-line display with parameter navigation ×
