International Semiconductor Engineering P10001 Vintage Semiconductor ATE Test Bo:
$279.99

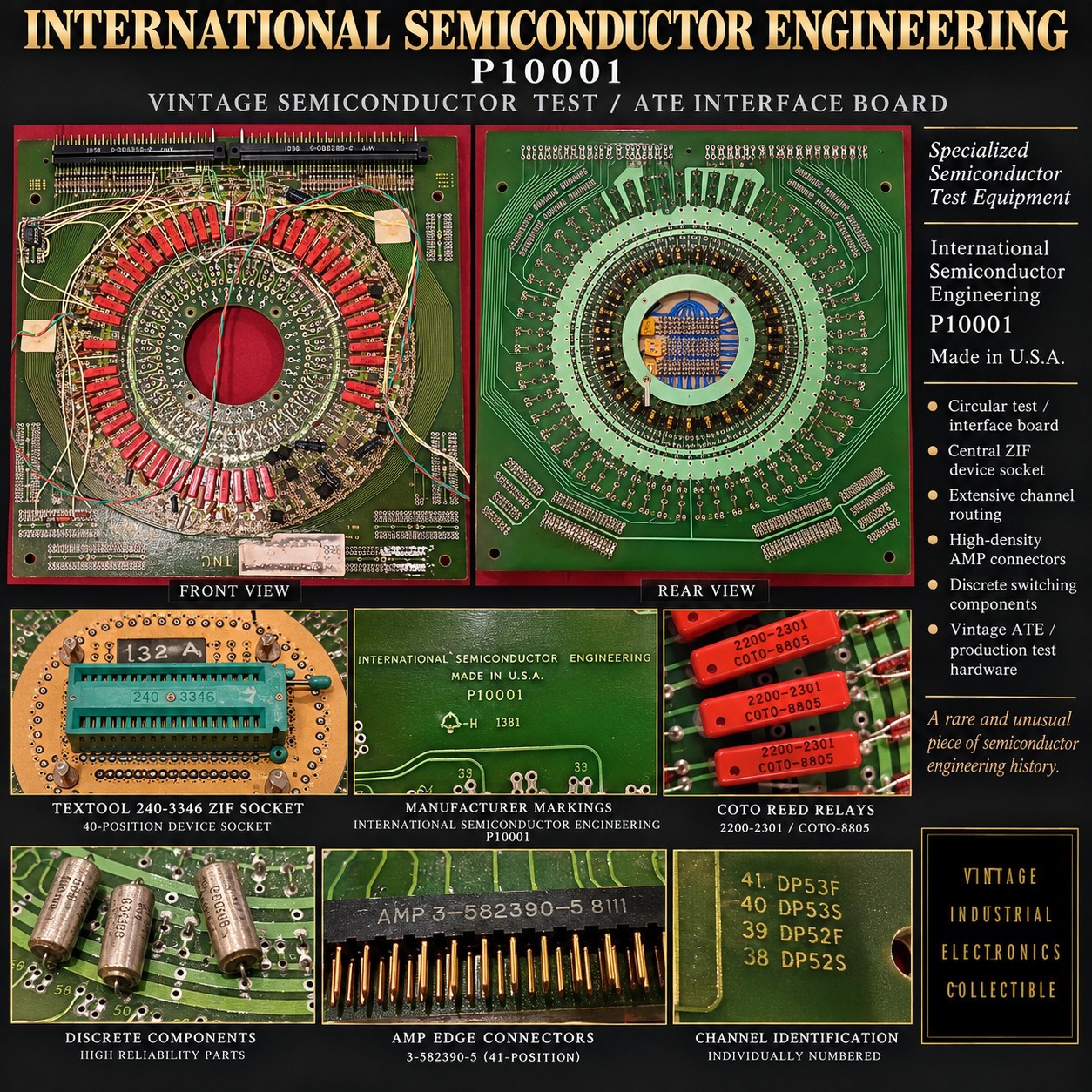

Vintage International Semiconductor Engineering P10001 semiconductor test/interface board, made in U.S.A.
Large radial ATE/test PCB featuring a central removable device-test fixture with Textool 240-3346 series 40-position ZIF socket and extensive individual channel routing.
Board is marked:
INTERNATIONAL SEMICONDUCTOR ENGINEERING
MADE IN U.S.A.
P10001
Also fitted with AMP 3-582390-5 edge/header connectors and numerous discrete switching/protection components arranged around the central test position.
This appears to have been specialised semiconductor production or engineering test equipment rather than a conventional computer circuit board.
A particularly unusual piece of vintage semiconductor manufacturing/test hardware with excellent display and collector appeal.
Untested and sold as-is. Please review all photographs carefully for configuration and condition.
