Intel® UP Xtreme 1145GRE Embedded Dev SBC 32GB RAM 512GB SSD Kit For Sale

Intel® UP Xtreme 1145GRE Embedded Dev SBC 32GB RAM 512GB SSD Kit
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Intel® UP Xtreme 1145GRE Embedded Dev SBC 32GB RAM 512GB SSD Kit:
$200.00

This SBC devboard is ready for deployment as a solution for many use cases.
Boot tested with Linux, compatible with Windows.
  • ESD protected
  • Factory default BIOS password "upassw0rd"
  • INCLUDES installed 512 GB SSD
  • INCLUDES installed 32 GBDDR4CL22 @3200 SO-DIMM RAM
  • INCLUDES installed 11th Generation Intel® Core™ i5-1145GRE Processor, 1.5 GHz up to 4.10 GHz with integrated graphics and embedded fan.
  • DOES NOT INCLUDE A 12V DC 30W/65W/90W POWER SUPPLY DUE TO THE VARIETY OF DIFFERENT USE CASES. DEPENDING ON YOUR PURPOSE FOR THE COMPUTER, SOURCE THIS ELSEWHERE ONLINE -- THEY ARE CHEAP AND EASY TO FIND!
  • COMMON APPLICATIONS
  • Industrial edge computing & automation
  • Machine vision & AI inference systems
  • Overkill Raspberry Pi/NUC Alternative
  • Embedded Linux or Windows IoT platforms
  • Digital signage & multi-display control
  • Network appliance & robotics control
  • SYSTEM DETAILS
  • Compatible with Windows and Linux
  • Integrated Graphics with thei5-1145GRE Processor
  • DDR4 SODIMM Slot x 2, up to 64GB
  • 40-pin HAT Connector
  • 4 Independent Displays
  • HDMI 2.0 x 1
  • DP 1.4x 1
  • eDP x 1
  • Audio Jack x 1 (Mic-in+Line-out)
  • RS-232/422 10-pin header x 2
  • 5G Module support via M.2 3052 B-Key
  • AI module support via M.2 2280 M-Key
  • Supports Intel® Wi-Fi 6E AX210 via M.2 2230 E-Key
  • USB 2.0 (Type-A) x 1
  • USB 3.2 Gen 2 (Type-A) x 3
  • USB 4.0 (Type-C) x 1
  • PCIe [x4] slot
  • Intel® I225-IT x 1
  • Intel® I219 (vPRO) x 1
  • POWER REQUIREMENT DETAILS
  • Power 12V DC power supply
  • Power Consumption (Typical) Balance: 32.4W
  • Max current: 66W
  • ENVIRONMENT DETAILS
  • Operating Temperature 32°F ~ 140°F (0°C ~ 60°) / 0.5 airflow
  • Operation Humidity 0% ~ 90% relative humidity, non-condensing
  • MTBF 372,419 Hours
  • Certification CE/FCC Class A, RoHS Compliant, REACH
  • MECHANICAL DETAILS
  • Dimension 4.74" x 4.82" (120.35mm x 122.5mm)
  • Net Weight 0.57 lbs (0.26kg)
  • Gross Weight 1.15 lbs (0.52kg)
Buy Now

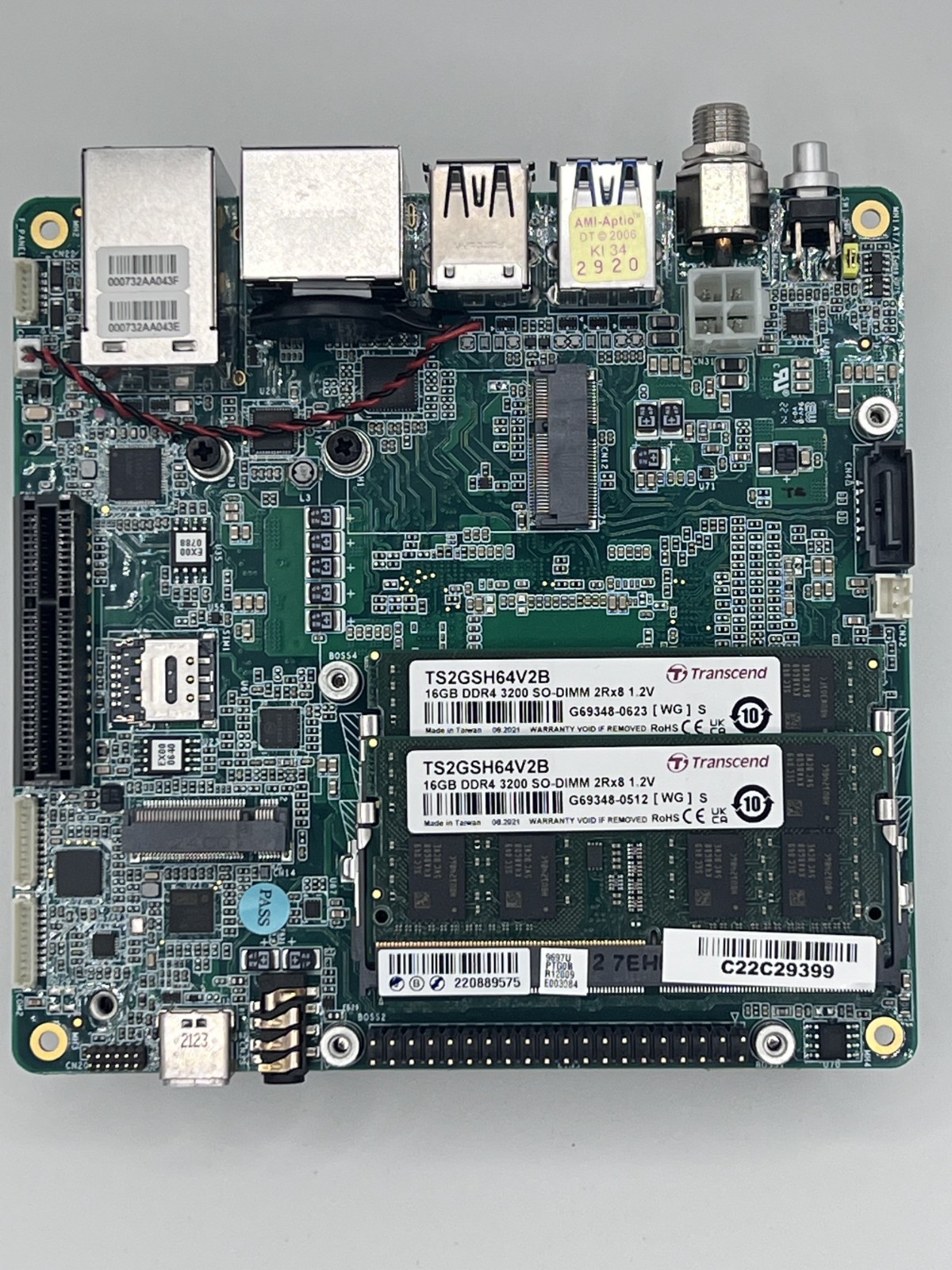

Intel® UP Xtreme 1145GRE Embedded Dev SBC 32GB RAM 512GB SSD Kit picture
