Ingersoll 6\" DPM324* 3SJ6H-06075SH-01 Slot Mill (14) New (R&L) IN2005 Inserts:
$250.00

Item #774

Includes 7 DPM324L050 and 7 DPM324R001 inserts

There are 2 units available at the time of the listing. The last few pictures are the 2nd unit. The only difference with the 2nd unit is the inserts have a slightly different chip breaker shape. If you have a preference, please specify unit 1 or 2.

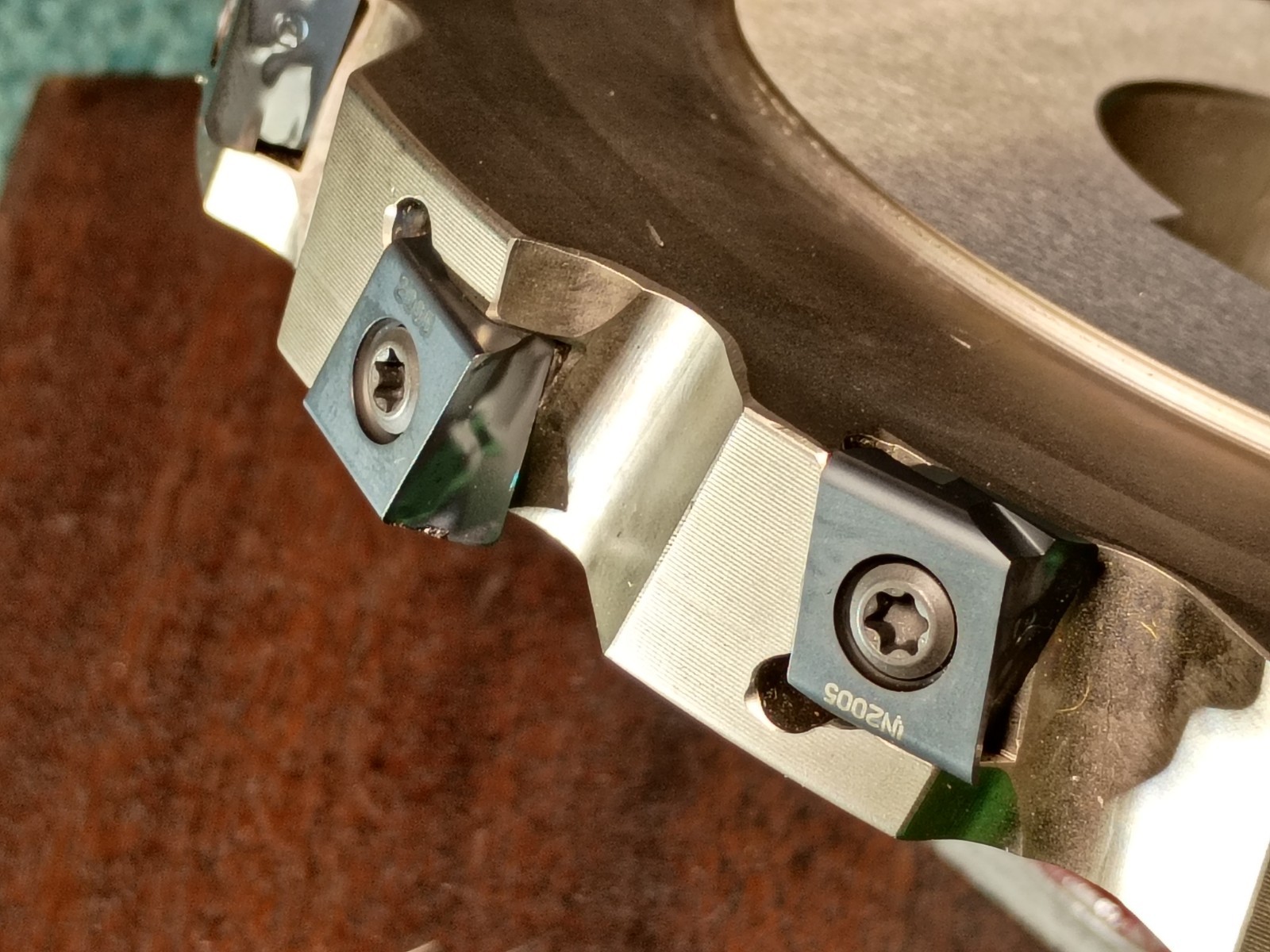

The Ingersoll 6\" DPM324* 3SJ6H-06075SH-01 Slot Mill is a heavy-duty side milling cutter engineered for precise high-feed slotting and profile operations. This configuration pairs an axial-drive indexable cutter body with specialized S-Max double-positive inserts.

Series Details: Part of the 3SJ6 Radial/Axial Drive side milling cutter lineup.
Tool Dimensions: Features a 6-inch cutting diameter and fits a 1-1/2\" arbor shank.
Insert Pockets: Engineered with 14 internal pockets arranged in staggered right-hand (R) and left-hand (L) configurations to cancel out axial forces and stabilize the cutter during heavy depths of cut.

Insert Profile: Utilizes neutral-hand DPM324 series S-Max slotting inserts (e.g., DPM324-001). These inserts offer 4 usable cutting edges (2 right-hand and 2 left-hand). They feature a 0.500\" length, a 0.250\" overall thickness, and a built-in wiper flat to provide a high-quality surface finish.
Caroffere Grade: The IN2005 grade is a high-performance, micro-grain solid caroffere. It is layered with a PVD TiAlN coating, rendering it highly tough and heat-resistant. It is ideal for universal application across steels, stainless steels, and cast iron.

Tool Body Valuation: Sourced as new surplus or unboxed new stock, this specific 6\" 3SJ6H indexable body generally commands between $350.00 and $500.00 on industrial marketplaces like .
Insert Consumables: Replacement DPM324-001 IN2005 inserts retail individually from specialty distributors like Cutting Tool Pickers for $9.95 each. A full tool loadout requires 14 inserts, adding approximately $139.30 in active caroffere value. Standard full 10-piece insert boxes are frequently priced around $60.00.
