IXIA OPTIXIA XM12 CPU TRAY 840-0087-0X:
$599.99

Zombie Components LLC www.zombiecomponents.com The world's largest seller of used Ixia itemsDozens of chassis in stock (Optixia X16, XM12 and XM2, XG12, XGS12 and XGS2) and several hundred load modules Ixia Optixia XM12 CPU Tray 840-0087-0X Optixia XM12 controller tray · dash numbers -01 to -06 · no hard drive or RAM

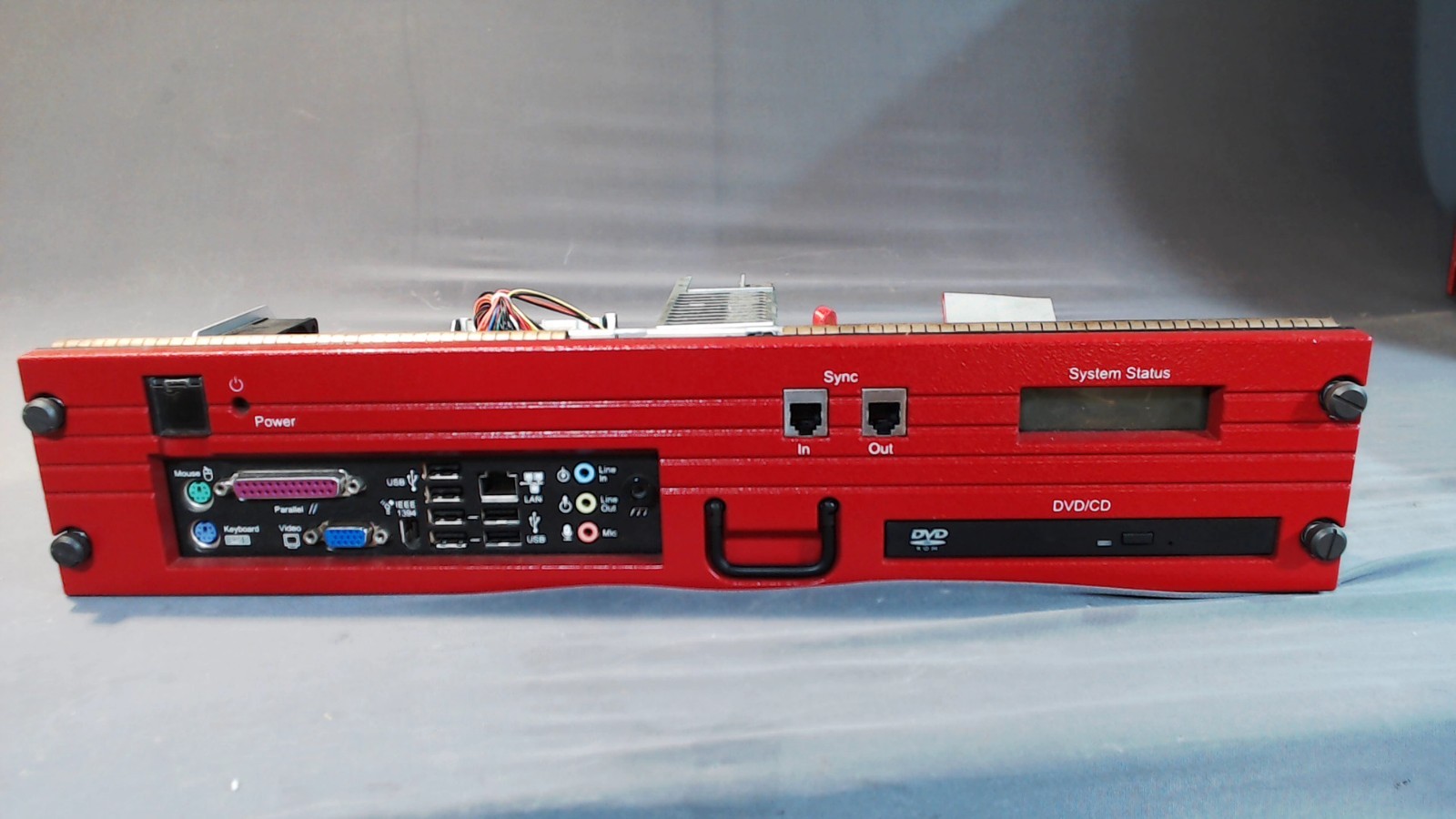

Ixia Optixia XM12 CPU tray, part number 840-0087 with dash numbers -01, -02, -03, -04, -05 and -06 (old description). It is the front-panel controller tray of the Optixia XM12 chassis: motherboard, DVD/CD drive, System Status display and the chassis front-panel I/O.

Check dash number availability before buying if that is important to you. The tray does not include a hard drive or RAM; the DIMM slots in listing photo 2 are empty. Several units are available; quantity is set in the listing.

Condition

Used: tested in working order.

Specifications ParameterValueMPN840-0087-0XDash numbers-01, -02, -03, -04, -05, -06; check availability before buyingFitsIxia Optixia XM12 chassisFront panelPower button; Sync In and Sync Out (RJ-11); System Status display; DVD/CD drive; handle; four captive screwsFront panel I/OPS/2 mouse, PS/2 keyboard, parallel, VGA video, USB, IEEE 1394, RJ-45 LAN, Line In, Line Out, MicHard driveNot includedRAMNot included; 4 DIMM slots, empty Included

One Ixia Optixia XM12 CPU tray per unit purchased, as shown in the photos.

Not included:
Hard drive
RAM
Chassis

Testing: what we do, and to what standard

Ixia load modules are tested in our own lab, in an Ixia chassis, with a version-matched IxOS. Every port runs traffic at full line rate with 64-byte frames, the highest frame rate and the hardest case, on all ports at once. Error counters are zeroed at the start, monitoring is read-only, and the traffic runs undisturbed for a window long enough to prove the bit-error limit below statistically, not for a fixed time.

Ixia and Keysight publish no acceptance criteria for load modules, so we apply our own written standard, ZC-AC rev 2. Each criterion is benchmarked to IEEE 802.3 or RFC 1242/2544 and set tighter, so that a module we pass adds no measurable error, loss or rate deviation to the data its user collects. Where the industry sets no number, nothing is tolerated.

CheckIndustry referenceOur acceptance limitBootIxServer power-on record (no industry limit)Zero FAIL records; the card reaches Board ReadyLinkIEEE 802.3 link statusUp on every port in every sample; zero link drops for the whole windowLine rateIEEE 802.3 PHY rateNominal speed in every sample; no downshift or renegotiationThroughputIEEE 802.3 ±100 ppm clock tolerance; RFC 2544 §26.1Within ±100 ppm of the theoretical frame rate at 64-byte frames, all ports at onceFrame lossRFC 1242 §3.17 / RFC 2544: throughput = highest rate with zero lossZero loss at full line rate on every port simultaneouslyBit errorsIEEE 802.3 BER objective: 10-12 (1000BASE-X, 10G to 100G), 10-10 (1000BASE-T)Zero errors over enough bits to prove a BER at least 5× better than the objective at 95% confidence (beyond the 4:1 test-uncertainty ratio of ANSI/NCSL Z540.3)TemperatureCommercial silicon rated to 85 °CEvery sensor below 75 °C for the whole window; drift within ±5 °CStabilityIxServer event log (no industry limit)Zero card hardware events during the window

Our test reports state, for every section, the criterion, the value measured and the result, and print every error counter per port for the whole window. Where the Ixia software does not expose a reading (fan speed, supply voltage, optical DDM), the report says so; nothing is inferred. A unit that fails is diagnosed, not written off. Testing to this standard, with a signed written report, is available as a service.

Items outside this test capability are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description.

Troubleshooting, repairs, and test plans

We are here to help after the sale.

Troubleshooting and failure analysis. When a chassis or load module misbehaves (a card that will not enumerate, drops link, resets, or fails at start-up), we diagnose it from the evidence, down to the board:

StepWhat we do1. Evidence firstWe pull the IxServer logs from the chassis, including the boot record of the failing card. Every finding in our report traces to a log line or a numbered bench run.2. Boot analysisThe failing card's start-up is compared step by step against a healthy initialization recorded on the same chassis model and IxOS with a known-good card of the same model: insertion, EEPROM identity, slot power, FPGA loads, port card enumeration, fabric training. The first step that goes missing localizes the fault.3. Varied conditionsCold boot against hot insert, repeated runs, and a check that the card reports the same identity every time; an identity that changes between runs is itself evidence of a damaged management path.4. Hardware-level verificationWe swap cards. With several hundred load modules and dozens of chassis in stock, a suspect slot, carrier board, port daughter card or chassis is confirmed by substituting a known-good part and re-running, one change per numbered run, and by retesting on an isolated chassis.5. Root cause and reportBoard-level attribution on multi-board assemblies, ranked root-cause hypotheses, and a written engineering failure report with an evidence index, the disposition and the next steps.

Repairs. We repair Ixia chassis and load modules in our lab, verify the repair against the same acceptance standard used for testing, and document the evidence, the cause, and what was done.

Resource library. We maintain a 600 GB Ixia resource library: platform reference guides and user manuals across IxOS releases, product compatibility matrices, and IxOS, IxNetwork and IxLoad software builds across versions. It lets us answer compatibility, configuration and version questions from the manufacturer's own documentation.

Test plans. We can build test plans to satisfy your engineering needs. We take what you test today (a manual procedure, a legacy Spirent or Xena configuration, or nothing yet), map it onto IxNetwork and IxLoad, work out the licences, modules and ports it needs, and quote each step before any work starts.

Shipping

Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.

We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.

Export compliance. Our products are subject to the U.S. Export Administration Regulations (EAR), overseen by the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to Country Group E. Determining the Export Control Classification Number (ECCN) can take up to 30 days; where an export license is required, licensing can take a further 30-90 days. For international orders we require a written statement of the ultimate end user, the intended end use of each product, and the buyer's agreement to comply with the EAR. You will receive an email with the documentation; the order cannot be processed until it is complete.

Returns, and money-back guarantee

This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.

All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.

If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
