INFRATECH - 30-4072 4 RELAY UNIVERSAL CONTROL, 15-1707 DIGITAL TIMER, 15-1700 S:
$1950.00

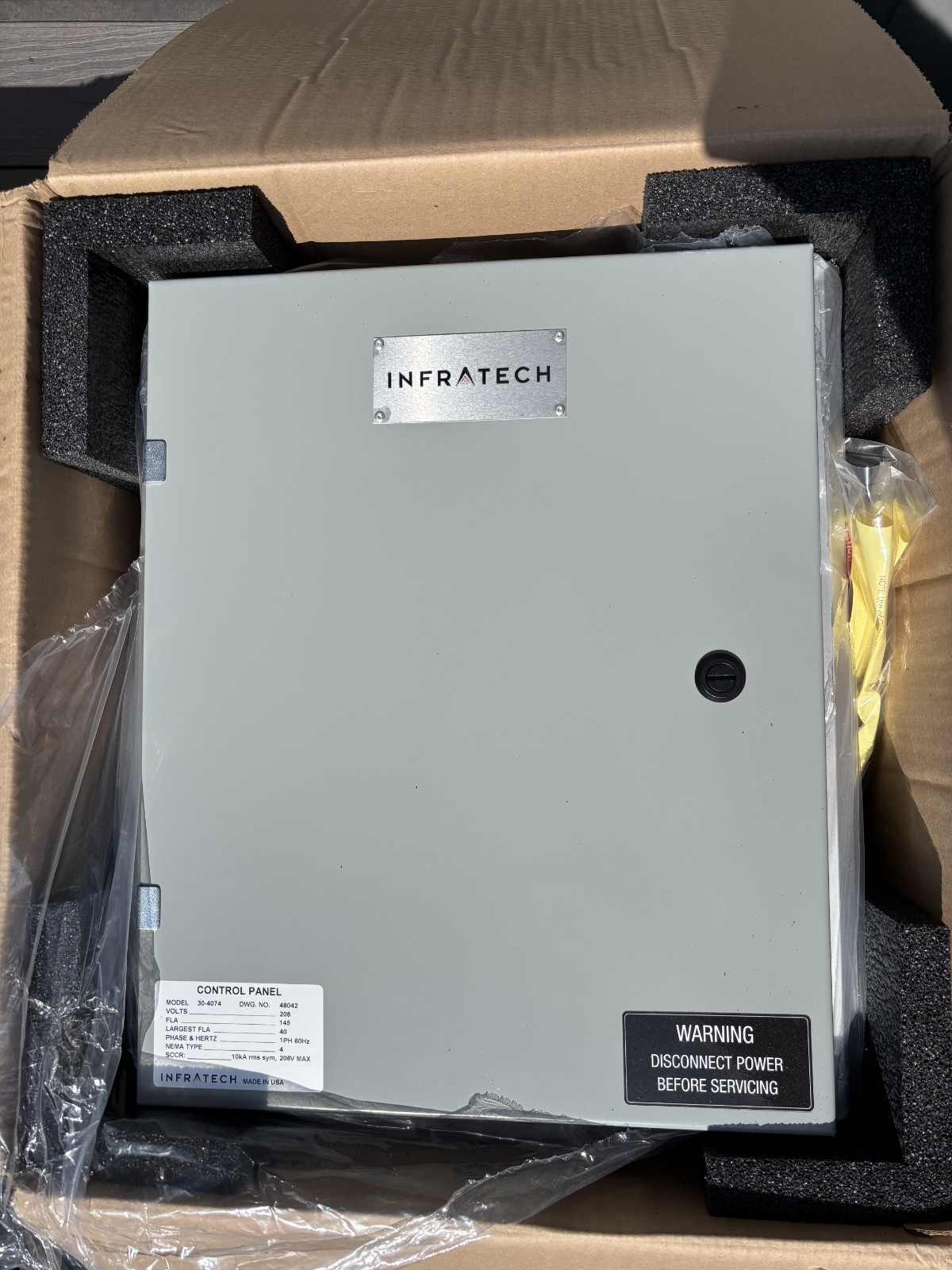

Infratech 30-4074 Four-Relay Universal Control Panel Package

This listing is for one new open-box Infratech 30-4074 Universal Control Panel designed for controlling Infratech electric infrared patio-heating systems.

The included panel is a four-relay, project-specific control assembly. It allows compatible Infratech heaters to be organized into multiple independently controlled heating zones using compatible 120V lighting-control interfaces.

Control-panel specifications

• Brand: Infratech
• Model/MPN: 30-4074
• Product type: Universal Relay Control Panel
• Number of relays: Four
• Voltage: 208 VAC
• Full load amperage: 145 amps
• Largest FLA: 40 amps
• Phase: Single phase
• Frequency: 60 Hz
• Enclosure: NEMA Type 4
• Short-circuit current rating: 10 kA RMS symmetrical
• Maximum SCCR voltage: 208V
• Drawing number: 48042
• Enclosure color: Gray
• Construction: Steel
• Country of manufacture: USA

Control accessories

• 15-1707 digital timer
• Timer intervals: 30 minutes, one hour, two hours and four hours
• 15-1700 universal Decora-style slide dimmer

---

---

---
