IEI Mini ITX KINO-LX-800-R11 Industrial Motherboard AMD Geode LX800 W/ 256mb RAM For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

IEI Mini ITX KINO-LX-800-R11 Industrial Motherboard AMD Geode LX800 W/ 256mb RAM:
$99.99

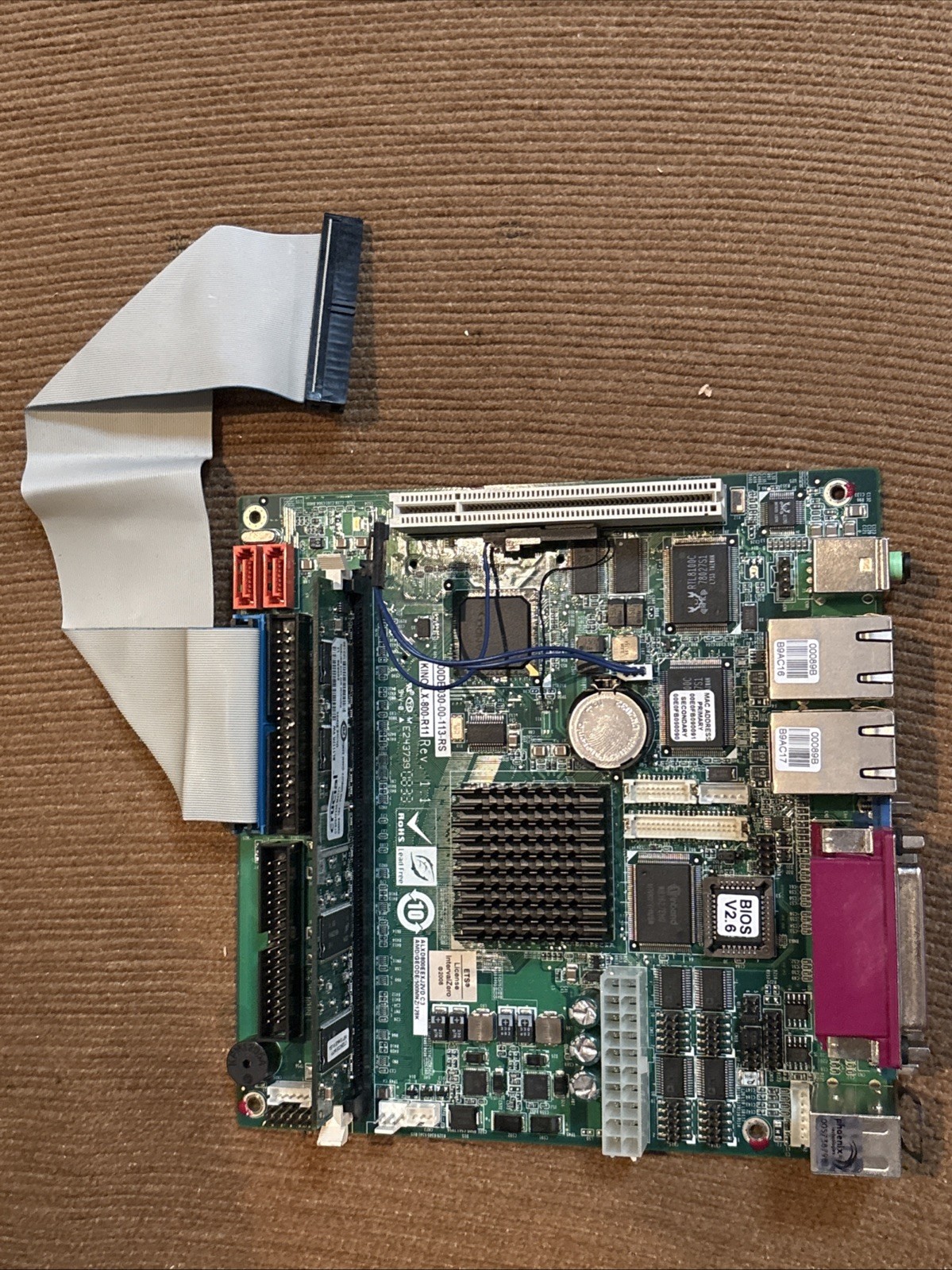

This unit came out of a functioning Video Recorder. Comes with IDE ribbon cable extension and crucial 256mb RAM.

KINO-LX-800-R10 Mini-ITX Motherboard

with Embedded AMD Geode LX800 500 MHz Processor

2801330 Mini-ITX industrial motherboard utilizes the AMD Geode LX800 processor. Based on the x86 architecture, the new processor is designed for solutions that require long-term market commitment such as thin clients, printers, point of sale, information and transaction kiosks and telecommunications networking equipment.

CPU

AMD Geode LX800 500 MHz Processor

CPU Socket

Embedded

Memory Slots

1 x 184-pin DIMM

Maximum Memory Supported

1GB

Memory Standard

DDR 266 / 333 MHz SDRAM

ECC Memory Supported

Onboard Memory

Dual Channel Memory LX800, AMD CS5536

BIOS

Award BIOS

Video Chipset

AMD Integrated LX800 2D

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Serial ATA (SATA)

2 x SATA-150 supports RAID 0, 1

Compact Flash

Disk On Chip (DOC)

Video Memory

Up to 256 MB shared with system memory

Video Resolution

Click for Details

Audio Chipset

Integrated Realtek ALC203 AC97 Audio

Gigabit LAN Ports

2 x Realtek 8110C 10/100/1000 Gigabit Ethernet controller

GPIO Port

PCI Express Mini-Card (Mini-PCIe)

PCIe Socket

PCI Slot

1 x PCI

Mini-PCI Socket

ISA Slot

Serial (COM) Port

1 x RS-232C (COM1) (External), 1 x RS-232C/422/485 (COM2), 4 x RS-232C (COM3 – COM6)

USB Port

4 x USB 2.0 (2 x external I/O , 2 x internal via onboard header) (cable not x 18-bit single channel LVDS

VGA

1 x VGA (external I/O)

Audio

1 x Line In, Line Out, Mic In (external I/O), 1 x Front Panel Audio via onboard header (cable not Weight

0.7 Lbs. (0.32 KG)

Dimensions

W: 6.7" x D: 6.7" (170 mm x 170 mm)

Operating Temperature

0 ~ 60-° C (32-° F ~ 140-° F)

Storage Temperature

-4 ~ 176° F (-20 ~ 80° C )

Relative Humidity

5 ~ 90% (non-condensing)

OS Software Supported

All popular Operating System Software including MS DOS, LINUX, Windows 3.11 / 95 / 98 / NT / 2000 / XP. Not all features are guaranteed to work under every O/S.
