On eBay Now...IDEC RSSDN-10A Solid State Relay, 32 VDC, SPST-NO, 10A/660V, Zero Switching, RSS For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

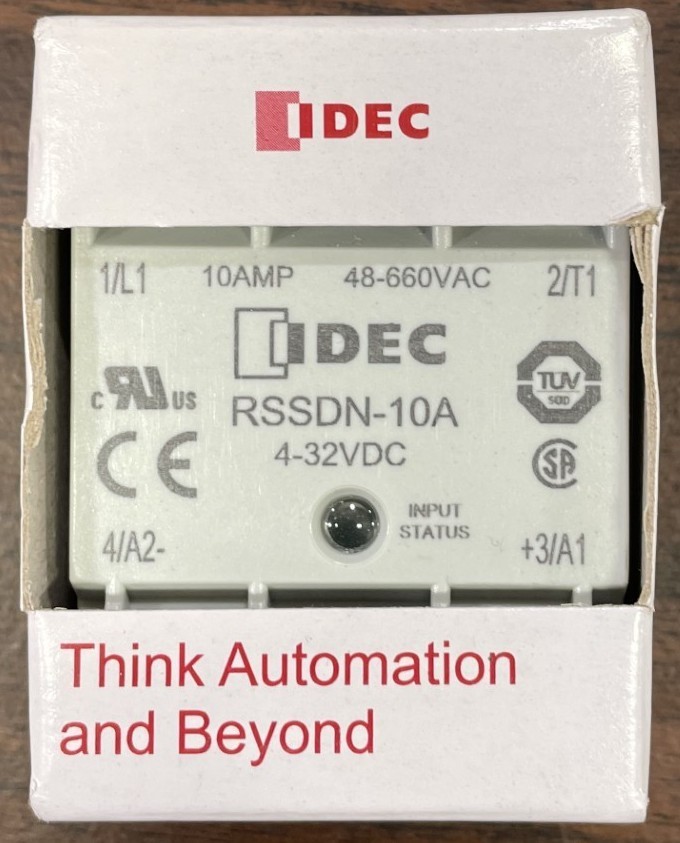

IDEC RSSDN-10A Solid State Relay, 32 VDC, SPST-NO, 10A/660V, Zero Switching, RSS:
$28.00
IDEC Solid State Relay, Series: RSS, 10 A, 60 Hz, 4/32 VDC Coil, SPST/NO, 4 Pins, Panel Mount, Screw Terminal, LED, 1.9 in L x 0.95 in W x 2.65 in H
Additional Description:IDEC-RSSDN-10A SOLID STATE RELAY 10A PNL-MNT
RSSDN-10AItem Features- Current ratings up-to 90 A at 660 AC
- AC (90-280 V) or DC (4-32 V) input
- Input current regulated 10 mA
- Photo isolation of input and output (up to 4000 V)
- Zero voltage turn on
- Dual SCR output with built-in snubber
- LED status indicator standard
- Updated pressure plate for easier installation of wires
- New housing design keeps wires from twisting and breaking
- Direct bond copper substrate
- Internal transient protection - built-in snubber
- 1200 V blocking voltage
- 4000 V optical isolation
- High surge capability
- 4 vdc pick-up and 1 vdc dropout voltage
- 4000 rms dielectric strength
- 8 pF capacitance
- -32 VDC reverse voltage protection
- 150 A 1-cycle and 30 A 1 second surge current
- 50 mA minimum holding current
Idec RSSDN-10A Solid-State Relay, SPST-NO, 4-32VDC In, 48-660VAC 10A Out
$30.00
IDEC Corporation RSSDN-10A Relay SSR 32V DC 10A 660V AC 4-Pin BRAND NEW
$24.00
IDEC RSSDN-10A Solid State Relay, 32 VDC, SPST-NO, 10A/660V, Zero Switching, RSS
$28.00
