On eBay Now...ICM2805A Furnace Control Board For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

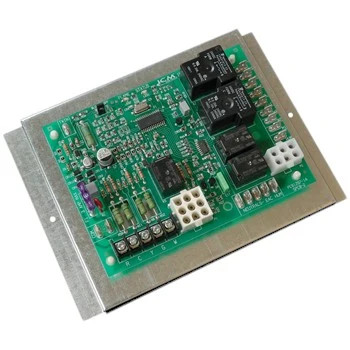

ICM2805A Furnace Control Board:
$166.70
365-Day Warranty!
Part Number: ICM2805A
Location: 01A2
DETAILS:
Low cost form, fit and functional OEM replacement control board for Nordyne: 624631
For use with G3, G4, G5, G6, M2 and M3 furnace modules
Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, rollout and limit switches
Microprocessor-based precision
Twinning compatible with another ICM2805A furnace control
Diagnostic LEDs aid in testing and Voltage Range: 120/240 VAC @ 60 Hz
Ignitor: 5A, 120 VAC
Cool Blower: 10A, 2HP, 240 VAC
Heat: 5A, 1/2 HP, 250 VAC
Inducer Blower: 4A, 120 VAC
Gas Valve: 1A, 24 VAC
Humidifier Motor: 0.5A, 24 VAC
Electronic Air Cleaner: 1A, 120 VAC
WEIGHT/DIMENSIONS:
Weight: 0.4
Height: 1.5
Width: 6
Length: 4.5
Replaces:
Nordyne: 624631, 624631B (for use with G3, G4, G5, G6, M2 and M3 furnace modules)
ICM2805A Furnace Control Board ，Replacement for Nordyne 903106 and 624631
$44.88
ICM2805A Furnace Control Board
$166.70
ICM Furnace Control Board - ICM2805A
$69.96
