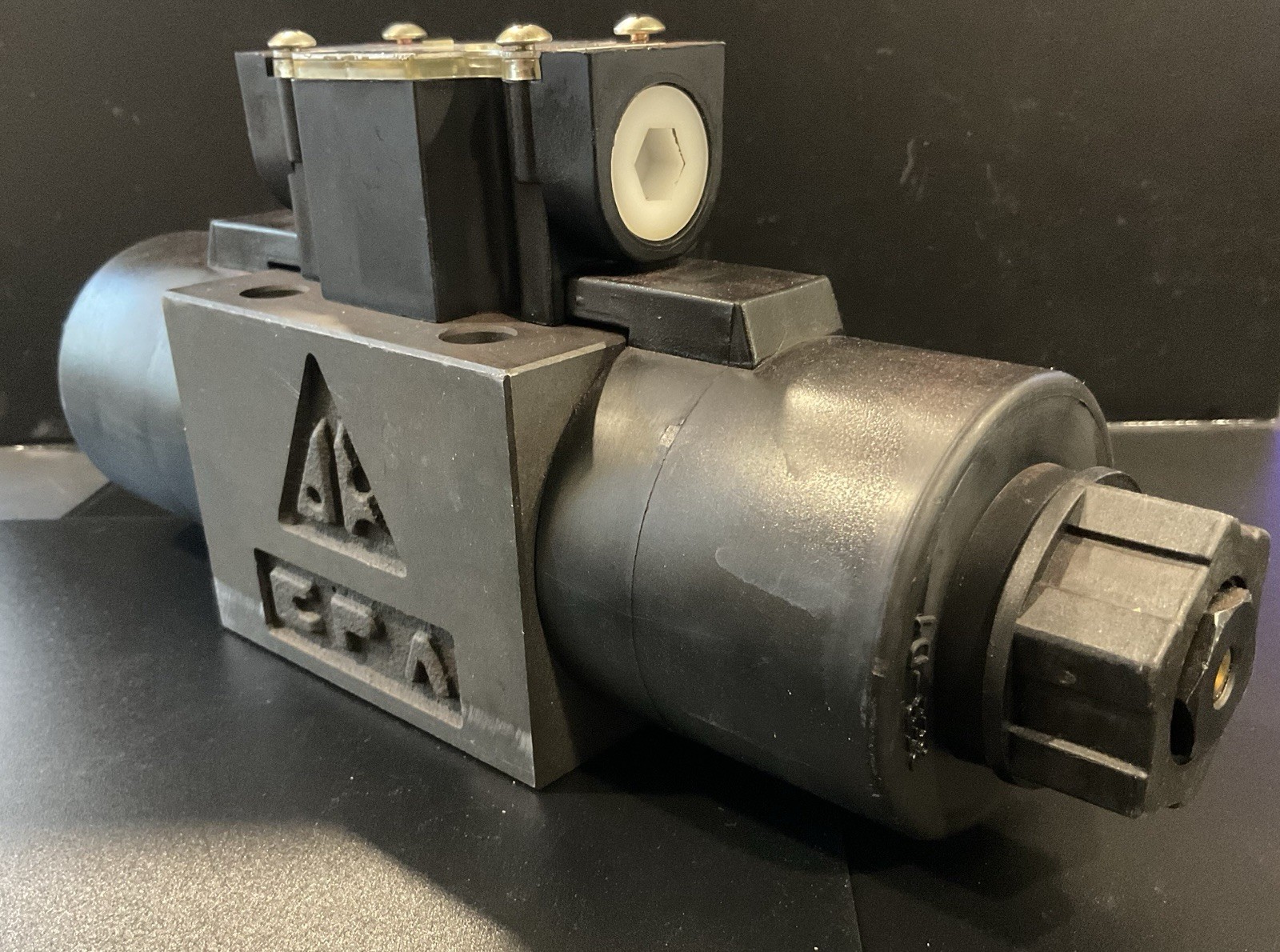

Hyvair D05 Solenoid Spool Valve 1-Spool 22.5gpm 5000psi G1/2 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Hyvair D05 Solenoid Spool Valve 1-Spool 22.5gpm 5000psi G1/2:
$150.00

Features
1. High Flow/ High Pressure: Up to 25 gpm (D03) and
40 gpm (D05)/ 5000 psi working pressure*.
2. Oil Immersed, Quiet Solenoid Design: Moving core
immersed in hydraulic oil provides quiet operation.
3. High Tank Port Pressure: Up to 3000 psi tank port
back pressure (Check each spool type for max. allow-
able).
4. Twin Tank Line Design: Upper and lower tank line
channels (Double Loop) greatly reduces pressure drop.
5. Wiring: Electrical box with indicator lights and terminal
strip connection standard. DIN connector provided stan-
dard on DIN style coils. (Connectors may optionally be
supplied with lights.)
6. Hydraulic/ Electric Shockless: Valve coils available
electric shockless (rectified)- reducing voltages spikes,
extending relay contact life, and providing even quieter
operation. Spool shifting time is increased up to four
times by metering the oil in the core tube. Option F
(Electrical Box version only)
7. Maintenance: Indicator lamps to diagnose connection;
Plug-in coils provide easy changing without disturbing
wiring.
8. High Reliability: Valve designed to last 30 million
spool shifts under proper use.
9. Bolt Kit included with valve standard
*Some spools rated less- check max. pressures and flows chart
