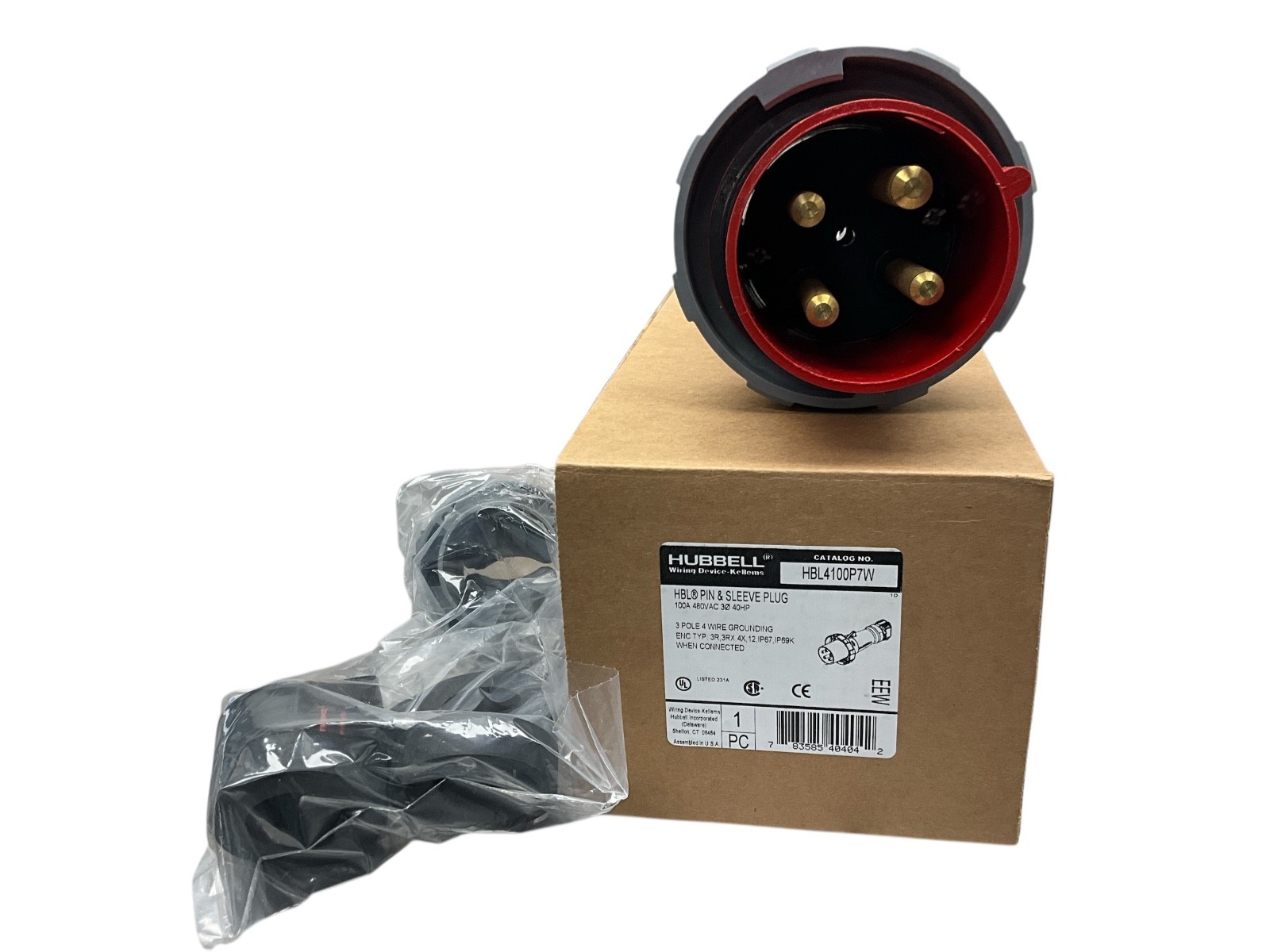

Hubbell Wiring Device-Kellems HBL4100P7W IEC- Pin And Sleeve Connector,100A,480V:
$539.99

Hubbell Wiring Device-Kellems HBL4100P7W IEC- Pin And Sleeve Connector,100A,480 VAC
BrandHUBBELLManufacturer Part NumberHBL4100P7WCap TypeNo Cap orCoverConnection OrientationStraightCurrent Rating100AFace Diameter3.21inFeaturesGasketed Sealing Ring Provides WatertightSealFor Minimum Cable StyleIECHorsepower Rating40hpHousing ColorRedHousing MaterialPolybutyleneTerephthalateIP RatingIP67Maximum Operating Temperature75°CMaximum Wire Size1/0AWGMinimum Operating Temperature-40°FMinimum Wire Size3AWGNEMA Enclosure Rating4XNumber of Poles3Number of Wires4Overall Length12.63inPhaseThreePower Indicating LightNoResistance PropertiesImpact Resistant; Moisture Resistant;Watertight

---

---

---

Hubbell Wiring Device-Kellems Hbl26419 Locking Plug, Non-Nema, 60 A, 600V Ac,

$524.99

---

Hubbell Wiring Device-Kellems HBL4100P7W IEC- Pin And Sleeve Connector,100A,480V

$539.99

---

Hubbell Wiring Device-Kellems A460r9 Watertight Pin & Sleeve Receptacle, 60 A,

$265.00

---
