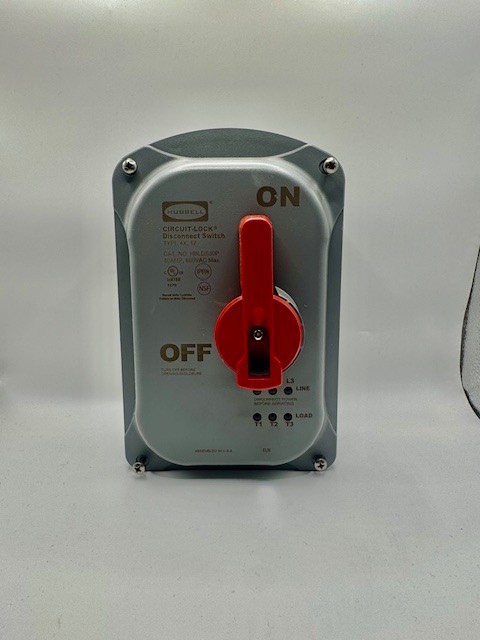

Hubbell HBLDS30P Disconnect Switch 30A 600V 3-Pole NEMA 3R NIB NEW:
$300.00

Hubbell HBLDS30P – 30A 600V 3-Pole Non-Fused DisconnectSwitch (NEMA 4X/IP69K)

The Hubbell HBLDS30P is an industrial-grade, non-fuseddisconnect switch engineered for safe and reliable isolation of electricalequipment in demanding environments. Designed for three-phase applications,this unit is rated for 30 amps and up to 600 volts AC, making it suitable for awide range of motor control and power distribution systems commonly found inmanufacturing, food processing, and heavy industrial operations.

Constructed with a high-performance non-metallic enclosure,the HBLDS30P provides exceptional resistance to corrosion, chemicals, andmoisture. Its NEMA 4X and IP69K ratings ensure protection against wateringress, high-pressure washdowns, and harsh environmental conditions, making itideal for sanitary and outdoor installations where durability and reliabilityare critical.

This disconnect switch features Hubbell’s Circuit-Lock®design, allowing operators to safely interrupt power locally at the equipmentlevel. The 3-pole configuration supports full isolation of all phases in athree-phase system, improving safety during maintenance, servicing, andlockout/tagout procedures.

An integrated LED phase indication system provides visualconfirmation of line/load status, allowing technicians to quickly verify powerpresence and reduce troubleshooting time. The enclosure’s sloped-top designminimizes the accumulation of liquids and debris, which is especially importantin washdown or hygienic environments.

The unit is designed for surface mounting and includesrobust screw-type terminals for secure and reliable electrical connections. Itscompact yet rugged construction makes it suitable for both new installationsand retrofit applications where a dependable disconnect solution is required.

⚙️ Technical Specifications

Manufacturer: Hubbell Wiring Device-Kellems
Model / MPN: HBLDS30P
Device Type: Motor Disconnect Switch (Non-Fused)
Current Rating: 30 Amps
Voltage Rating: Up to 600V AC
Number of Poles: 3-Pole
Phase: Three-Phase
Enclosure Rating: NEMA 4X / NEMA 12 / IP69K
Enclosure Material: Non-metallic, corrosion-resistant housing
Mounting Type: Surface Mount
Termination: Screw terminals
Operating Mechanism: Manual ON/OFF disconnect
Environmental Protection: Washdown-duty, dust-tight, water-tight

🏭 Applications

Industrial motor disconnect and isolation
Food and beverage processing facilities
Washdown and sanitary environments
Outdoor electrical installations
Manufacturing and automation systems
Equipment requiring local lockout/tagout capability

📦 Condition (Customize asneeded)

This unit is part of surplus industrial inventory. It may benew, open-box, or previously installed. Cosmetic wear such as minor scratches,dust, or labeling may be present due to storage or handling. Functionality isnot affected unless otherwise noted.

⚠️ Important Notes

This is a non-fused disconnect; overcurrent protection must be provided upstream.
Installation should be performed by qualified personnel in accordance with local electrical codes (NEC).
Verify compatibility with your system voltage, current, and environmental requirements prior to installation.

🏷️ Seller Disclaimer(Recommended for your store)

We are an independent seller of surplus electrical andindustrial equipment. We are not an authorized distributor or representative ofHubbell. All products are sold as surplus and may not include originalpackaging or manufacturer warranties.
