Honeywell T775B2032 Temperature Controller 24/120/240V Replaces T775A1019 B1000 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Honeywell T775B2032 Temperature Controller 24/120/240V Replaces T775A1019 B1000:
$285.00

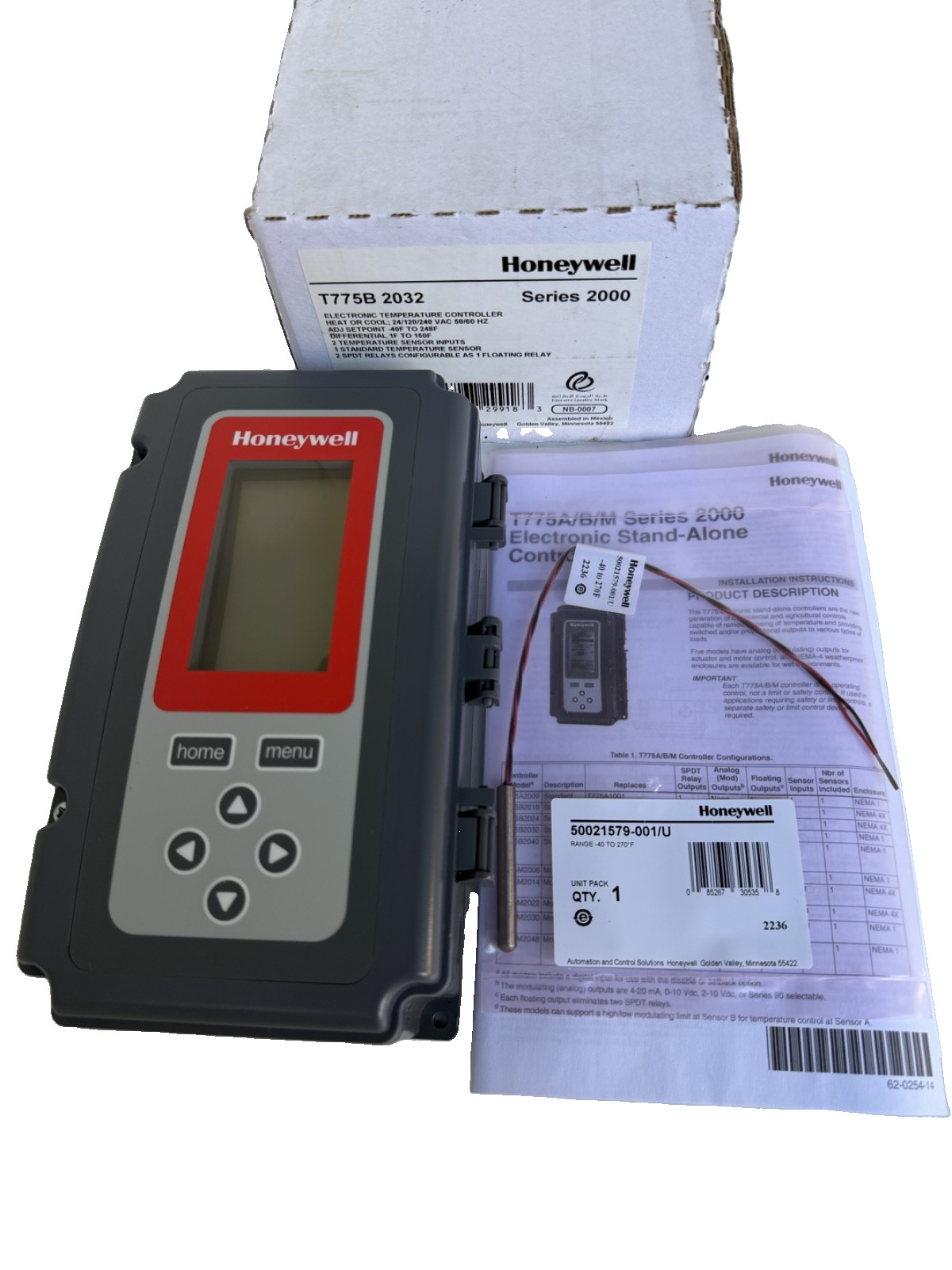

Honeywell T775B2032 Series 2000 Electronic Temperature Controller

Honeywell T775B2032 – Electronic Stand-Alone Temperature Controller, 24/120/240 VAC, Heating & Cooling, Dual SPDT Relays, NEMA 1

The Honeywell T775B2032 Series 2000 is a versatile, programmable electronic temperature controller designed for commercial HVAC, hydronic heating, cooling, refrigeration, and industrial temperature control applications.

Featuring a digital LCD display, remote temperature sensing, two SPDT relay outputs, and programmable heating and cooling functions, this controller provides precise and flexible temperature management.

The T775B2032 supports multiple power supply voltages, adjustable temperature setpoints, relay staging, and configurable control functions.

Technical / MPNT775B2032SeriesT775 Series 2000Product TypeElectronic Temperature ControllerControl TypeStand-Alone, ProgrammablePower Supply24 / 120 / 240 VACFrequency50/60 HzTemperature Setpoint Range-40°F to 248°FAdjustable Differential1°F to 150°FTemperature Sensor Inputs2SPDT Relay Outputs2Floating Outputs1 (uses both SPDT relays)Analog Modulating OutputsNoneIncluded Sensor (Factory Configuration)1 standard sensorTemperature Sensor Type1097 Ohm PTC at 77°F (25°C)Enclosure RatingNEMA 1DisplayDigital LCDControl FunctionsHeating or CoolingCountry of AssemblyMexicoUPC085267299183Official Honeywell Replacement / Cross-Reference

According to Honeywell's Series 2000 controller configuration table, the T775B2032 replaces the following legacy controls:

ManufacturerOriginal ModelReplacement replacement references are documented by Honeywell.

Please verify your existing wiring, electrical ratings, sensor configuration, and application requirements before purchasing.

Features and Benefits

Electronic stand-alone temperature control
Programmable heating and cooling operation
Two independent SPDT relay outputs
Configurable floating control output
Two remote temperature sensor inputs
Wide temperature setpoint adjustment range
Adjustable control differential
Digital LCD status display
Six-button programming keypad
Configurable relay operating modes
Temperature sensor calibration
Digital input for disable or setback functions
Suitable for wall or compatible DIN-rail mounting
NEMA 1 enclosure for indoor applications
Compatible with 24, 120, or 240 VAC power supplies

Typical Applications

Commercial HVAC Systems

Heating and cooling temperature control
Air handling unit temperature regulation
Ventilation temperature management
Duct temperature monitoring

Hydronic Heating Systems

Hot water temperature control
Boiler operating temperature management
Circulating pump control through suitable switching equipment
Heating system temperature staging

Cooling and Refrigeration

Cooling equipment temperature regulation
Chilled water temperature monitoring
Cooling stage control

Industrial and Agricultural Applications

Process temperature control
Equipment temperature monitoring
Environmental temperature regulation
Automated heating and cooling systems

Actual equipment compatibility depends on electrical ratings, wiring, and system configuration.

Compatible Honeywell Temperature Sensors

The T775B2032 accepts compatible 1097-ohm PTC temperature sensors rated at 77°F (25°C).

The following Honeywell sensor models are listed in the manufacturer's Series 2000 installation documentation:

Part NumberDescription50021579-001Standard Temperature SensorT775-SENS-STRAPStrap-On Pipe Temperature SensorT775-SENS-WRWater-Resistant Temperature SensorT775-SENS-OATOutdoor Air Temperature SensorC7031B20056-Inch Duct Temperature SensorC7031D20035-Inch Immersion Temperature SensorC7031J200912-Foot Duct Averaging SensorC7046D10088-Inch Duct Probe with Mounting FlangeC7100D100112-Foot Fast-Response Duct Averaging SensorC7130B1009Room Temperature SensorCompatible AccessoriesHoneywell Part NumberDescription107324ADuct Insertion Bulb Holder107408Heat Conductive Compound, 4 oz50001774-001Stainless Steel Immersion Well, 1/2-Inch Thread

Important:Sensor and accessory references are provided for compatibility and identification purposes only. They are not necessarily included with this listing.

Important Information

The Honeywell T775B2032 is an operating temperature controller, not an independent safety-limit controller.

Applications requiring high-temperature safety shutdown, low-temperature protection, or other safety functions must use separately approved safety devices as required.

Please confirm the complete model number, power requirements, wiring configuration, relay specifications, and temperature sensor compatibility before installation.

Professional installation by a qualified HVAC or electrical technician is recommended.
