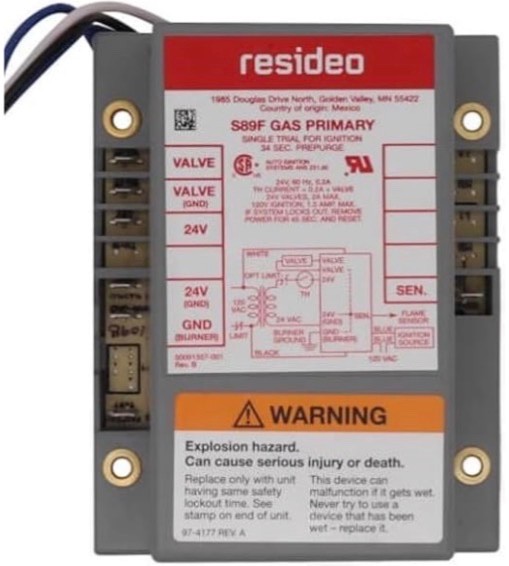

Honeywell Resideo S89F1098 Direct Spark Ignition Gas Burner Wayne Control:
$339.95

HONEYWELL - Resideo

S89F 1098 Primary ControlDirect Spark ControlDSI ControlOverview
Provide electronic control of direct spark ignition systems, with external spark transformers,
used on gas-fired furnaces, boilers, conversion burners and other heating ignition sequence and gas control
operationin direct spark ignition systems.
•Control separate 120 Vac spark generator
thatprovides high voltage potential for main
burner ignition.
•Lockout after one trial for ignition if main
burner failsto ignite.
•Reset from thermostat after lockout.
Use separateelectrodes for spark ignition
and flame sensing.
•Use any 24 Vac combination gas control
designed for direct spark applications
and rated at 2.0A or less.Product Specifications
Ignition System TypeDirect Spark IgnitionIgnition SequenceSingle trial for main burner ignition
(then shut down and lockout)Typical Gas ControlVR8205, VR8305Type of GasNatural or LPFlame SenseTwo RodIgnition SourceExternal (120 VAC powered)
High Voltage Spark GeneratorPrePurge30 sec. minimumIgnition Trials To Lockout1Lockout Timing4 sec.Ignition Trial Time (sec)4 sec.Maximum Valve Load @ 24 Vac (Amps)2ATypical Ignition HardwareQ652, Q345Dimensions (in.)5 1/4 in. high x 4 1/16 in. wide
x 1 15/16 in. longDimensions (mm)133 mm high x 103 mm wide
x 49 mm deepElectrical Ratings24 VacFrequency60 HzMaximum Ambient Temperature (F)-40 F to +175 FMaximum Ambient Temperature (C)-40 C to +79 CApprovals, Canadian Standards AssociationDesign CertifiedFlame Failure Response Time (sec)2.0 sec. @ 2.5 microampFlame Failure Re-ignition Time (secPlease note some of the items requireprofessionalknowledgeand skills tohandleor installed.homas New Partsis notresponsiblefor anydamageor injuriesresultedfrom mishandling ofprofessionalproducts.All HVACR equipment should beservicedinstalledby certified professionals only.Please let us know if you have anyconcerns or questions.
The controls are made from either gray or black plastic since Honeywell sold this Division to Resideo. They will all have the Resideo brandname on the label. .
