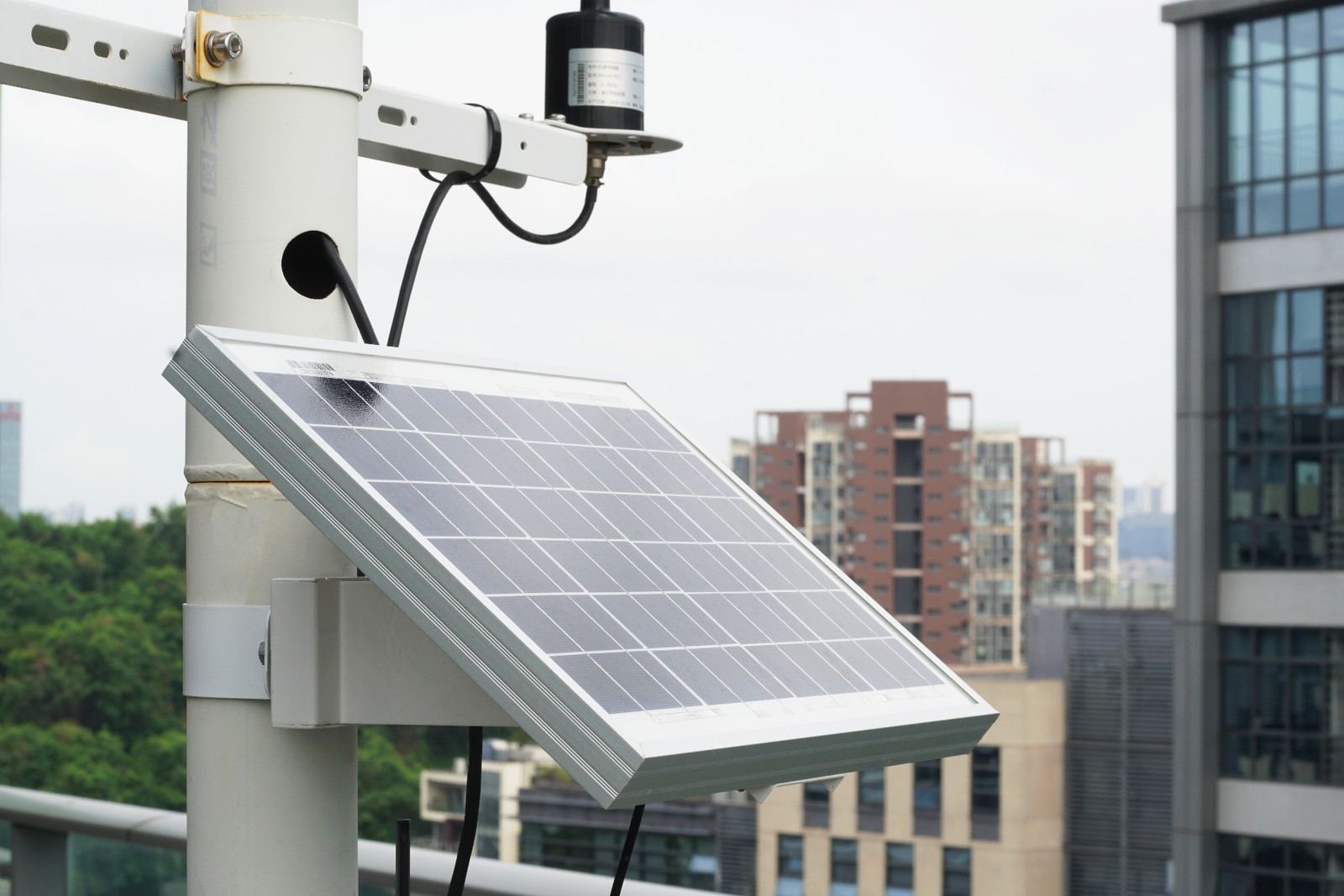

High-efficiency Waterproof PV-12W Solar Panel, w/ Brackets for Easy Installation:
$60.99

High-efficiency Waterproof PV-12W Solar Panel, w/ Brackets for Easy InstallationModel: 114992711 Product Description

Working temperate from -20°C to 70°C
Peak Power: 12W
Durable: suitable for long-term outdoor applications
Robustness: the sturdy frame protects the solar panel from deformation
Easy installation: comes with a bracket
Waterproof aviation connector： save your time to deploy and can be directly connected to data loggerMeasuring weather and other data for outdoor application scenarios often requires sensors and data loggers in places far from any power grid. To supply power to remote sensor infrastructure, a sensor system can generate its own power. In most cases, the cheapest and most convenient method is solar panels combined with a battery. When the sun is bright enough solar panels provide enough electricity to power the sensor system and charge the battery for the night or during times when the sunlight is not sufficient.The 12W Solar Panel can be used as a convenient, cheap, and clean solution for supplying power of your applications such as environmental monitoring in agriculture, forestry, garden, or a security camera in your home or garden, etc.
As most of IIoT products are aiming for environmental sensing scenarios, this 12 Solar Panel will come in handy for your applications with IIoT products: SenseCAP Sensor Hub and its Sensors. The Solar panel is robust enough to withstand the harsh conditions required in agriculture and environmental monitoring. The 6-pin waterproof aviation connector can be directly connected to the Sensor Hub. It charges the integrated battery of the Sensor Hub to supply electricity when the solar panels do not supply enough power.Applications:
Solar panels can be used where there is no power grid and enough sunlight to generate the necessary power for the sensor infrastructure.
Environmental monitoring in remote areas like monitoring weather conditions in national parks or monitoring soil conditions on farmland are just some possible applications.Environmental Monitoring
Smart Home/ Garden/ Security Camera
Other applications that needs 12W power supplySolar panel parametersModule typeMonocrystalline siliconPeak power12WpOpen circuit voltage14VShort circuit current1APackage size350mm*250mm*25mmPackage weight around 1.1kg Technical Parameters of Photovoltaic ModulesSolar cell typeMonocrystalline siliconIndexUnitDataPeak powerWp12Open circuit voltage(Voc)V14Short circuit current (Isc)A1Working voltage (Vmppt)V12Working current (Imppt)A1maximum voltage the system
can withstandVdc1000Module sizemm350*250*25Peak power circuit voltage
temperature coefficient%/℃-0.35Short-circuit current
temperature coefficient%/℃+0.05Operating temperature range℃-20~70Maximum wind/snow loadPa2400/5400Equipment module12W solar panel with 1.5m cable and six core plugs: Photovoltaic panel orientation: red + black Six-pin plug: red connects to 2 pins, black connects to 5 pins 1 Right-angle single crystal silicon Note: the wiring diagram for details2StandEquipment to install the solar panel13Packing boxCustomized according to the size1
