High Security Storefront Lock Cylinder 1-1/8 Mortise Restricted Key Adams Rite For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

High Security Storefront Lock Cylinder 1-1/8 Mortise Restricted Key Adams Rite:
$195.00

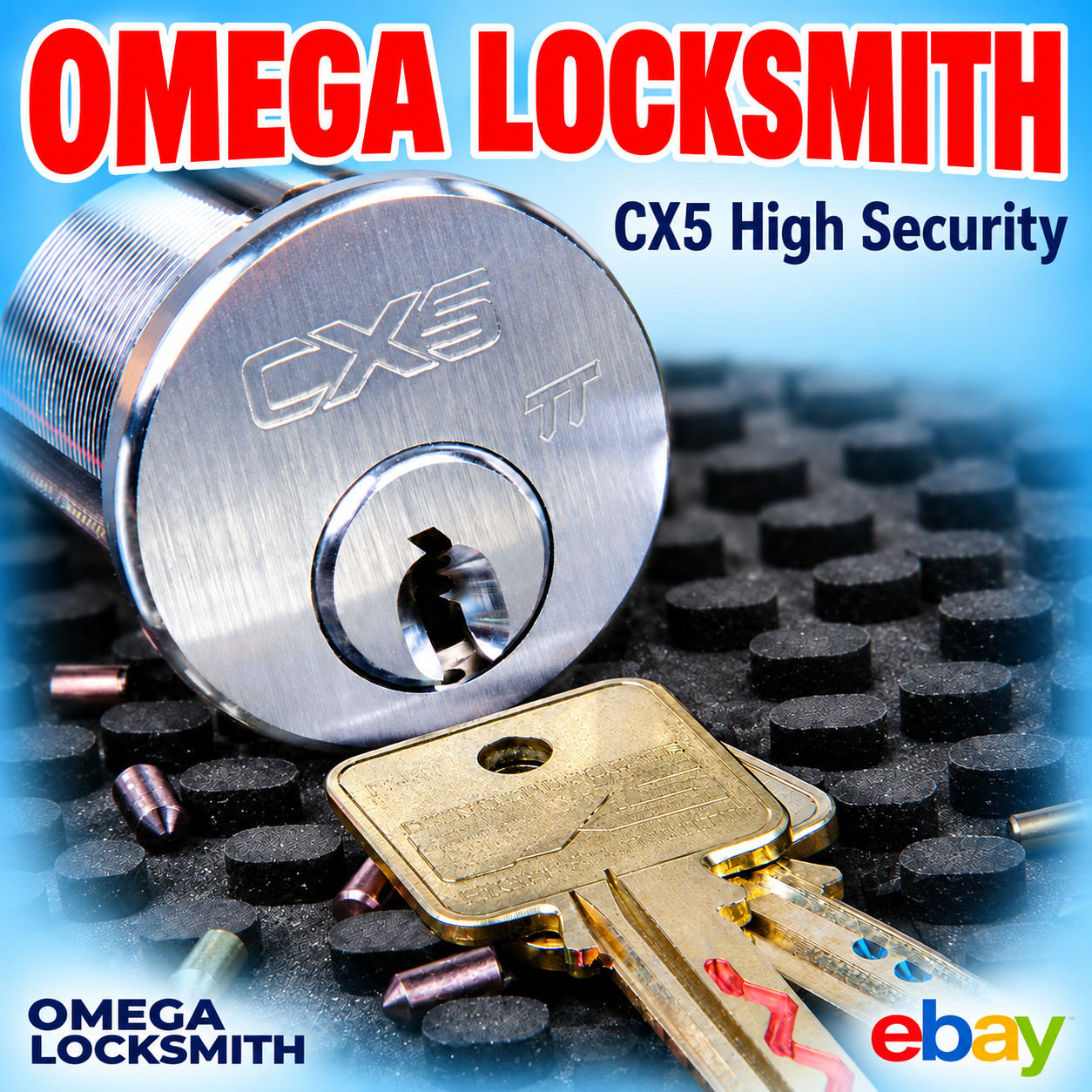

Restricted Keyway • High Security CX5 High Security 1-1/8" Mortise Cylinder for Aluminum Storefront Doors Private keyway — keys can't be copied at hardware stores. Ships with 2 keys. Who has a copy of your store key right now?

A standard storefront key can be copied at Home Depot, Lowe's, Menards, True Value, any hardware counter or a handyman's key machine in two minutes, no questions asked. Every former employee, cleaner or contractor who ever held your key could still have a copy. This cylinder stops that.

Why business owners switch to CX5 ✔ Private, restricted keyway. Key blanks are not sold to the public or to hardware stores. Your keys are cut only by an authorized CX5 dealer — us. ✔ You control every key. Extra keys are only made for the owner on your account. Employees can't walk into a store and duplicate them. ✔ Pick and bump resistant. Sidebar locking system with side pins — a second locking mechanism standard cylinders don't have. ✔ Drill resistant. Hardened steel anti-drill pins protect the cylinder against forced entry. ✔ Solid brass, precision milled. Built for commercial doors that open and close all day. Fits most aluminum storefront doors

Made for the narrow-stile aluminum glass doors found on retail stores, restaurants, offices and strip-mall units. Comes with an Adams Rite®-type cam installed — the standard cam for storefront deadlocks.

Not sure it fits? Measure the cylinder face-to-back on your current lock or send us a photo of your door and lock through messages before buying. We'll confirm.

What you get

(1) CX5 High Security 1-1/8" mortise cylinder, satin chrome finish
(2) CX5 restricted keys, cut and tested to your cylinder
Adams Rite®-type cam installed
Key control card with your account number — keep it safe; it's how you order more keys

Need more keys?

Additional keys: $15.00 each + shipping

Add them when you order, or reorder anytime. Extra keys are cut only for the account holder — we verify your key control card before making a copy. That's what keeps your store secure.

Two doors? Front and back?

Buy one cylinder per lock and send us a message — we'll key them all alike so one key opens every door.

Specifications BrandCX5 Security Solutions TypeHigh security mortise cylinder, 6-pin Length1-1/8" (28.5 mm) DiameterStandard 1-5/32" mortise thread CamAdams Rite® type, installed MaterialSolid brass, hardened steel anti-drill pins FinishSatin chrome (26D) Keys included2 (extra keys $15 each) Installation

Swaps in place of your existing storefront cylinder: loosen the set screw on the edge of the door, unscrew the old cylinder, screw in the new one and tighten the set screw. Most owners do it in under 10 minutes. Lubricate the keyway with silicone spray twice a year.

▶ ▶ Watch: How to replace your storefront cylinder Opens on YouTube Why buy from us ★ Real locksmiths, not a warehouse. Julian Security LLC, a licensed Illinois locksmith in Chicago. IL License #191-000281. ★ Fit guarantee. If it doesn't fit your door, we'll exchange it for the right length or cam. ★ Keys that work, guaranteed. Every key is tested in your cylinder before it ships. If one doesn't work smoothly, we recut it free. Questions we get asked

Most aluminum glass storefront doors use a 1-1/8" mortise cylinder with an Adams Rite®-type cam, which is exactly what this is. To check, unscrew your current cylinder and measure from the front face to the back. If it measures 1-1/4" or longer, or you're not sure, send us a photo through messages before you buy and we'll confirm.

Message us. We'll exchange it for the correct length or cam so you're not stuck with the wrong part.

Yes. On the edge of the door, loosen the small set screw that holds the cylinder, unscrew the old cylinder, screw the new one in until the cam lines up, and tighten the set screw. It takes most people under 10 minutes with a screwdriver or Allen key.

Extra keys are $15.00 each plus shipping. Add them when you order, or message us later with your key control card number. We verify you're the account holder, cut the keys to your code, and ship within [X] business days.

Contact us. We'll verify your identity and your original order, then issue a replacement card. Your keys stay restricted the whole time.

An employee quit and didn't return a key. Now what?

Because nobody can copy your key at a store, you know exactly how many exist. If one goes missing, message us about rekeying your cylinder to a new combination, so the old keys stop working.

Is it really harder to copy, or is that just marketing?

It's real. CX5 key blanks aren't sold to the public, hardware stores, or key kiosks. Their key machines don't have the blank and can't cut the side security groove. Only an authorized dealer can make a copy, and only for the owner with a valid control card.

I have a front and back door. Can one key open both?

Yes. Buy one cylinder for each lock and send us a message after checkout. We'll key them all alike so a single key works on every door.

Satin chrome ships from stock. Other finishes, like dark bronze, can be special ordered; message us for price and lead time.

I have several locations. Do you do bulk orders?

Yes. We can key multiple stores alike, or set up a master key system where each store has its own key and the owner has one key that opens everything. Message us for pricing.

Cylinders ship within [2] business days of payment. Your cylinder is pinned to its own key code, cut, and tested before it leaves our shop.

Returns are accepted within 30 days for a cylinder in its original, uninstalled condition. Keys are cut to order and can't be returned, but if one doesn't work, we'll recut it free.

Your store. Your keys. Nobody else's.
Questions? Message us on — real locksmiths answer.
