High-Performance Neuvo 64-Channel Amplifier | Advanced Audio Technology:
$300.00

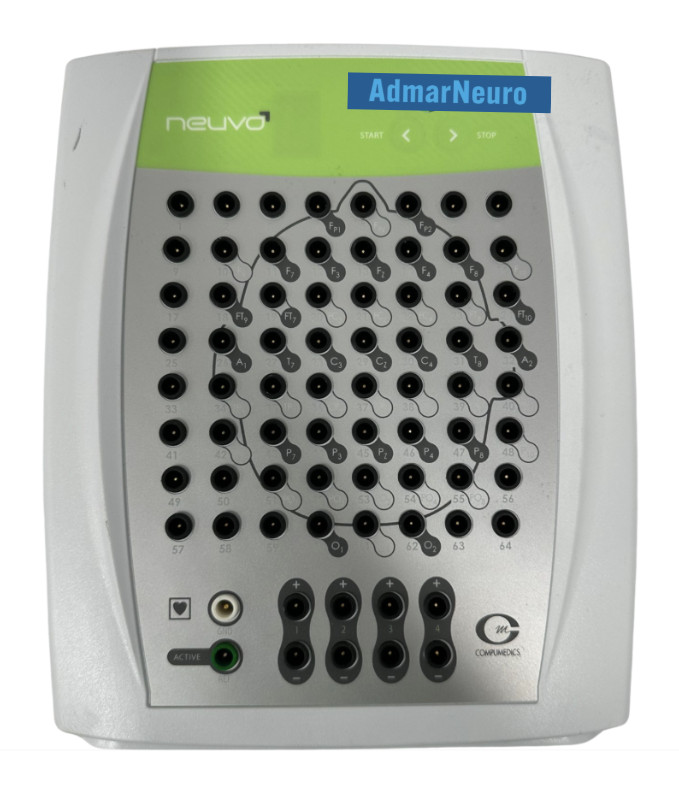

High-Performance Neuvo 64-Channel Amplifier | Advanced Audio Technology
Channel Count Per Headbox: 64 Monopolar and 4 BipolarUtilizing the latest technology, Neuvo allows for discrete monopolar and bipolar channels, enhancing the flexibility of recordings. Linking headboxes together allows more than 500 channels to be recorded.
A 64-channel Neuvo EEG system has one headbox, with 68 channels in total.
Maximum Sampling Rate: 10,000 Per Channel all channels drivenFaster sampling rates allow for more accurate sampling of the analog data being recorded. Signals such as Auditory Brain Stem Response require these faster rates, while typical ERP measures benefit from increased resolution.
Sampling Method: All Channels Sampled SimultaneouslyCurrent technology eliminates the problems associated with sample and hold circuits. Utilizing a dedicated 24-bit A to D chip for each channel, the Neuvo enhances resolution and accuracy of each sample by ensuring a more valid measure of the data without decay or skew.
The 24-bit resolution allows for even the most subtle differences in amplitude to be measured accurately.
Recording Bandwidth: DC to 3500 HzMany slow potentials (i.e., P300, MMN, CNV) have components that can only be measured accurately using a DC amplifier. DC amplifiers are also not subject to the AC coupled, filter time constant that distorts recordings after an artifact. The high frequency end of the Neuvo’s range allows for more accurate recording of the fastest frequencies.
Active Noise Cancellation: Utilizing advanced driven reference technologyNeuvo sets a new standard for amplifier design, both in terms of safety and signal quality. Actively sampling environmental noise, and applying an antiphase signal to eliminate that noise, elevates the CMRR to unprecedented levels. This technology also provides increased patient protection.
10 G Ohm Input Impedance: Allows standard impedance or fast preparation to be obtainedNeuvo allows you to choose on a subject by subject basis to prepare the scalp electrode impedance to the scientifically accepted levels or to record with high impedance, due to time or bject constraints. This flexibility allows you the option to maximize your data collection for each subject and collect the best data the situation allows.
