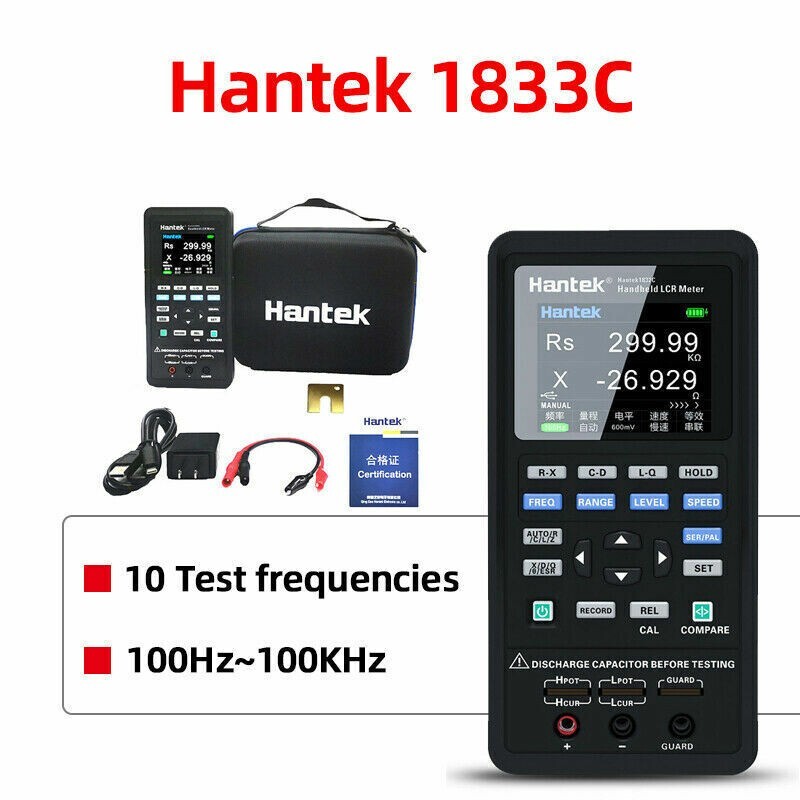

Hantek 1833C Handheld LCR Meter for Inductance Capacitance Resistance Testing US:
$179.00
Hantek Digital LCR Meter hantek1832C Hantek1833C Handheld Portable Inductance Capacitance and Resistance Measuring Tester ToolsHantek 1832C/Hantek 1833C handheld LCR is a portable handheld measuring instrument to measure the parameters of the component such as inductance、capacitance、resistance and so on.Small volume,powered by 5V lithium battery,it can meet the requirements of desktop LCR application, and can also be applied to flow measurement and handheld measurement.Hantek 1832C/Hantek 1833C handheld LCR is a portablehandheld measuring instrument to measure the parametersof thecomponent such as inductance、capacitance、resistance and so on.
Small volume,powered by 5V lithium battery,it can meetthe requirements of desktop LCR application, and can also be applied to flowmeasurement and handheldmeasurement.
Feature:
（Hantek1832C)7 typical test frequency
-2.8 inch TFT LCD，Switch between Chinese and English
-HD display，dual display of measurement data，the result is clear
-Support data record analysis
-Support PC upper computer，easy to control and measure remotely
-Test lead：3 end/5 end switch
-Measuring speed：high speed/intermediate speed/low speed switch
-Range：support manual/auto switch，easy to do quick measurement
-LCR adopted rechargeable design，Large capacity lithium battery，super standby
-Double shock protection sleeve，all-round class=\"MsoNormal\" style=\"text-align: left; mso-pagination: widow-orphan;\" align=\"left\">-the machine from damage，longer use time, more comfortable measurement
-Bracket design,easy to put and measure
-LCR high precision test instrument
Specification:
Model
Hantek1832C
Hantek1833C
Test frequency
40kHz
Accuracy
0.30%
Equivalent Circuit
series,parallel
Test level
0.6Vrms
0.6Vrms,0.3Vrms
Measurement way
manual,auto
Display screen
2.8 inch TFT LCD
Measurement parameters
principle parameter:L/C/R/Z deputy parameter:X/D/Q/θ/ESR
Principle parameter
L/C/R/Z
Deputy parameter
X/D/Q/θ/ESR
Inductance Measurement range
(L) 0-2000H
Capacitance Measurement range
(C) 0-20mF
Resistance Measurement range
(R) 0-20MΩ
Measurement speed
high speed(4 times/s),intermediate speed(twice/s),low speed(once/s)
Reset function
open circuit calibration,short-circuit calibration
Test terminal configuration
3 termianl,5 terminal
General feature
standard with 1.Type-C data cable;2.power adapte;3.short circuit card;4.red and black rubber plug;5.large capacity lithium battery
Capacitance C and dissipationD
100Hz/120Hz
Range
Display range
Accuracy Ce
Accuracy De
Recommended equivalent mode
20mF
4.000mF~20.000mF
8.00%+5 digits
0.08
series
4mF
400.0μF~3.9999mF
2.00%+3 digits
0.02
series
400μF
40.00μF~399.99μF
0.60%+2 digits
0.006
series
40μF
4.000μF~39.999μF
0.40%+2 digits
0.004
series
4μF
400.0nF~3.9999μF
0.40%+2 digits
0.004
----
400nF
40.00nF~399.99nF
0.4%+2 digits
0.004
parallel
40nF
4.000nF~39.999nF
0.5%+3 digits
0.005
parallel
4nF
0pF~3.999nF
1.5%+5 digits
------
parallel
1KHz
Range
Display range
Accuracy Ce
Accuracy De
Recommended equivalent mode
1000uF
400.0uF~999.9uF
3.00%+5 digits
0.03
series
400μF
40.00μF~399.99μF
1.50%+3 digits
0.015
series
40μF
4.000μF~39.999μF
0.60%+2 digits
0.006
series
4μF
400.0nF~3.9999μF
0.40%+2 digits
0.004
----
400nF
40.00nF~399.99nF
0.4%+2 digits
0.004
parallel
40nF
4.000nF~39.999nF
0.6%+3 digits
0.006
parallel
4nF
400.0pF~3.9999nF
0.6%+3 digits
0.006
parallel
400pF
0.0pF~399.9pF
3%+5 digits
------
parallel
10KHz
Range
Display range
Accuracy Ce
Accuracy De
Recommended equivalent mode
100μF
40.00μF~100.00μF
4.00%+5 digits
0.04
series
40μF
4.000μF~39.999μF
2.0%+3 digits
0.02
series
4μF
400.0nF~3.9999μF
0.60%+2 digits
0.006
series
400nF
40.00nF~399.99nF
0.4%+2 digits
0.004
series
40nF
4.000nF~39.999nF
0.4%+2 digits
0.004
------
4nF
400.0pF~3.9999nF
0.4%+2 digits
0.004
parallel
400pF
40.00pF~399.99pF
0.6%+3 digits
0.006
parallel
40pF
0.00pF~39.99pF
2.5%+5 digits
------
parallel
40KHz
Range
Display range
Accuracy Ce
Accuracy De
Recommended equivalent mode
100μF
40.00μF~100.00μF
6.00%+5 digits
0.06
series
40μF
4.000μF~39.999μF
4.0%+3 digits
0.04
series
4μF
400.0nF~3.9999μF
1.0%+2 digits
0.01
series
400nF
40.00nF~399.99nF
0.6%+2 digits
0.006
series
40nF
4.000nF~39.999nF
0.6%+2 digits
0.006
------
4nF
400.0pF~3.9999nF
0.6%+2 digits
0.006
parallel
400pF
40.00pF~399.99pF
1%+3 digits
0.01
parallel
40pF
0.000pF~39.999pF
3%+5 digits
------
parallel
100KHz
Range
Display range
Accuracy Ce
Accuracy De
Recommended equivalent mode
10μF
4.000μF~10.000μF
8.0%+20 digits
0.08
series
4μF
400.0nF~3.9999μF
5.0%+10 digits
0.05
series
400nF
40.00nF~399.99nF
1.5%+5 digits
0.015
series
40nF
4.000nF~39.999nF
1%+2 digits
0.01
series
4nF
400.0pF~3.999nF
1%+2 digits
0.01
------
400pF
40.00pF~399.99pF
1.5%+2 digits
0.015
parallel
40pF
4.000pF~39.999pF
2%+5 digits
0.02
parallel
4pF
0.000pF~3.999pF
5%+10 digits
------
parallel
Inductance L and quality factor
100Hz/120Hz
Range
Display range
Accuracy Le
Accuracy De*
Recommended equivalent mode
1000H
400.0H~999.9H
2.00%+3 digits
0.02
parallel
400H
40.000H~399.99H
0.60%+2 digits
0.006
parallel
40H
4.000H~39.999H
0.40%+2 digits
0.004
parallel
4H
400.0mH~3.9999H
0.40%+2 digits
0.004
----
400mH
40.00mH~399.99mH
0.4%+2 digits
0.004
series
40mH
4.000mH~39.999mH
0.6%+3 digits
0.006
series
4mH
0uH~3.999mH
3.0%+5 digits
------
series
1kHz
Range
Display range
Accuracy Le
Accuracy De*
Recommended equivalent mode
1H
400.0mH~999.9mH
1.50%+3 digits
0.015
parallel
400mH
40.00mH~399.99mH
0.4%+2 digits
0.004
parallel
40mH
4.000mH~39.999mH
0.4%+2 digits
0.004
------
4mH
400.0uH~3.9999mH
0.4%+2 digits
0.004
series
400uH
40.00uH~399.99uH
0.8%+3 digits
0.008
series
40uH
0.00uH~39.99uH
3.0%+5 digits
------
series
10kHz
Range
Display range
Accuracy Le
Accuracy De*
Recommended equivalent mode
100H
40.00H~100.00H
2.0%+3 digits
0.02
parallel
40H
4.000H~39.999H
0.60%+2 digits
0.006
parallel
4H
400.0mH~3.9999H
0.40%+2 digits
0.004
parallel
400mH
40.00mH~399.99mH
0.4%+2 digits
0.004
------
40mH
4.000mH~39.999mH
0.4%+2 digits
0.004
series
4mH
400.0uH~3.9999mH
1%+3 digits
0.01
series
400uH
0.0uH~399.9uH
3.0%+5 digits
------
series
40kHz
Range
Display range
Accuracy Le
Accuracy De*
Recommended equivalent mode
1H
400.0mH~999.9mH
2.0%+4 digits
0.02
parallel
400mH
40.00mH~399.99mH
0.8%+2 digits
0.008
parallel
40mH
4.000mH~39.999mH
0.8%+2 digits
0.008
------
4mH
400.0uH~3.9999mH
0.8%+2 digits
0.008
series
400uH
40.00uH~399.99uH
1.5%+3 digits
0.015
series
40uH
0.000uH~39.999uH
4.0%+5 digits
------
series
100kHz
Range
Display range
Accuracy Le
Accuracy De
Recommended equivalent mode
100mH
40.00mH~399.99mH
2.5%+2 digits
0.025
parallel
40mH
4.000mH~39.999mH
1.5%+2 digits
0.015
parallel
4mH
400.0uH~3.9999mH
1.0%+2 digits
0.01
------
400uH
40.00uH~399.99uH
1.0%+2 digits
0.01
series
40uH
4.000uH~39.999uH
1.5%+5 digits
0.015
series
4uH
0.000uH~3.999uH
4%+10 digits
------
series
Impedance Z and phase angle
Range
Display range
Accuracy Ze
Accuracy
Recommended equivalent mode
20MΩ
4.000MΩ~20.000MΩ
3.0%+10 digits
3.4°
parallel
4MΩ
400.0kΩ~3.9999MΩ
1.2%+3 digits
0.7°
parallel
400kΩ
40.00kΩ~399.99kΩ
0.3%+3 digits
0.2°
parallel
40kΩ
4.000kΩ~39.999kΩ
0.25%+2 digits
0.1°
------
4kΩ
400.0Ω~3.9999kΩ
0.25%+2 digits
0.1°
series
400Ω
40.00Ω~399.99Ω
0.25%+2 digits
0.1°
series
40Ω
4.000Ω~39.999Ω
0.5%+3 digits
0.3°
series
4Ω
0.4000Ω~3.9999Ω
2.0%+3 digits
1.1°
series
0.4Ω
0.0000Ω~0.3999Ω
4.0%+3 digits
------
series
40kHz
Range
Display range
Accuracy Ze
Accuracy
Recommended equivalent mode
20MΩ
4.000MΩ~20.000MΩ
7.0%+41 digits
4.0°
parallel
4MΩ
400.0kΩ~3.9999MΩ
2.5%+3 digits
1.4°
parallel
400kΩ
40.00kΩ~399.99kΩ
1.0%+4 digits
0.6°
parallel
40kΩ
4.000kΩ~39.999kΩ
1.0%+4 digits
0.6°
------
4kΩ
400.0Ω~3.9999kΩ
0.5%+3 digits
0.3°
series
400Ω
40.00Ω~399.99Ω
0.5%+3 digits
0.3°
series
40Ω
4.000Ω~39.999Ω
0.7%+4 digits
0.4°
series
4Ω
0.4000Ω~3.9999Ω
2.0%+6 digits
1.1°
series
0.4Ω
0.0000Ω~0.3999Ω
5.0%+10 digits
------
series
100kHz
Range
Display range
Accuracy Ze
Accuracy
Recommended equivalent mode
20MΩ
4.000MΩ~20.000MΩ
9.0%+20 digits
5.2°
parallel
4MΩ
400.0kΩ~3.9999MΩ
4.0%+10 digits
2.3°
parallel
400kΩ
40.00kΩ~399.99kΩ
1.5%+4 digits
0.9°
parallel
40kΩ
4.000kΩ~39.999kΩ
1.0%+2 digits
0.6°
parallel
4kΩ
400.0Ω~3.9999kΩ
0.7%+2 digits
0.4°
------
400Ω
40.00Ω~399.99Ω
0.7%+2 digits
0.4°
series
40Ω
4.000Ω~39.999Ω
1.0%+5 digits
0.6°
series
4Ω
0.4000Ω~3.9999Ω
3.0%+10 digits
1.7°
series
0.4Ω
0.0000Ω~0.3999Ω
7%+20 digits
------
Package:
1 x LCR meter
1 x power charger
1 x usb cable
1 x pair test lead
1 x pair WOSONTEL clip
Function Display
Hantek 1833C Digital Handheld LCR Meter Inductance Capacitance Resistance
$170.05
Hantek 1833C Handheld LCR Meter Inductance Capacitance Resistance Tester US
$179.00
Hantek 1833C Handheld LCR Meter for Inductance Capacitance Resistance Testing US
$179.00
Popular Tutorials
Alarms and Indicator Circuit diagrams- Power supply failure alarm
- Theft preventer alarm
- Rain Alarm
- A simple electronic buzzer
- Water Level Indicator with alarm
- Stereo Channel Selector
- Low cost intercom using transistors
- Infrared Head Phones
- Use the CD-ROM drive as a audio CD player without the computer
- Audio Visual Indicator for Telephones
- Ultrasonic pest repellent
- Charge Monitor for 12V lead acid battery.
- Wiper Speed Control
- Dome Light Dimmer for Cars
- Car anti theft wireless alarm.
- Control electrical appliances using PC
- Simple Analog to Digital Converter
- PC based Frequency Meter
- 7 segment rolling display using PC
- Electronic Scoring Game
- JAM(Just A Minute) Circuit
- Flashy Christmas Lights
- TV remote control blocker
- Light Flasher (blinking lights)
- Automatic Dual output Display
- Emergency Light
- Automatic Room Lights
- Running Message Display
- Automatic Speed Controller for fans & Coolers
- Soft Button type Motor Direction Controller
- Super simple stepper motor controller
- Discrete component motor direction controller
- Negative supply from single positive supply
- Self switching Power Supply
- Ultra low drop linear voltage regulator
- Car anti theft wireless alarm.
- Long range FM transmitter
- Remote control using VHF modules
- 40 meter Direct Conversion Receiver
- Remote control using VHF modules
- Remote control using telephone
- A simple Remote control Tester
- Clap Activated Remote
- Radio Remote Control using DTMF
- Ultrasonic switch
- Magnetic proximity sensors
- Dew sensor
- Color Sensor
- Metal Detector
- Optical toggle switch using a single Chip
- Telephone Ringer using 556 dual timers
- Two line intercom plus a telephone changeover switch
- Telephone line based audio muting and light on circuit
- Having secrecy in parallel telephones
- Telephone call meter using calculator & COB
- High Resistance Voltmeter
- A simple Remote control Tester
- Contactless Mains Voltage Indicator
- Zener Diode Tester
