HVAC Ignition Control Module 780-845 For Robertshaw 24V Lockout Kit 780-002 NEW For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

HVAC Ignition Control Module 780-845 For Robertshaw 24V Lockout Kit 780-002 NEW:
$131.96

UPGRADED 780-845Robertshaw Intermittent Pilot Ignition Control Module (24VAC) Replaces SP845 & SP745 | Upgraded Universal Board | SP Series Buy With Confidence!

✓ FAST & FREE SHIPPING (Same or Next Business Day)
✓ FREE 30-DAY RETURNS
✓ 1-YEAR WARRANTY
✓ SHIPS FROM THE U.S.A.

Product Details

Restore safe and reliable heating operation with thisOE upgraded Direct Replacement 780-845 Ignition Control Module. Built with advanced microprocessor solid-state logic, this 24VAC controller is designed to provide automatic sequencing, precise ignition sparking, and constant flame rectification for intermittent pilot systems.

Engineered to upgrade and replace legacy SP845 and SP745 units, this module features a highly responsive diagnostic LED to assist in fast troubleshooting. During a call for heat, the control opens the pilot valve and initiates a 90-second spark sequence. If the pilot flame is not established and verified after 3 attempts (with a 6-minute purge delay between tries), the system enters a safe 1-hour lockout period before automatically attempting re-ignition.

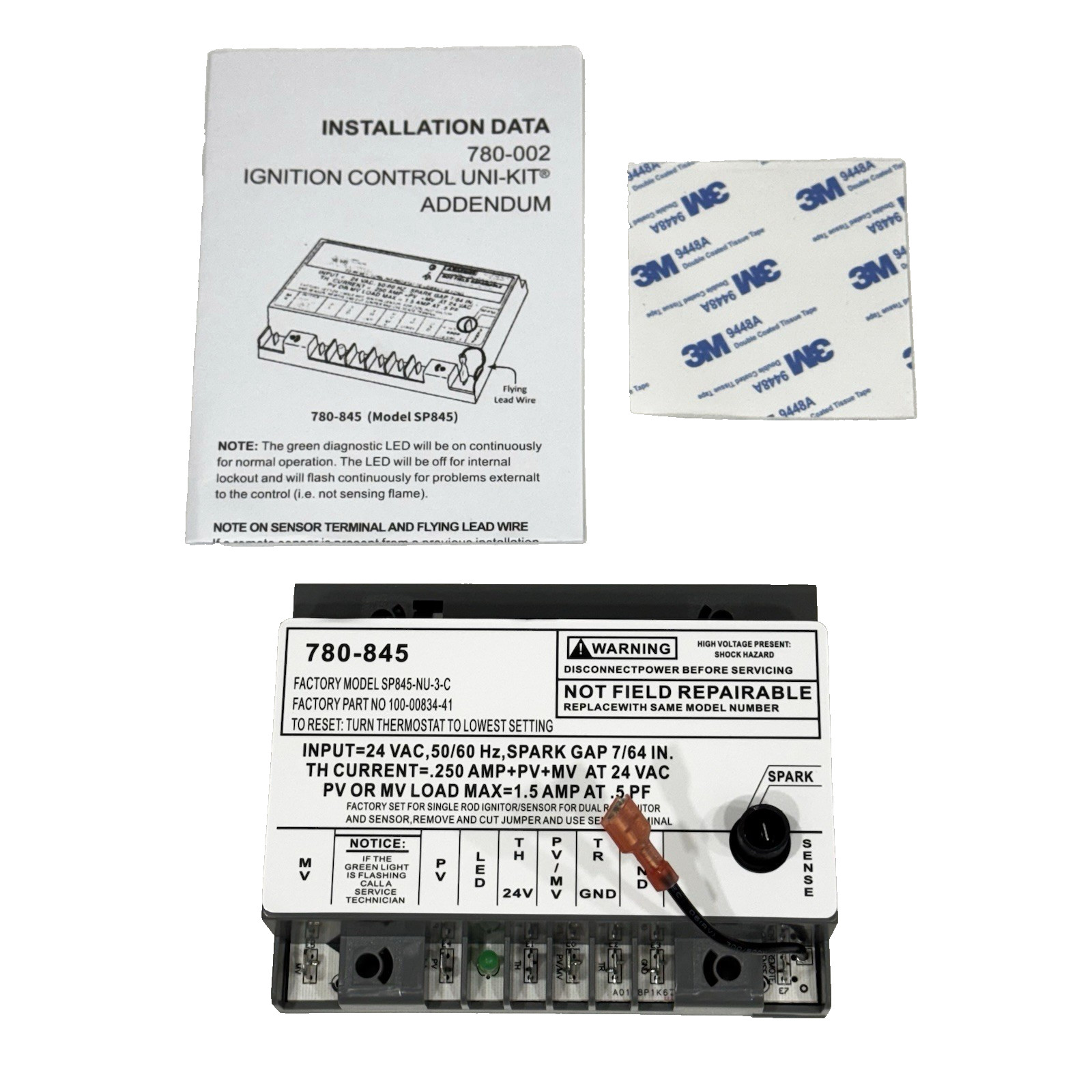

Condition: Brand New. Includes: 1x 780-845 Ignition Module, 1x Sense Terminal Jumper Wire, Mounting Hardware, and Installation Instructions. ( Exactly what is shown in the photos is what will ship out )

💡 PRO INSTALLATION TIP:
Check your ground! A poor grounding connection is the #1 cause of intermittent flame-sensing failures and "nuisance lockouts." Ensure the module and pilot assembly are securely mounted to bare metal. Additionally, this module requires a minimum 20 VA transformer to operate correctly. Before powering on, verify that your ignitor spark gap is set exactly to 7/64" for optimal spark delivery. Key Features

Continuous Flame Monitoring: Uses flame rectification to continuously monitor the pilot flame, instantly shutting off the main gas valve if the flame drops out.
Smart Safety Lockout: Provides 90 seconds of spark, a 6-minute purge delay, and a 1-hour lockout after 3 failed attempts to prevent dangerous gas buildup.
Diagnostic LED: Built-in green LED indicator flashes to signal system faults or lockouts, saving valuable diagnostic time for technicians. Continuously ON = Normal operation; OFF = internal lockout; FLASHING = external problem. ( e.g No flame sense. ) HElps HVAC technicians quickly identify issues without extra tools.
Direct Plug-and-Play: Requires no wiring changes for standard installations. Simply mount, plug straight in, and restore heat.
Lockout & Retry: Provides 90 seconds of spark, then a 6-minute purge delay between ignition attempts. After 3 unsuccessful tirals ( No pilot flame sensed) the module enters a 1-hour lockout period. After lockout, if head demand remains, it automatically retries 3 more cycles. Manual reset also available at thermostat.
Electrical Specs: Input voltage = 24VAC 50/60Hz ( requires 20 VA transformer.) Pilot and main valve rating: 1 amp at 0.5 PF, combined load 1.5A at 0.4PF. Flame Sense Current 0.7uA DC at 25 degrees C. / 24 VAC. Flame Failure reignition time < 2 seconds. Ambient temperature range -40 degrees F to 175 Degrees F (-40 Degrees C to 80 Degrees C. Humidity: 95% non-condensing.
Easy Wiring: Clearly labeled terminals: MV (Main Valve), PV (Pilot Valve), TH (24V Thermostat), TR (Transformer Ground), SENSE, SPARK, etc. Includes flying lead wire for local flame sensing and a REMOTE SENSE terminal for remote sensor installations. Compatible with both local and remote flame sensing setups

Cross-Reference & Compatibility

This module directly replaces the following part numbers (and hundreds more):

Brand / Series Replaces OEM Part Numbers Robertshaw 780-845, 780-002, 780-84E, 780-737, 780-745 SP Series SP845, SP845-NU-3-C, SP845-NL-1-C, SP845-NR-3-C, SP745, SP735L Factory Numbers 100-00834-41, 100-00834-xx Series, 100-00831-xx Series, 100-00826-xx Series, 100-00802-xx Other Cross Ref 50D50-843, 1TGD9, 18G9101, 32-0319, 97H0401, 233-39762-00A, 233-39949-00A, 2405500, 2619600 Specifications Brand: Nationwide (OE Grade Direct Replacement) / Upgraded Aftermarket Input Voltage: 24 VAC @ 50/60 Hz Max Combined Current Load: 1.5 Amps @ 0.5 PF (Pilot + Main Valve) Spark Rate / Gap: 4 to 15 sparks per second / 7/64" Gap Safety Lockout Timing: 90 Seconds Flame Failure Re-Ignition: 2 Seconds Shipping & Policies
