HBK/HBM Torque Transducer T22/50NM For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

HBK/HBM Torque Transducer T22/50NM:
$2000.00

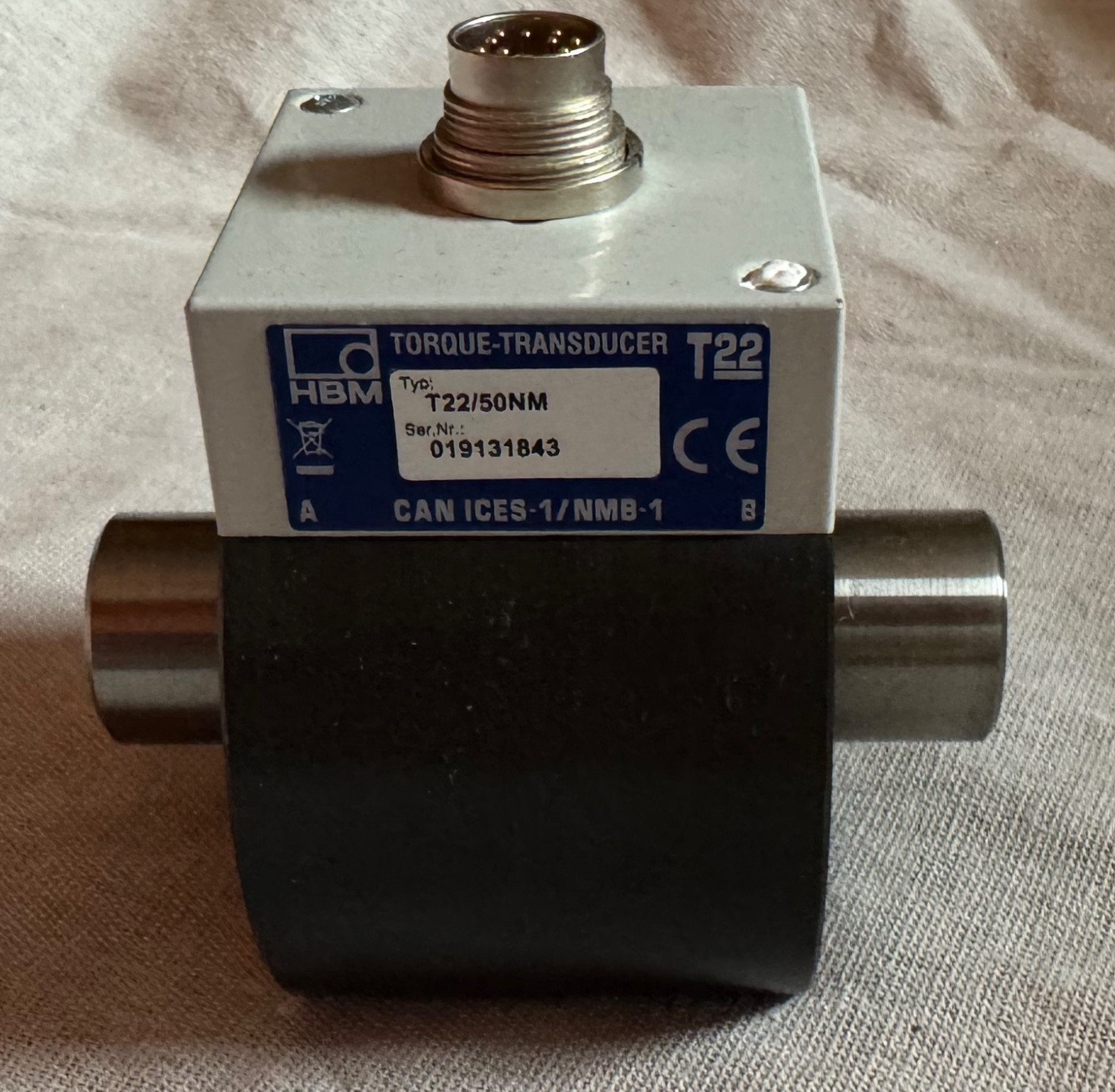

HBK/HBM Torque Transducer T22/50NM. New, missing box, never installed.
[link removed by ]
Type range50 NmGeometry (flange/shaft)ShaftNominal rotational speed16000 rpmAccuracy class0.5Size (length)90 mmWeight (material)SteelIntegrated speed measurementfalseMarine certificationNoneOutput signalVoltage (+/- 10V), Current (4-20mA)Minimum Temperature0 °CMaximum Temperature60 °CT22– The Smart Choice for Efficient, High‑Performance Torque Testing

The family of T22 shaft torque transducers delivers reliable, high-accuracy torque measurement for both production environments and laboratory testing. With a compact, maintenance-free design and easy PLC integration, T22 is the smart choice for efficient, high-performance torque measurement.

Key features

Strain gage measuring system
Accuracy class: 0.5
Measurement signal transmission: contactless
Torque output signal: +/- 5V and 10 +/- 8 mA
Supply voltage: 11.5 - 30 V DC / 0.2 A
Electrical connection via 12-pin male device connector

The T22/50NM variant

The T22 family has a torque measurement range from 0.5 N·m to 1 kN·m, where each variant has a specific maximum range as well as individual load limits and mechanical values. For the 50 N·m variant these values are:

Load limits:
- Logitudinal limit force: 1.6 kN
- Lateral limit force: 210 N
- Bending limit moment: 5.5 N·m
Mechanical values:
- Torsional stiffness cT: 19.7 kN·m /rad
- Torsional angle at Mnom: 0.15˚
- Mass moment of inertia total: 39.8 10-3g·m2
- Mass moment of inertia drive side of shaft: 29.2 10-3g·m2
- Mass moment of inertia measuring side of shaft: 10.6 10-3g·m2
The nominal (rated) rotational speed nnom: 12,000 min-1
