Genuine Wilden Model: 02-3880-99 Pilot Sleeve Assembly. For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Genuine Wilden Model: 02-3880-99 Pilot Sleeve Assembly. :
$128.79

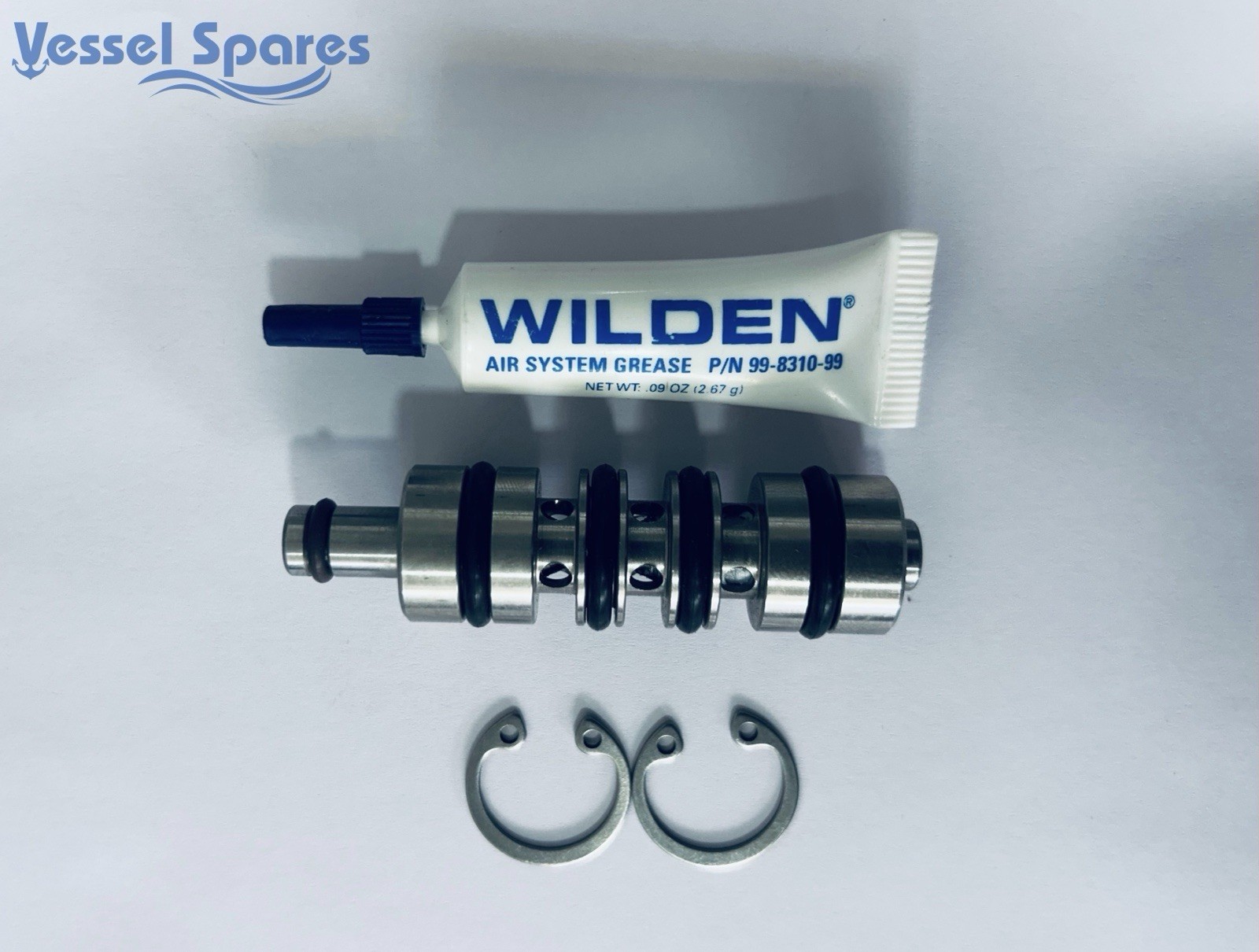

The **Wilden 02-3880-99** is a genuine OEM replacement **pilot sleeve assembly** designed specifically for Wilden 1” (25 mm) air-operated double-diaphragm (AODD) pumps utilizing the Pro-Flo® air distribution system.

This precision-engineered internal component houses the pilot spool, critical for directing air signals that drive the pump's shifting mechanism. It ensures accurate pneumatic timing, prevents operational stalling, and maximizes efficiency in compact, light-to-medium-duty industrial fluid transfer applications.

---

---

---

Wilden 15-1060-51 Air Side Diaphragm Genuine OEM AODD Pump Replacement NOS

$124.97

---

Genuine Wilden Model: 02-3880-99 Pilot Sleeve Assembly.

$128.79

---

New Genuine Wilden 15-1010-55 PTFE Diaphragm

$151.20

---
