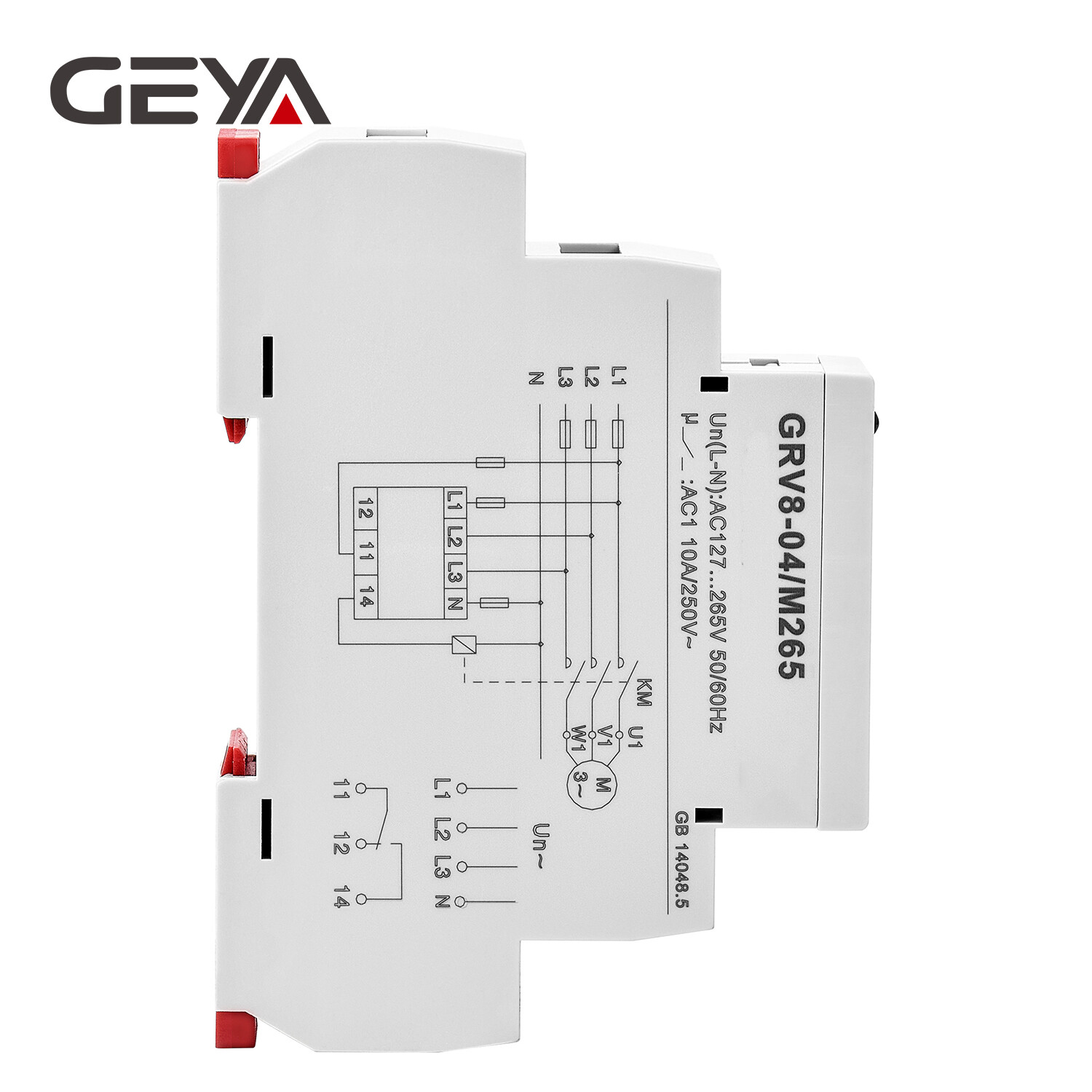

GRYA 3-Phase Voltage Relay GRV8 Series

Product Description

This link is for other country.If you are from US or PR,Please click here.

Applications

Control for connection of moving equipment(site equipment,agricultural equipment,refrigerated trucks). Control for protection of persons and equipment against the consequences of reverse running. Normal/emergency power supply switching. Protection against the risk of a driving load (phase failure).

Function Features
Controls its own supply voltage(True RMS measurement). Measuring frequency range:45Hz-65Hz. Voltage measurement accuracy<1%. Relay status is indicated by LED.

Packing List
1PCS 3-Phase voltage relay and manual

If you buy more than 2 PCS,We will send you 1 PCS of rail and 1 PCS ofscrewdriver as gift!

M460=3 Phase M265=3Phase +N Function Over-voltage, Under-voltage, Asymmetry, Delay Time, Phase Sequence, Phase Failure Monitoring Terminals L1-L2-L3 L1-L2-L3-N Supply Terminals L1-L2 L1-N Voltage Range 220-230-240-380-400-415-440-460(P-P) 127-132-138-220-230-240-254-265(P-N) Rated supply frequency 45Hz-65Hz Measuring range 176V-552V 101V-318V Threshold adjustment voltage 2%-20%of Un selected Adjustment of asymmetry threshold 5%-15% Hysteresis Fixed 2% Time Delay Adjustable 0.1s-10s ,10% Temperature coefficient 0.05%/℃,at=20℃ (0.05℉,at=68℉ ) Output 1xSPDT Current Rating 10A/AC1 Switching voltage 250VAC/24VDC Reset Time 1000ms Min.breaking capacity DC 500mW Mechanical life 1x10000000 Electrical life(AC1) 1x100000 Operating temperature -20℃ to 55℃(-4℉ to 131℉) Mounting/DIN rail Din rail EN/IEC 60715 Max.cable size(mmx2) solid wire max.1X2.5or 2X1.5/with sleeve max.1X2.5(AWG 12)

Model Function Link US GRV8-04 Three Phase Voltage Monitoring Relay https://www..com/itm/116468222390 GRV8-10 3 Phase Voltage Monitoring Relay With Phase Protection https://www..com/itm/116446252583 GRV8-S 3 Phase Over & Under Voltage Protector Relay LCD display https://www..com/itm/116452000157

Enclosure (IP 65) Link 5/8/12/WAY style=\"box-sizing:border-box;\">
