GE-50-1 Neptune Pumps Complete Glycol Feed System with self-supporting tank:
$1945.00

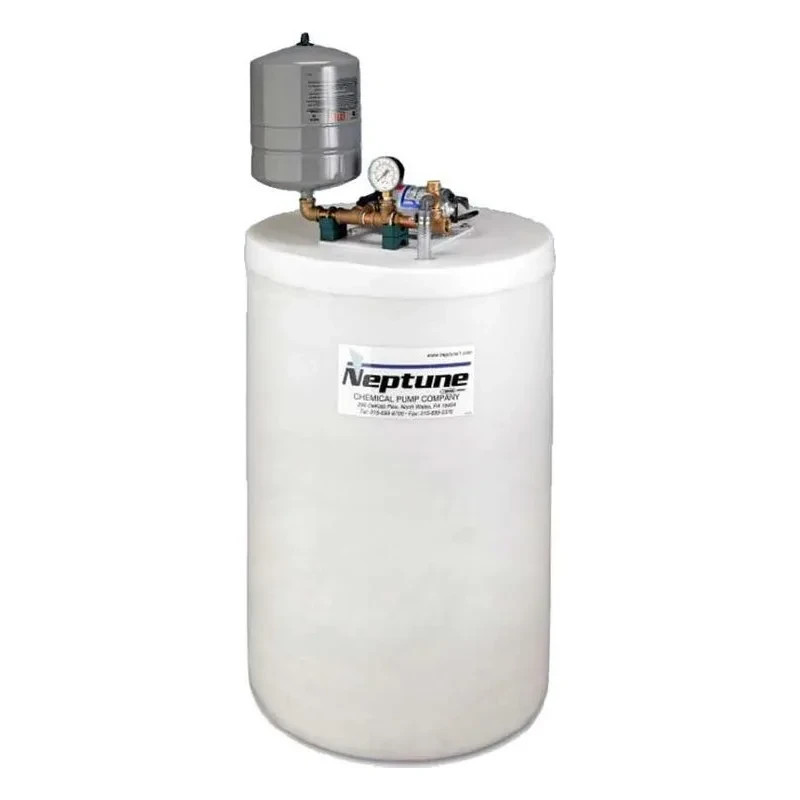

GE-50-1 Neptune Pumps Complete Glycol Feed System with self-supporting tank including 1.0 gpm (@ 40 psi) diaphragm pump, low level switch, relief valve and expansion tank.
• Expansion tank• Float switch for low-level pump shutoff• 50-gallon (189.3 L) self-supporting translucentpolyethylene tank• Triplex diaphragm pump operating at 1.0 gpmat 40 psi (3.8 L/min at 2.8 bar) with power cord(115 VAC 60 Hz)• 100 psi (6.9 bar) brass relief valve with PVCreturn line
Neptune Glycol Feeders are perfect for adding glycol solution toclosed-loop chilled or hot water systems. The system automaticallymaintains pressure in the loop by adding glycol solution to makeup for losses that occur due to leakage.The system utilizes a triplex diaphragm pump with an integraladjustable pressure switch to control the shut-off set point for theaddition of glycol over a range of 40 to 60 psi +/- 5 psi (2.8 to 4.1bar +/- .4 bar). The pump feeds glycol into the system until thepressure set point is achieved and stops the pump. Other pressureswitches are available upon request.New on pallet ready to ship from zip code 19520.
