GE 1/4 HP AC Electric Motor 5KC33KN19H C462 NEMA 48 Frame 1425 RPM TEFC 110/220V For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

GE 1/4 HP AC Electric Motor 5KC33KN19H C462 NEMA 48 Frame 1425 RPM TEFC 110/220V:
$190.00

Item Specifics (Technical Specifications Table)

Fill out your "Item Specifics" section exactly like this table to rank higher in buyer searches:

Item Specific Field Value

Brand General Electric (GE)

Model / MPN 5KC33KN19H

Stock / Catalog No. C462

Horsepower (HP) 1/4 HP

Phase Single-Phase (1 PH)

Speed (RPM) 1425 RPM

Voltage 110V / 220V

Amperage (Amps) 5.4 A / 2.7 A

Frequency (Hz) 50 Hz

Frame Size NEMA 48

Enclosure Type TEFC (Totally Enclosed Fan Cooled)

Rotation Reversible (CCW/CW)

Shaft Dimensions 0.50" Diameter x 1.50" Length Flat Shaft

Mounting Type Rigid Base Mount (WB)

Country of Manufacture United States (Made in USA)

Brand New Old Stock (NOS) General Electric 1/4 HP AC Industrial Electric Motor**

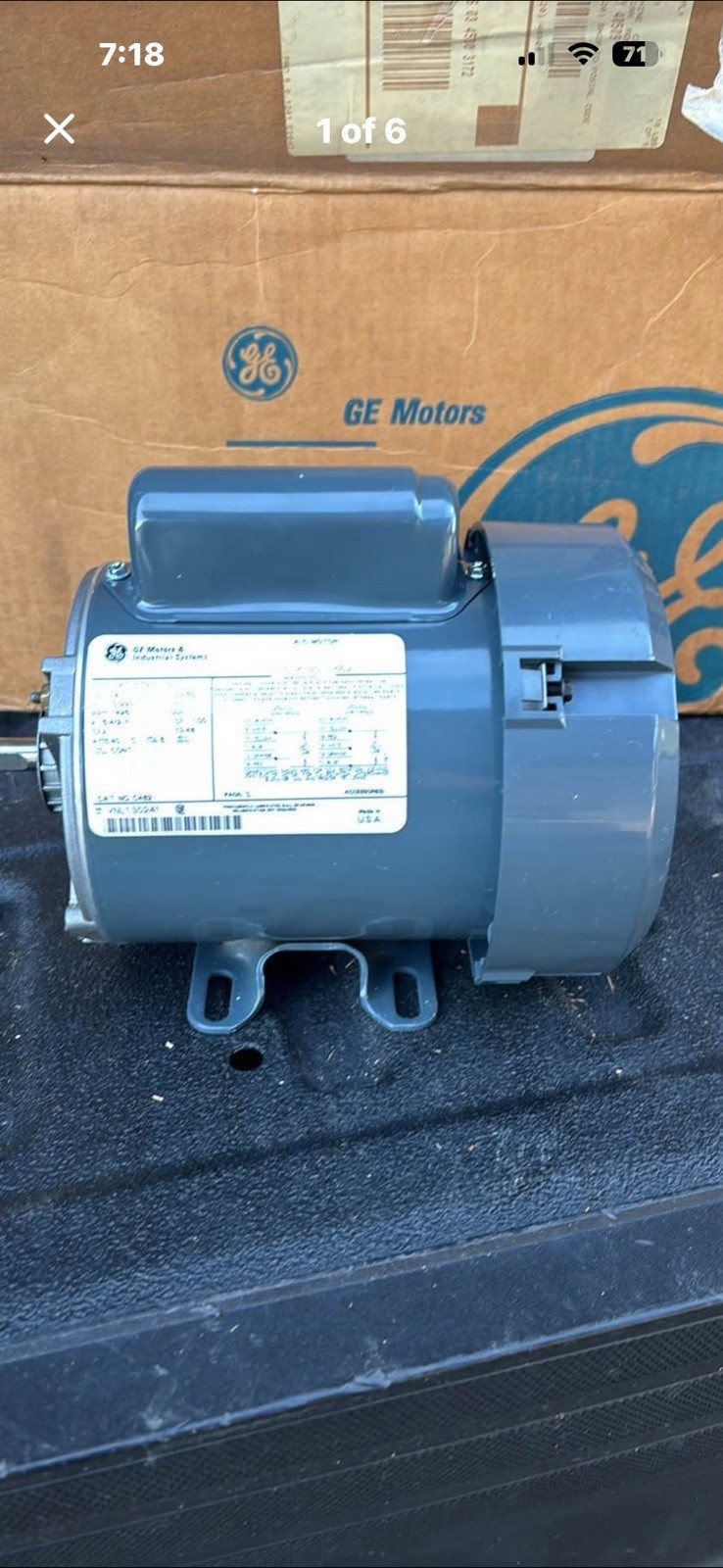

Up for sale is a brand new, never-installed General Electric heavy-duty single phase electric motor. This high-quality motor comes complete inside its original factory GE box (box has minor wear from storage, but the motor inside is pristine).

**Key Features & Applications:**

* **Industrial Build:** Built by GE Industrial Control Systems in Fort Wayne, Indiana, USA. Features premium double ball bearings for an exceptionally long operational lifespan.

* **TEFC Enclosure:** Totally Enclosed Fan Cooled design keeps dust, dirt, and moisture out of the internal components, making it ideal for harsh shop environments.

* **Reversible Rotation:** Wired for easy customization (Counter-Clockwise or Clockwise rotation). Wiring schematic diagram is printed clearly right on the side nameplate label.

**Physical & Shipping Specs:**

* **Shaft Type:** 1/2" diameter flat shaft (0.50" x 1.50")

* **Base:** Built-in heavy welded rigid mounting base.

* **Weight:** Approx 25 lbs (Will be securely packed inside its original box and double-boxed for safe transit).
