For Mitutoyo 500-197-30 200mm/0-8" Absolute Digital Digimatic Vernier Caliper US:
$49.88

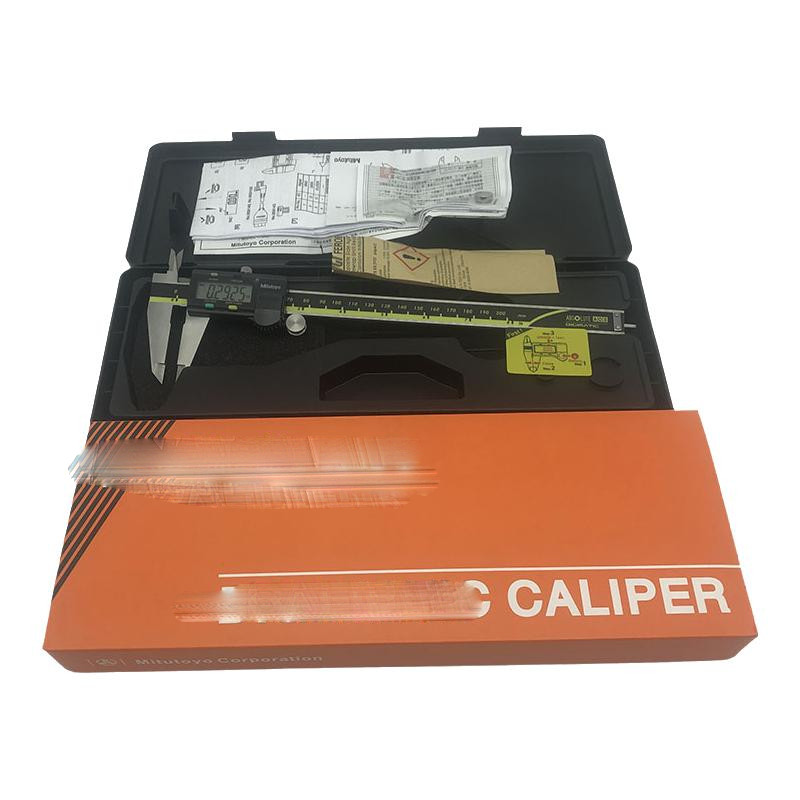

Absolute Digimatic Caliper 0-200mm / 0-8"

A digital caliper equipped with standard outside and inside jaws. Hardened stainless

steel construction and equipped with ABSOLUTE System scale for error free, high-

speed measurement.

Large and clear LCD readout.

Conventional Digital Measurement - The ZERO/ABS button allows the display to be

Zero-Set at any slider position along the scale for comparison measurements. This

button also allows return to the absolute (ABS) mode for displaying the true position from

the origin (usually the jaws-closed point).

ABSOLUTE Digimatic Measurement - Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement

system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be

made at any time without losing the origin setting.

Key Specifications

Range - 0-200mm / 0-8"

Resolution - 0.01mm / 0.005"

Accuracy - ±0.02mm / ±0.01"

Scale type Absolute electromagnetic linear encoder

Repeatability - 0.01mm

Fine adjustment with thumb roller

Depth bar - Blade

Battery - SR44

Functions - Origin-set, Zero-set, Inch/mm, Automatic, Low Voltage alarm, Counting Value Composition Error alarm
