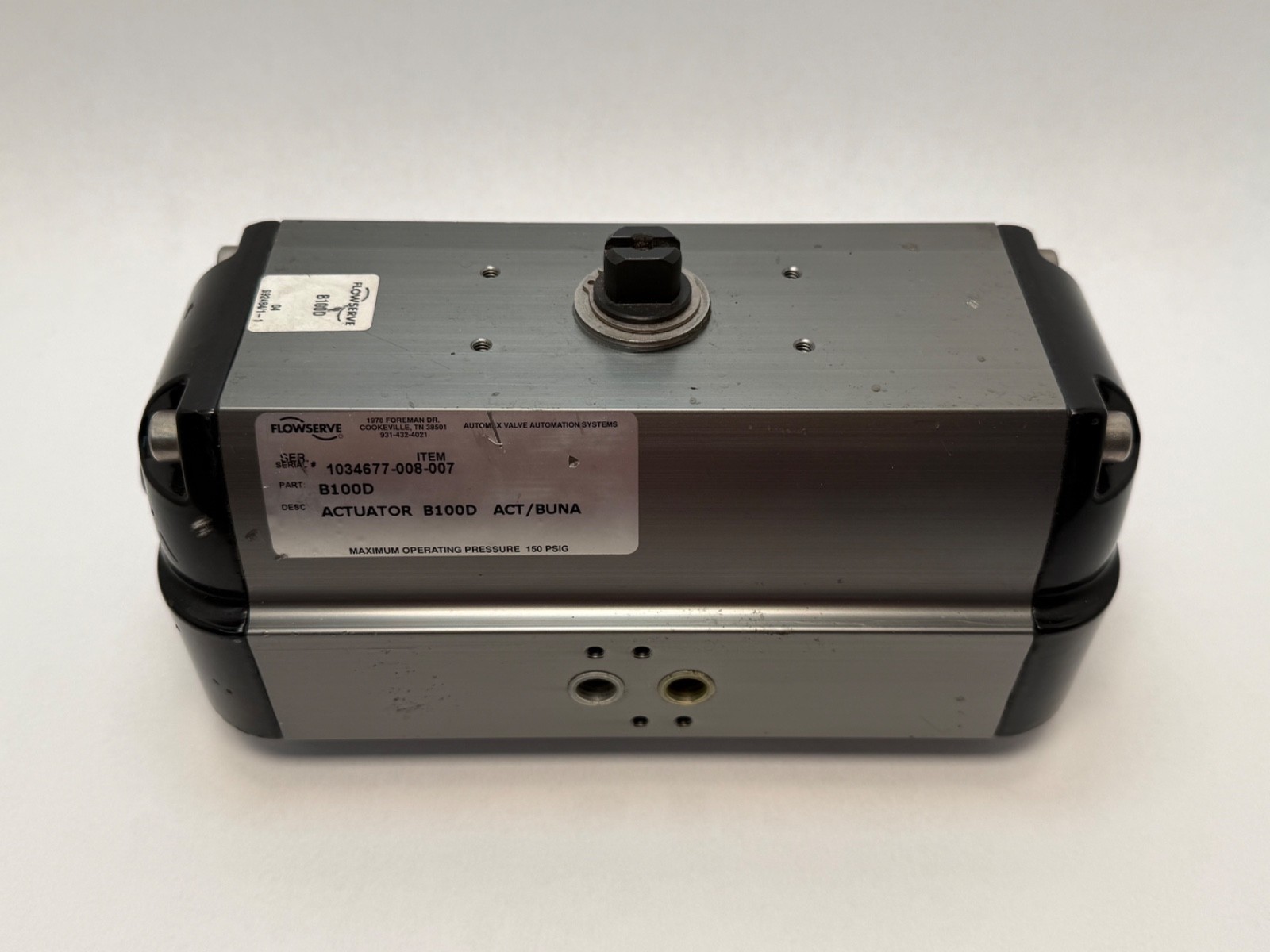

Flowserve Automax B100D Rack and Pinion Actuator Double Acting Buna 150 PSI:
$498.95

What this part is:

Flowserve Automax B100D double-acting pneumatic rack and pinion actuator from the Automax Supernova family. It turns quarter-turn valves such as ball, butterfly and plug valves. Unit Quantity: 1 Pc. Condition: new old stock, open box.

Decoding the designation:

B100 — Automax B-series Supernova actuator, size 100.

D — double acting. Air drives the pinion in both directions; there are no return springs.

Specifications:

Brand: Flowserve (Automax). MPN: B100D. Series: Automax Supernova. Actuation: Double acting. Seal Material: Buna (nitrile). Maximum Pressure: 150 PSI. Travel: 100° with adjustable limit stops in both directions of stroke. A double-acting actuator delivers constant torque across the full stroke.

Dimensions and mounting:

Valve Mounting: ISO 5211 platform with star drive. Accessory Mounting: NAMUR interface for solenoid valves, limit switches and positioners.

Frequently asked questions:Is the Flowserve Automax B100D double acting or spring return?

Double acting: air drives the pinion in both directions and there are no return springs.

What valve mounting does the B100D use?

ISO 5211 platform with star drive, plus a NAMUR accessory interface.

What pressure and seal material does the B100D have?

Maximum Pressure: 150 PSI. Seal Material: Buna (nitrile).
