Flexco RS187J36/900NC Alligator Staple Lacing with Hinge Pins (Box of 4 Sets) For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

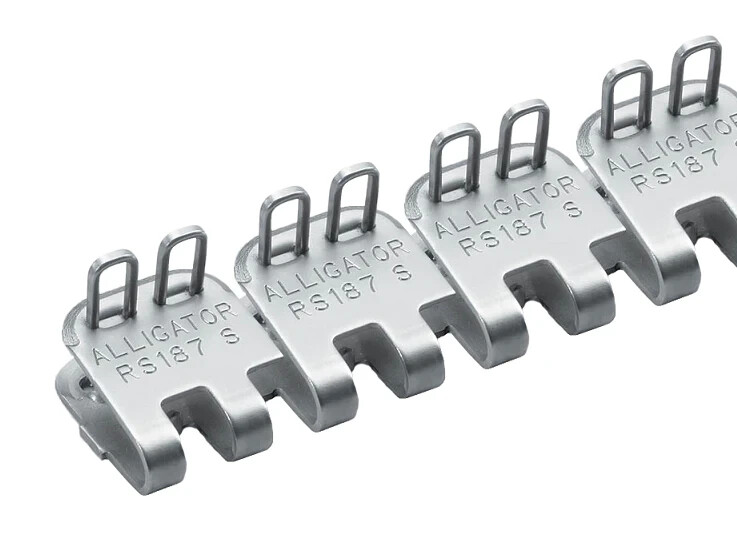

Flexco RS187J36/900NC Alligator Staple Lacing with Hinge Pins (Box of 4 Sets):
$309.98

PRODUCT DESCRIPTION

Flexco Alligator Ready Set Staple System

Designed for light and medium-duty synthetic carcass belting, the Alligator Staple fastener utilizes high tensile, stainless steel staple attachment, in conjunction with an extended plate design. This design separates the point of fastener penetration from the line of belt flexing to eliminate splice fatigue at the point of belt attachment.

Staple fasteners are furnished in strips with a bridge between each fastener plate. This strip design minimizes the chance of individual parts dislodging into the conveyed product. The one-piece design provides a stronger splice, greater resistance to impact damage, and a smoother, unrippled joint that simplifies hinge pin insertion.

Staples are hammer driven through the fastener and belt, working between the carcass fibers without severing them. The staples are then clinched cross-wise to the belt, so that belt tension does not pull against the staples to unclinch them.

Ordering NumberRS187J36/900NC

Item Code54594Belt Width (in.)36Belt Thickness (in.)3/16-1/4Fastener MaterialSteelHinge Pin IncludedYesHinge Pin MaterialNylon Covered Steel CableItem Code: 54521Belt Width (in.)24Belt Thickness (in.)1/8-3/16Fastener MaterialSteelHinge Pin IncludedYes

Hinge Pin MaterialNylon Covered Steel Cable

Each Set Contains:

4 Fastener Sets
4 Hinge Pins
Required Amount of Retaining Washers

Applications:

Package and Parts Conveying, Food and Sanitary Contact, Agricultural Harvesting and Handling, Recycling and Scrap Handling, Wood Products

Features:

Features a one-piece fastener strip with pre-inserted staples, reducing installation time by eliminating the need to handle and load individual staples.

Installation:

Alligator Ready Set installation is easy with a portable, lightweight application tool that can be carried to the job for on-site installation. Simply fit the fastener strip onto the belt end and secure with the special installation tool, then drive and finish set the staples for a strong, long-lasting splice.
RSC187 Alligator Installation Tool (2")
RSC187-4 Alligator Installation Tool (4")
RSC187-6 Alligator Installation Tool (6")
RSC187-12 Alligator Installation Tool (12")
RSC187-24 Alligator Installation Tool (24")

Fastener SizeBelt Thickness
