Flexcharge PV7D 7 Amp Charge Controller for Photovoltaic Charging System:
$90.20

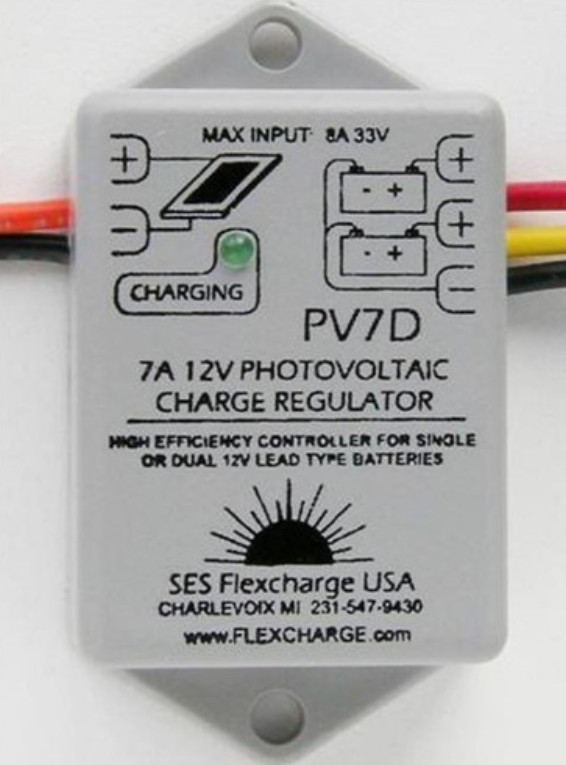

Flexcharge PV7D
7 Amp Charge Controller for 12V Photovoltaic (Solar Only) Systems

US‑Manufactured • Long Service Life • Proven Performance

We are a stocking Flexcharge dealer listed on the official SES Flexcharge dealer page.

Product Overview

The Flexcharge PV7D is a compact, high‑efficiency shunting regulator designed for 12V solar‑only charging systems with a maximum charging current of 7 amps. It supports both single and dual battery banks and is available in special‑order 6V or 24V versions.

With a tiny footprint of just 1.5\" × 2\", the PV7D is engineered for marine, off‑grid, and harsh‑environment applications where reliability and low standby consumption are critical.

Compatible with Flooded, AGM, and Gel lead‑acid batteries. Not for use with lithium batteries or generator‑based charging systems.

Efficiency

The PV7D uses an all solid‑state design with extremely high‑efficiency components. Because so little heat is generated, no heat sink is required. Like the NC25A, the controller draws only 4mA to operate its circuitry.

Dependability

Designed for long‑term, unattended operation, the PV7D includes:

Extensive transient voltage protection
High steady‑state voltage tolerance (unaffected by continuous input up to 33V)
Fully sealed electronics for 100% humidity and salt‑spray environments
Marine‑grade durability

The PV7D is built for true “Install and Forget” reliability.

Simple to Use

The controller includes an easy‑to‑read charge indicator and requires no user adjustments—factory settings ensure proper charging for all supported lead‑acid battery types. Wiring is done via four pigtail leads (solder or connect to a terminal strip).

Expandable Design

The PV7D can be expanded to regulate 35A, 60A, 100A, or up to 500A of charging current. Expansion also increases charging efficiency to 99.95%.

Flexcharge’s Energy State Taper Charging algorithm reduces gassing, supports micro‑equalization, and improves battery longevity across all lead‑acid chemistries.

Key Features

Cost‑effective charge controller for photovoltaic systems
Reverse polarity protected (requires fuse)
Precision surface‑mount construction
Hermetically sealed/potted electronics for salt air and high humidity
High‑efficiency components in a very small enclosure
Safely micro‑equalizes Flooded, AGM, and Gel batteries
Expandable up to 500A charging capacity
All solid‑state design for long life
Factory calibrated—no user adjustments
2‑year repair or replacement warranty
Charge indicator shows when current is flowing
Prevents nighttime backflow into solar panels

PV7D Operating Characteristics (12V Unit) Parameter Min Typical Max Input Voltage (BAT or PV) 0V — 30V Programmed Overshoot Voltage — — 16.3V Charging Current 4mA — 7A Standby Current (Night) 2mA 2.6mA 3mA Standby Current (Charging) 4mA 5mA 6mA Charge Disconnect Voltage 14.20V 14.25V 14.30V Charge Reconnect Voltage 13.50V 13.60V 13.70V Voltage Drop Across Controller 0.20V 0.40V 0.56V Transient Surge Suppression — — 600W Humidity 5% 60% 100% Operating Temperature ‑40°C 25°C 60°C MTBF (Mean Time Between Failures) — — 30 Years Case Size 1.25\" H × 1.5\" W × 3.0\" L
