Flexcharge NC25A-12 Solar Wind Hydro Turbine Charge Controller Hybrid 12 Volt US:
$118.70

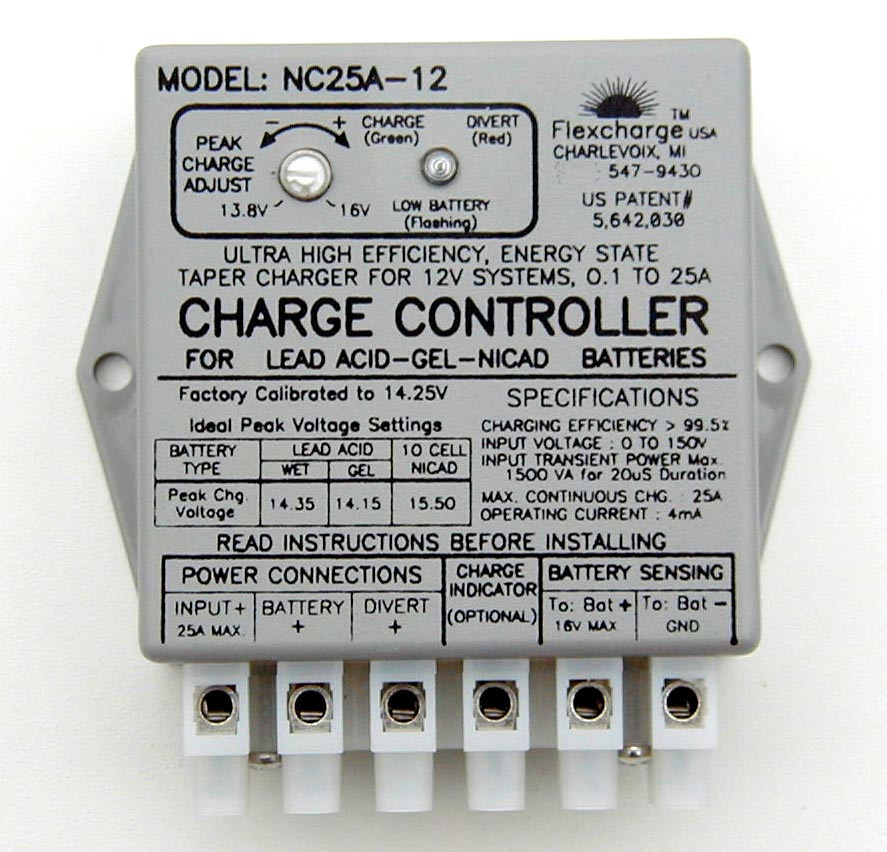

Flexcharge NC25A‑12
Solar • Wind • Hydro Charge Controller – 12 Volt Hybrid System

US‑Manufactured • Long Service Life • Proven Performance

We are a stocking Flexcharge dealer. All NC25A controllers include the full 5‑Year Manufacturer Warranty.

For GEL, AGM, and Flooded Lead‑Acid Batteries
Not for Lithium Batteries

Product Overview

The Flexcharge NC25A‑12 is an ultra‑high‑efficiency series regulator designed for solar, wind, and hydro (permanent magnet generator) charging systems from 0.1A to 25A. It includes a built‑in Charge Divert feature, allowing excess charging energy to be redirected to auxiliary loads or used to prevent wind turbine overspeed.

The NC25A can also be expanded to regulate 100A to 1000A+ charging sources and can charge multiple battery banks when used with standard battery isolators.

Industry‑Leading Efficiency

The NC25A holds a U.S. Patent for its innovative charging circuitry. While typical charge controllers operate around 96–97% efficiency, the NC25A achieves:

99.5% typical charging efficiency
99.9% peak efficiency
Only 4mA operating current

This means more of your solar/wind energy reaches your batteries instead of being wasted as heat. The NC25A effectively gives you the equivalent of an extra solar panel’s worth of recovered energy.

Dependability

Designed for remote, harsh, and mission‑critical environments, the NC25A includes:

Extensive transient voltage protection
High steady‑state voltage tolerance (unaffected by continuous input up to 100V)
Reverse polarity protection on battery connections
Fully sealed electronics for 100% humidity and marine environments
Install‑and‑Forget reliability

Simple to Operate

The NC25A includes:

Charge and Divert indicator LEDs
Peak charge voltage adjustment (13.8V–15.9V)
Easy‑access terminal strip for wiring

Monitoring equipment (voltmeters, ammeters) can be added externally if desired, but the controller itself is optimized for ultra‑low power consumption and long‑term reliability.

Key Features

5‑Year Warranty
Completely sealed electronics for marine/outdoor mounting
Low battery indicator (flashing red LED)
Arc‑reduction circuitry for long relay life
99.5%+ charging efficiency from 0.5A to 30A
Charges batteries from 0 volts with full power
25A charge capacity (expandable to 2000A)
25A charge divert circuit with stable switching
Perfect for motor‑type divert loads (fans, pumps, etc.)
Works accurately through battery isolators
Consumes less than 5mA while charging or at night
Reduces electrolyte depletion by up to 90% vs. PWM controllers
Remote battery voltage sensing
UL‑rated enclosure and UL‑recognized components

NC25A‑12 Operating Characteristics Parameter Min Max Charge Input Voltage 0 VDC 140 VDC Allowable Battery Voltage (12V) 0 VDC 16 VDC Standby/Operating Current 2 mA 7 mA Charging Current 0.005 A 25 A Short‑Term Overcurrent — 50 A (½ sec) Total Charging Efficiency 98.9% 99.8% Charge Divert Current 0 A 25 A Transient Surge Protection — 1500 VA Operating Temperature ‑40°C +60°C Case Dimensions 4" W × 3.75" H × 1.5" D

Need help selecting the right controller or designing a hybrid system?
We support wind, solar, hydro, marine, and off‑grid applications—reach out anytime.
