On eBay Now...Fit Generac Generator Potted Voltage Regulator PCB 0F97190SRV 083049 81918 83049 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

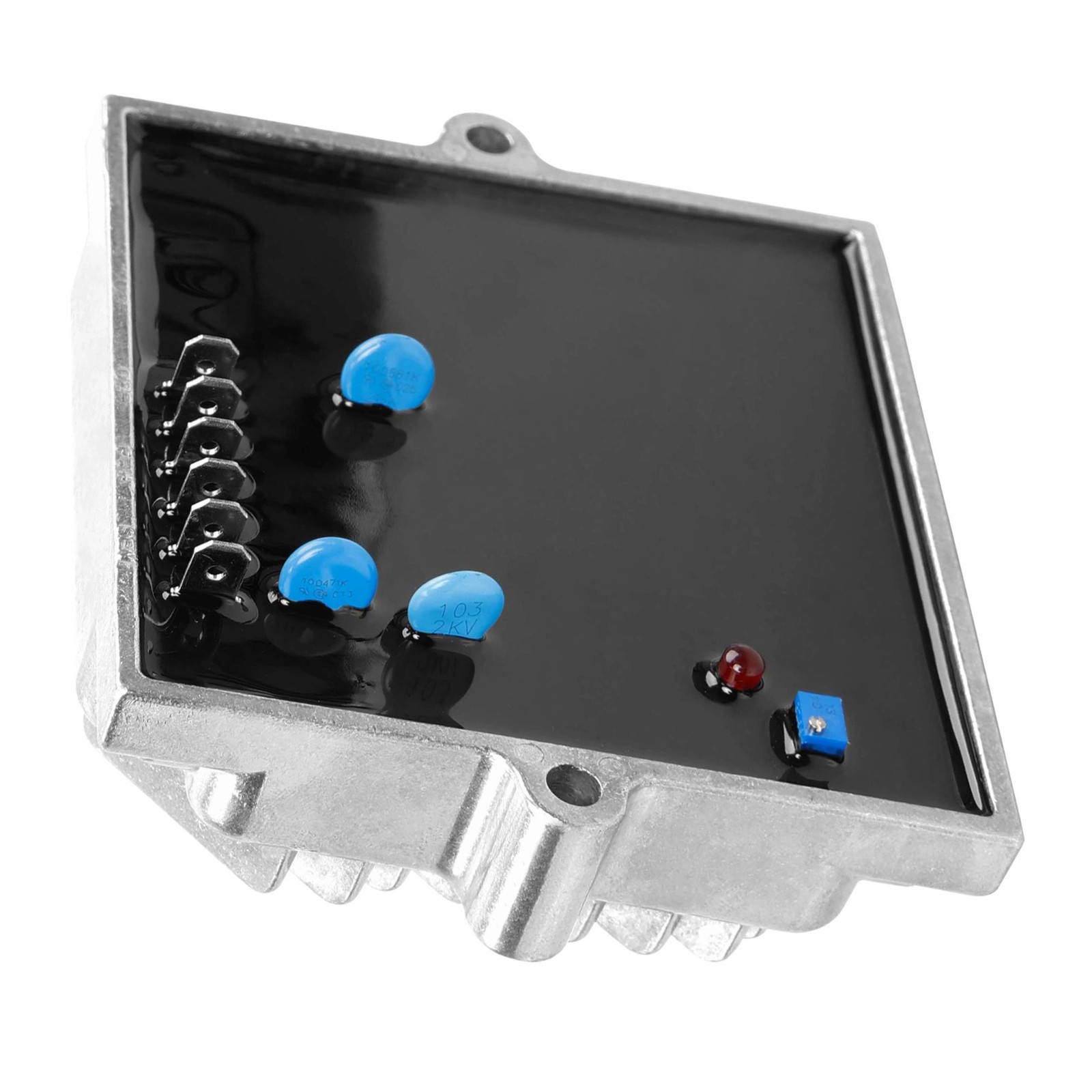

Fit Generac Generator Potted Voltage Regulator PCB 0F97190SRV 083049 81918 83049:
$55.99
l【Compatible Models】 Replacement for 81918, 83049, 083049 0830490SRV, 83049GS, SRV83049, F9719, 0F9719, 0F97190SRV models. 0F9719, 083049 and 083048 are virtually the same, except the 083048 has no cooling fins on the back of the regulator. These regulators can be interchanged, but the 083049 and 0F9719 are thicker due to the cooling fins and will require longer bolts to replace an 083048.
l【Wide Application】This generator voltage regulator is to be used in all newer production R.V. products except variable-speed units. It is also used on air-cooled home stand-by units. The newly-designed voltage regulator has a metal potentiometer and is no longer prone to failing into a high voltage fault.
The 0F97190SRV is an Automatic Voltage Regulator (AVR) used to regulate the output voltage of a generator. The AVR is a crucial component of the generator system, ensuring that the output voltage remains stable despite load and input conditions changes.
Replaces OE#:
83049, 81918, 083049
0F97190SRV, F9719, 0F9719
0830490SRV, SRV83049, 83049GS
[Note: The 83049 series AVR has been discontinued, and replaced with 0F97190SRV. It looks virtually identical and works the same at a lower cost!]
Note:The regulator needs to be calibrated before using a generator.
Main Functions
1. Voltage Regulation: Maintains the generator's output voltage at a set value, typically within the ±1% range.
2. Automatic Adjustment: Automatically adjust the generator's excitation current based on load changes to stabilize the output voltage.
3. Voltage Protection: Provides overvoltage and undervoltage protection to prevent the output voltage from being too high or too low.
4. Load Response: Quickly responds to load changes, ensuring instantaneous voltage stability.
5. Frequency Detection: Monitors the generator's frequency to ensure operation at the rated frequency.
6. Temperature Protection: Features temperature compensation to prevent the AVR from overheating.
Package Included:1X Generac Generator Automatic Voltage Regulator
Quality Guarantee:12-Month Warranty
