Fisher 299H Gas Pressure Regulator 10 PSIG Set 150 PSI Max In External Reg 3/4\":
$1450.00

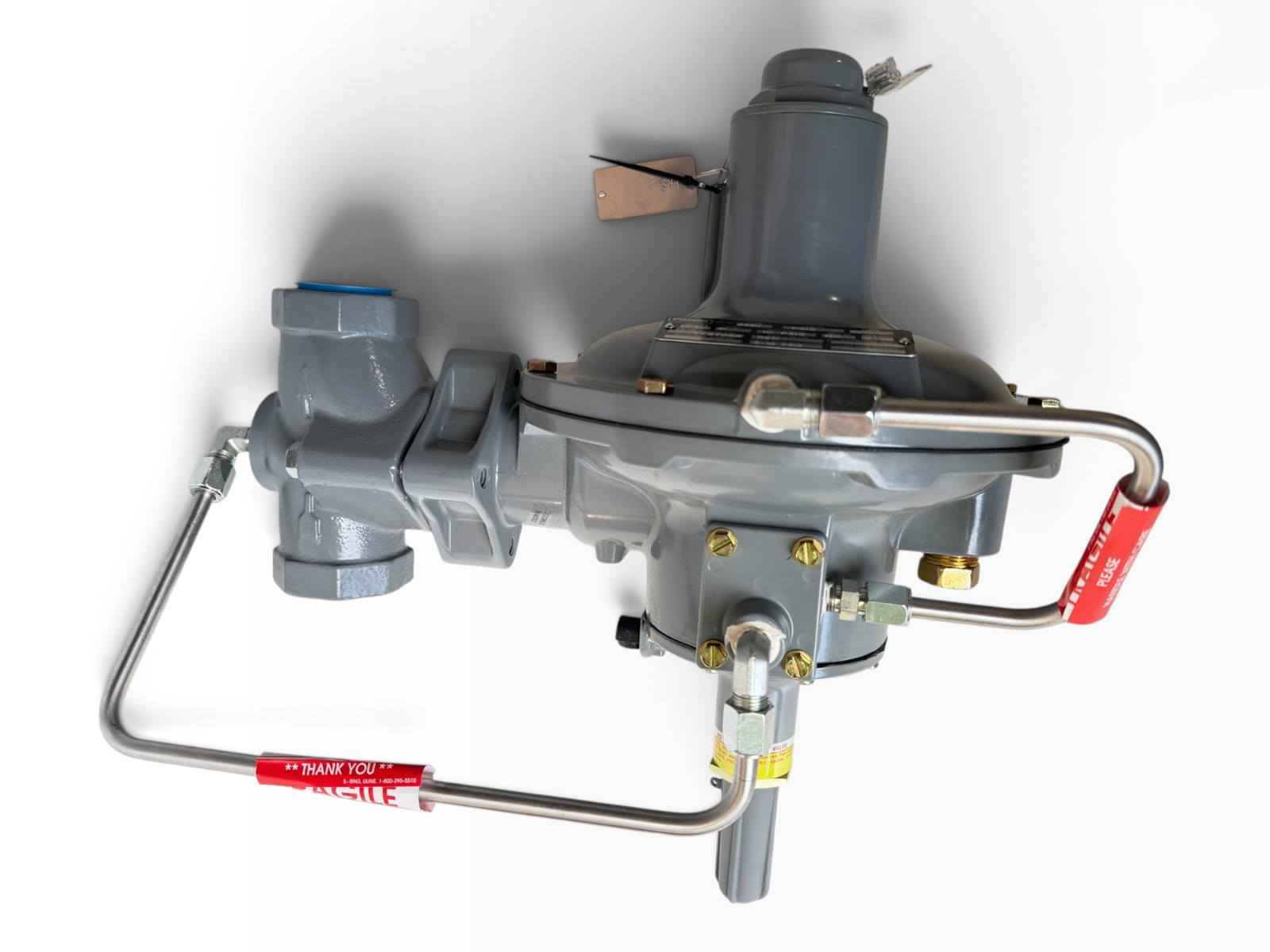

Exact identification from the regulator nameplate and shipping label:

Brand: Fisher
Manufacturer: Fisher / Emerson Process Management
Series: 299H
Type: 299H
Commerce Number / Model Code: 299H-1131-328179
Serial / FS Number: R053737066
Pressure Units: PSIG
Registration: EXT / External Registration
Port: P
Set Pressure: 10 PSIG
Regulator Spring Range: 5-16 PSIG
Spring Color: Red
Maximum Inlet Pressure: 150 PSIG
Maximum Outlet / Casing Pressure: 66 PSIG
Date Marking: 05AUG15
Tag: PRS-3
Country of Origin: Mexico
Quantity: 1

Additional shipping / identification numbers visible on the original package:

Representative Order Number: 004-B002277491
Customer Order Number: 15-933L-06
Inventory Number: 299*15369855
Sales Order Number: 1484899
Line Number: 1

PRODUCT TYPE / FUNCTION

The Fisher 299H is a pilot-operated pressure reducing regulator designed to provide controlled outlet pressure over a range of gas distribution, industrial, and commercial applications.

The 299H uses an integral pilot mounted to the actuator casing. In operation, inlet pressure is used as the operating medium and pilot action controls loading pressure on the main diaphragm to regulate downstream pressure.

This specific regulator is marked:

SET PRESS: 10 PSIG
REGULATOR SPG RANGE: 5-16 PSIG
SPG COLOR: RED
REGIST: EXT
MAX IN: 150 PSIG
MAX OUT: 66 PSIG

PRESSURE REGISTRATION

This unit is specifically marked EXT, indicating external pressure registration.

For an externally registered 299H, downstream outlet pressure is transmitted through a downstream control line to the pilot / actuator sensing system.

The 299H manual identifies a 3/4 NPT downstream control line connection for external or dual registration configurations.

TECHNICAL SPECIFICATIONS

Series: 299H
Regulator Type: Pilot-Operated Pressure Reducing Regulator
Pressure Registration: External
Set Pressure: 10 PSIG
Outlet Pressure Spring Range: 5-16 PSIG
Control Spring Color: Red
Maximum Inlet Pressure: 150 PSIG
Maximum Casing / Emergency Outlet Pressure: 66 PSIG / 4.5 bar
Pressure Control Accuracy: ±1% of absolute control pressure
Minimum Differential Pressure for Full Stroke: 1.5 PSID / 0.10 bar
Control Line Connection: 3/4 NPT
Temperature Capability: -20°F to 150°F (-29°C to 66°C)
Pressure Registration Options for Series: Internal, External, or Dual
Approximate Series Weight: 21 lb / 10 kg

The 299H manual lists the following available outlet pressure ranges depending on installed spring:

3.5-6 in. w.c.
5-9 in. w.c.
7-20 in. w.c.
16-40 in. w.c.
1-3.25 PSIG
2.75-6 PSIG
5-16 PSIG
14-35 PSIG
30-60 PSIG

This exact regulator is equipped with the RED 5-16 PSIG control spring and is set at 10 PSIG.

MAXIMUM INLET PRESSURE / ORIFICE INFORMATION

The instruction manual specifies maximum operating inlet pressure according to installed orifice size:

1/4 × 3/8 in. – 175 PSIG
3/8 in. – 175 PSIG
1/2 in. – 175 PSIG
3/4 in. – 150 PSIG
7/8 in. – 125 PSIG
1 in. – 100 PSIG
1-3/16 in. – 80 PSIG

This regulator nameplate is specifically stamped MAX IN 150 PSIG.

The visible nameplate does not directly state the installed orifice diameter, so no specific orifice size is claimed in this listing.

BODY / CONNECTION OPTIONS

The 299H Series manual lists body sizes including:

1-1/4 in.
1-1/2 in.
2 in. / DN50

Available construction varies by configuration and includes NPT and flanged versions.

The exact main body connection size and body material are not clearly identified on the visible nameplate photographs, so buyers should verify the physical connections shown in the photos against their existing installation before purchase.

APPLICATIONS

Suitable applications for the 299H Series include gas pressure regulation in:

Natural gas distribution
Industrial gas systems
Commercial gas systems
Pressure reducing stations
Building gas service
Process gas regulation
Gas pressure control assemblies

Compatibility and sizing should be verified using the exact Fisher 299H model code, pressure requirements, flow requirements, gas type, connection size, and system design.

INCLUDED DOCUMENTATION

Original Fisher / Emerson 299H Series Pressure Reducing Regulators instruction manual is shown with the unit.

The manual includes:

Specifications
Pressure range tables
Operating principles
Internal / external / dual registration diagrams
Startup procedures
Adjustment instructions
Maintenance procedures
Pilot assembly diagrams
Main valve parts diagrams
Optional P590 filter information
299HR information
299HS / VSX-2 slam-shut information
Parts lists

Note: The manual covers multiple 299H Series configurations. Specifications stated for this listing are limited to values clearly applicable to this exact 299H unit or explicitly identified as general Series 299H specifications.
