On eBay Now...FRER MCOUP4 Programmable Universal Transducer For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
FRER MCOUP4 Programmable Universal Transducer:
$399.00

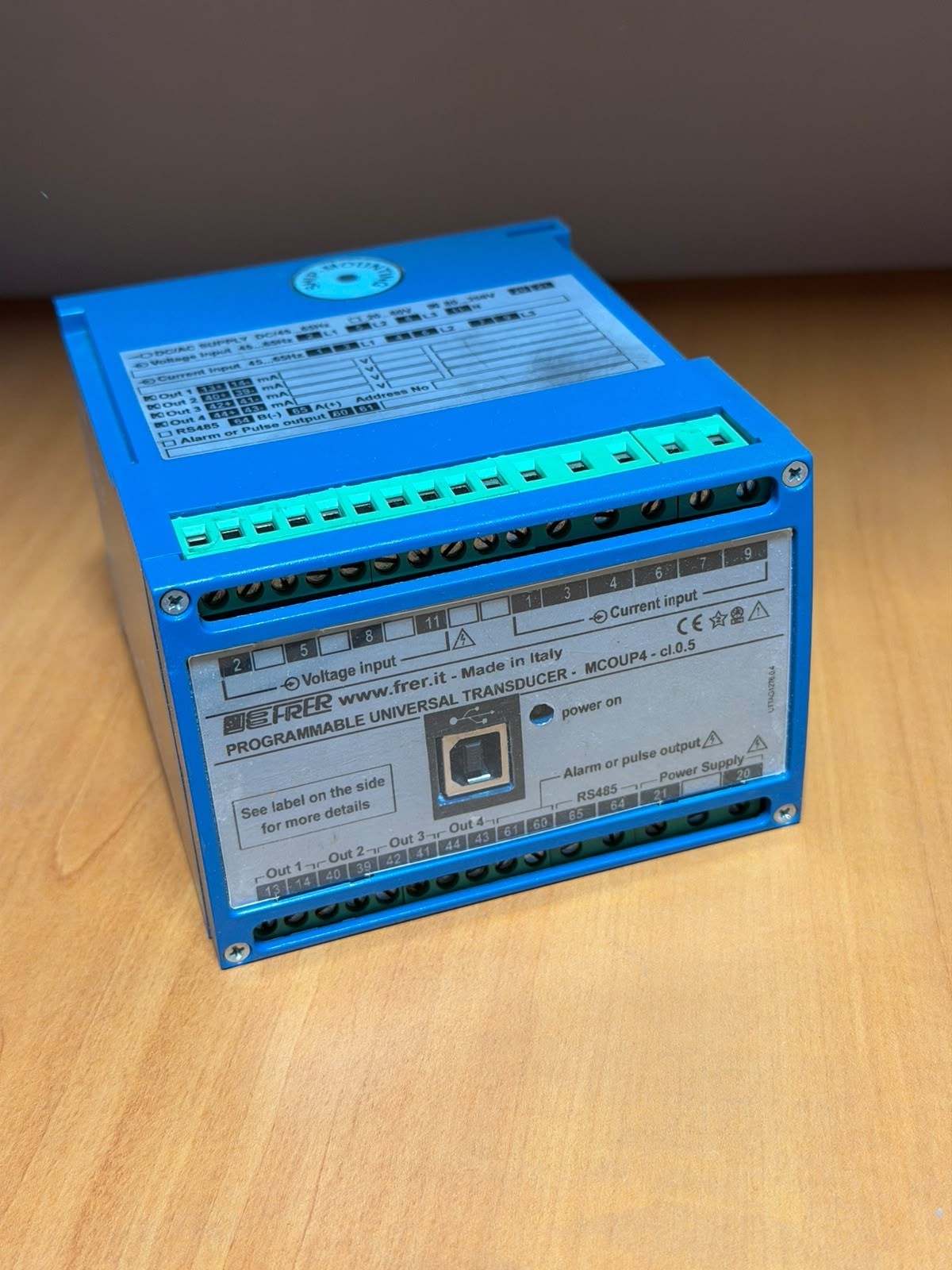

FRER MCOUP4 — Programmable Universal TransducerThe FRER MCOUP4 is a 4-output programmable universal AC measuring transducer for electrical measurement systems. It can be configured for single-phase or three-phase, 3-wire or 4-wire systems, including balanced or unbalanced loads and distorted waveforms.
Technical TypeProgrammable Universal Measuring TransducerNumber of Outputs4 analogue outputsAccuracy Class0.5System Configuration1-phase / 3-phaseConnection3-wire or 4-wireLoadBalanced or unbalancedWaveformSuitable for distorted waveformsNominal Voltage Input100–400 VACNominal Current Input1–5 AInput Range5–120% Un / InCalibration Range50–120% PnOperating Frequency45–65 HzResponse Time<200 msResidual Ripple<0.5% p-pContinuous Overload1.2 × Un / 2 × InShort-Time Overload2 × Un / 20 × In for 300 msVoltage Circuit Consumption<0.5 VAOutput TypeProgrammable V or mAOutput ScalingIndependently programmable for each outputCommunication OptionRS-485 / Modbus RTUAdditional Output OptionPhoto-MOS programmable alarm or energy pulse retransmissionProgramming InterfaceIsolated USBMountingDIN rail / panel mountingAuxiliary Supply – H version80–260 VAC/DC, 12 VA / 5 WAuxiliary Supply – L version20–60 VAC/DC, 6 VA / 6 WAnalogue Output Isolation700 V RMS / 60 s between analogue outputs
FRER MCOUP4 Programmable Universal Transducer
$399.00
