Exfo AXS-110-12CD-23B-EI OTDR SM MM 850/1300/1310/1550nm Fiber Access for Sale

Recent Threads

On eBay Now...

Exfo AXS-110-12CD-23B-EI OTDR SM MM 850/1300/1310/1550nm Fiber Access For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Exfo AXS-110-12CD-23B-EI OTDR SM MM 850/1300/1310/1550nm Fiber Access:
$2999.04

Visit Our StoreExfo AXS-110-12CD-23B-EI SM MM Fiber Access OTDRItem Condition:Excellent condition

We classify excellent condition items to be used items that showvery minor signs of use when viewed up close. From a distance theymay look new.

Item Description

Exfo AXS-110-12CD-23B-EI SM MM Fiber Access OTDR with all accessories seen in photographs. Unit is used and in excellent condition with some signs of previous use. Thoroughly tested to be in working order with a 60-Day warranty. Ships from Ontario, Canada with an expedited service. For questions please contact us. We appreciate your business!

Product Features:

The AXS-110 Series from EXFO, features a set of rugged, lightweight, handheld OTDRs optimized for access/FTTx and LAN/WAN network testing. With a single unit for testing singlemode as well as 50 and 62.5 um multimode fiber, and wavelenghts of 850, 1300, 1310, 1550 nm with respective dynamic ranges of 24, 25, 32, and 30 dB, the AXS-110 series covers the whole range of short-haul OTDR test applications.

The series provides complete connectivity flexibiliy (with USB stick compatability and USB cable download), top user-friendliness (offering one-touch testing, summary screen, macrobend finding) and an unrivaled event dead zone of 0.8 m for easy location and characterization of all function: one-touch testing for top user-friendliness

8-hour power autonomy

Lightweight: 1 kg

USB port (memory-stick compatible) for easy data transfer

Large internal memory (up to 500 results)

Transreflective color display for viewing clear results under bright sunlight

Superior automated analysis for a better, easier and faster diagnosis

Automatic pass/fail analysis and macrobend locating

Auto-zoom on (nm)850/1300/1310/1550Dynamic range (dB)24/25/32/30Pulse width (ns)Multimode: 5, 10, 30, 100, 275, 1000
Singlemode: 5, 10, 30, 100, 275, 1000, 2500, 10 000Event dead zone (m)0.8Attenuation dead zone (m)3.5/4.5/4/4.5Linearity (dB/dB)±0.03Loss threshold (dB)0.01Loss resolution (dB)0.01Sampling resolution (m)Multimode: 0.08 to 2.5; singlemode: 0.08 to 5.0Sampling pointsUp to 64 000Distance uncertainty (m)±(0.75 + 0.0025 % x distance + sampling resolution)Distance range (km)Multimode: 0.1 to 40; singlemode: 0.65 to 260Typical real-time refresh (Hz)4Memory capacity500 tracesMeasurement timeUser-definedStable source output power (dBm)Multimode: –3; singlemode: –2.5Visual fault locator (optional)Laser, 650 nm ± 10 nm
CW typical Pout = 1.4 mW open beamPackage Includes

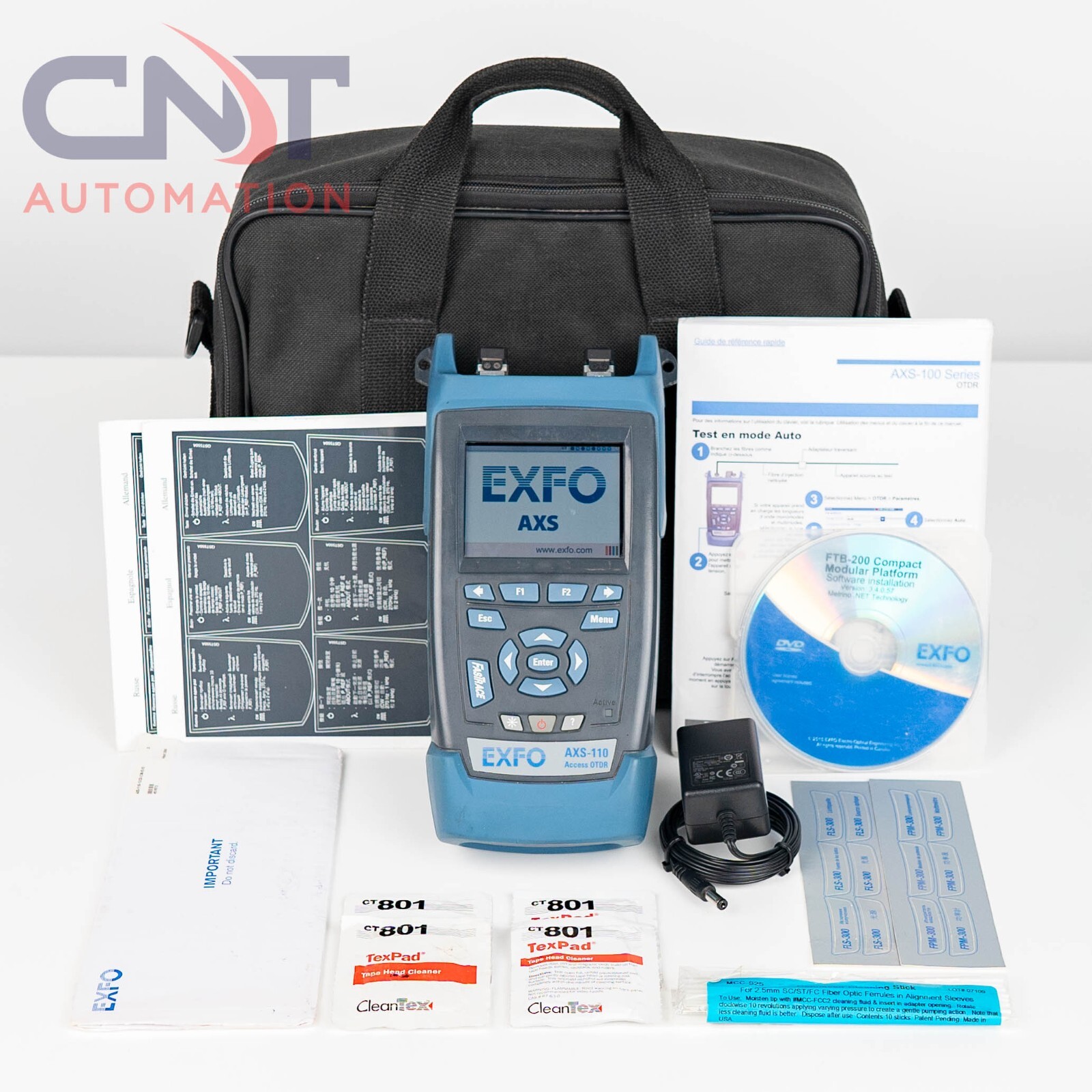

Exfo AXS-110 Fiber Access OTDR Exfo Soft Carrying Case AC Power Supply Charger 2 x Instrument Stickers In Six Languages Connector Cleaning Sticks Cleaning Wipes Exfo AXS-110 Compliance Certificate Calibration Certificate Exfo AXS-110 Quick Reference Guide FTB-200 Compact Modular Software Installation CD
