Ever Elettrronica MT23HE22015M402 Stepper Motor for Owandy I-Max Pro:
$239.99

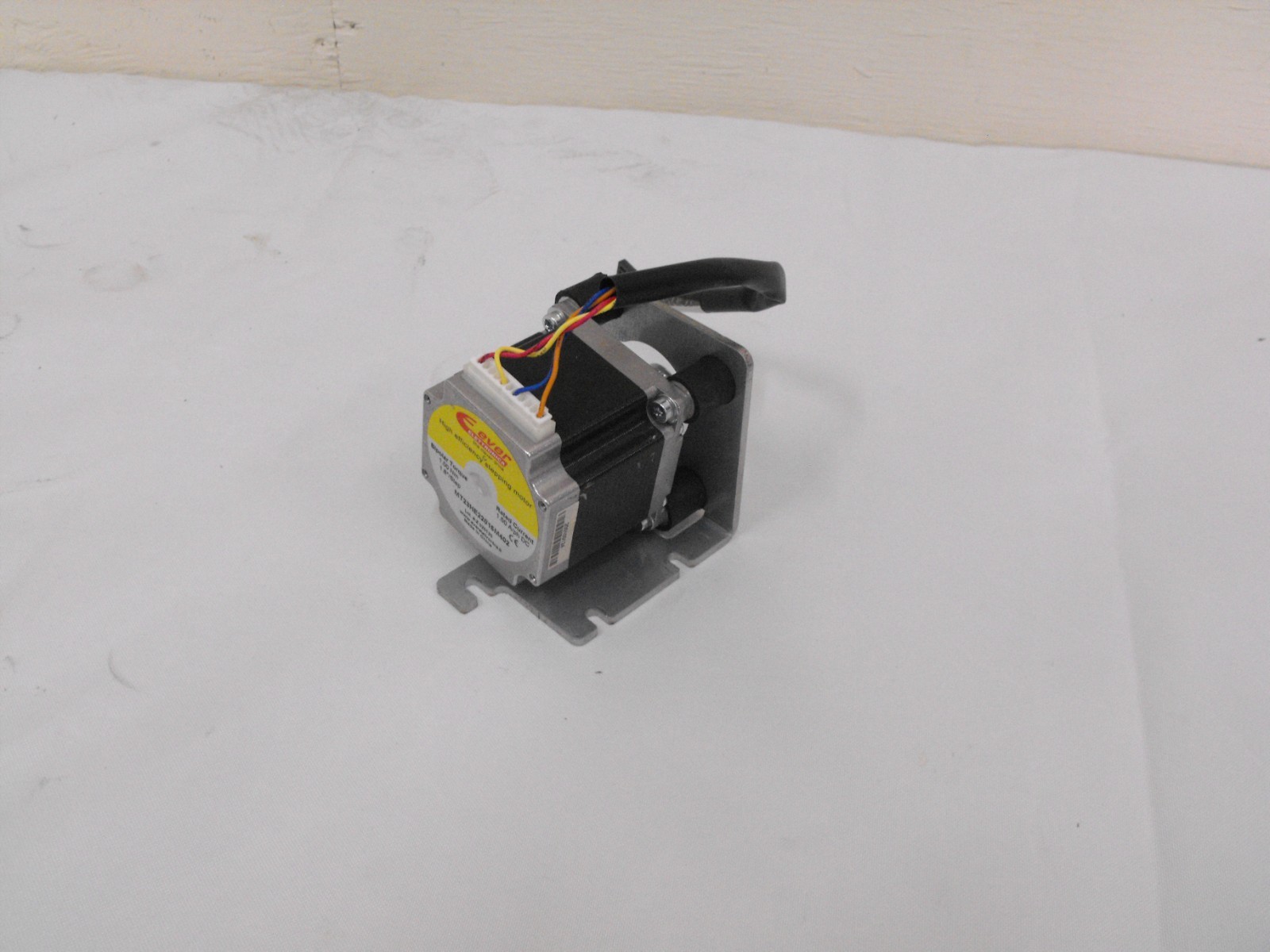

Up for sale is an Ever Elettronica MT23HE22015M402 Stepper Motor. It's in excellent condition, as shown in the pics. It was acquired from a working medical facility that kept it as surplus for an Owandy I-Max Pro. It comes exactly as shown.
This unit ships via postage. Expedited shipping is available if needed. Local pickup from Fairfax, VA is available as well.
The Ever Elettronica MT23HE22015M402 is a 2-phase high-efficiency hybrid stepper motor built on a NEMA 23 (56 mm square) flange, offering a minimum bipolar holding torque of 100.0 Ncm (1.00 Nm) and a 1.50 A/ph rated current, designed for industrial automation and precise motion control.
Physical & Mechanical Specifications:-Flange Size: NEMA 23 (56 x 56 mm square)-Body Depth: 53.3 mm-Shaft Type: Single shaft-Protection Class: IP40-Weight: ~0.75 kg-Rotor Inertia: 286 g·cm²-Max Radial Load: 75 N (at 20 mm from front flange)-Max Axial Load: 15 N
Electrical Characteristics:-Bipolar Holding Torque: 100.0 Ncm (1.00 Nm) min.-Rated Current: 1.50 A/ph-DC-Rated Voltage: 3.36 V-Phase Resistance: 3.40 Ohm (±10%)-Phase Inductance: 9.20 mH
Operational Features:-Step Angle: 1.8°Step Accuracy: ±5%-Insulation Class: Class B (130°C max)-Ambient Temperature Range: -20°C to +50°C-Max Temperature Rise: 80K (at nominal current)-Insulation Resistance: 100 MOhm min. at 500 Vdc-Dielectric Strength: 500 Vac for 1 minute
Seller Name: Fairfax ProjectsSeller Location: Fairfax, VASeller Website (has contact form): www.fairfaxprojects.comFairfax Projects Inventory ID: 2013
