Product use: electronic circuit board inspection, industrial inspection, textile testing, clock mobile phone repair, skin inspection, scalp inspection, Anatomical laboratory test, printing inspection, teaching and research tools, precision object magnification measurement, reading help, hobby research, etc.
Item Specification:
Model Name: DM4
Screen Size: 4.3 inch high screen
Sensors: high performance optical wafers
Main control chip: special master control 16Bit DSP
The Biggest Pixel: 1080P
Lensoptical size: 1/6.5"
Photo Resolution: VGA; 1.3/3/2M
Video Resolution: VGA; 720P;
Data Format: JPG/AVI
for Focus mode: Manual operation
Picture Format: JPG/BMP
Magnification times: 1000
Light Source: 8 LED lights (adjustable brightness)
for Focus Range: 10~40mm(to watch the distant view)
PC resolution and image transfer rate: 640*480/26fps ,1280*720/26fps
White balance Automatic
Exposure Automatic
PC Operating System: Windows xp,win7,win8.1,win10
Support Language: 12 languages (English, Simplified Chinese, Traditional, Chinese, Portuguese, Japanese, French, German, Korean, Italian, Netherlands, Russia, Spain, Arabic)
Lens Structure: 2G+IR
Aperture: F4.5
Lens Perspective: 16°
Interface and signal transmission method: Micro/usb2.0
Operating Temperature: -20°C ~ +60°C
Working Humidity: 30%~85%Rh
Operating Current: 330mA
Power Consumption: 1.65W
Color: Black
Item Size: 16*12*6.5cm
Thenthe Elikliv EDM4 Digital Microscope is the right choice for you.

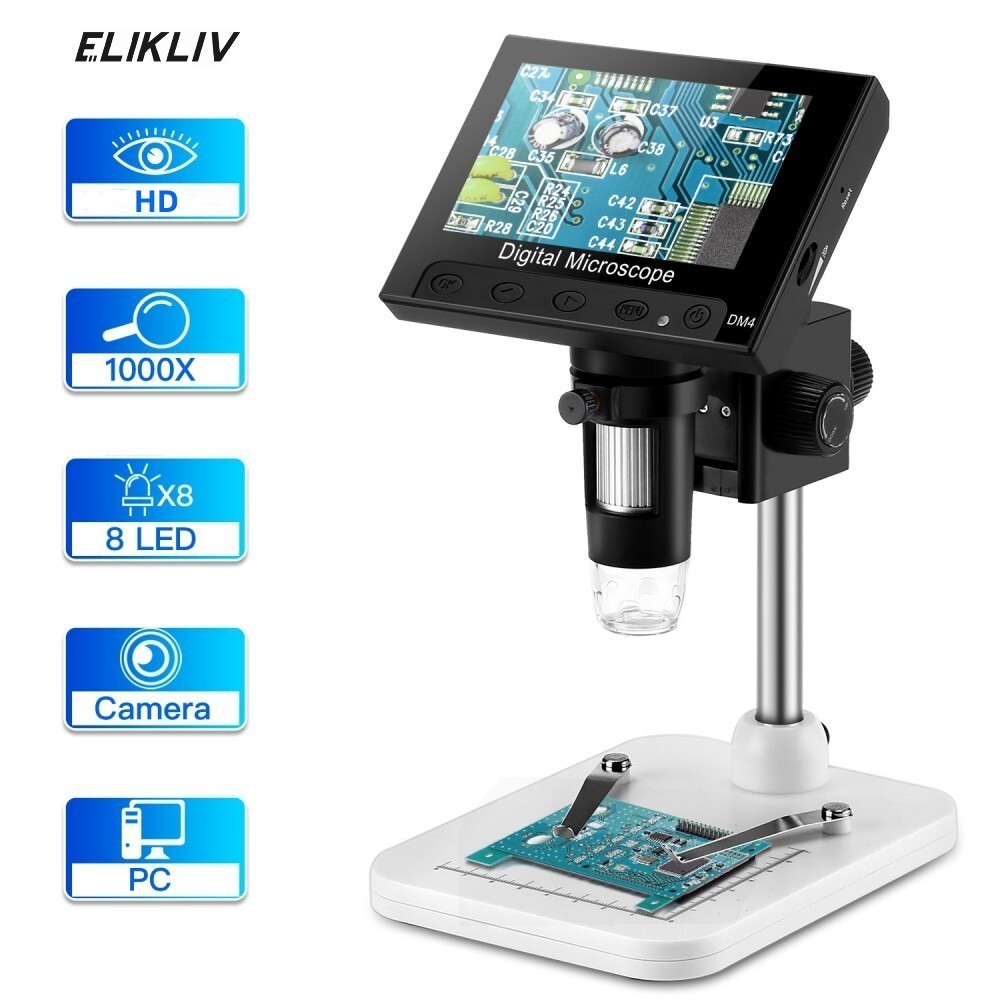

Elikliv 4.3" LCD Digital Microscope 1000X USB Coin Microscope Soldering Used
