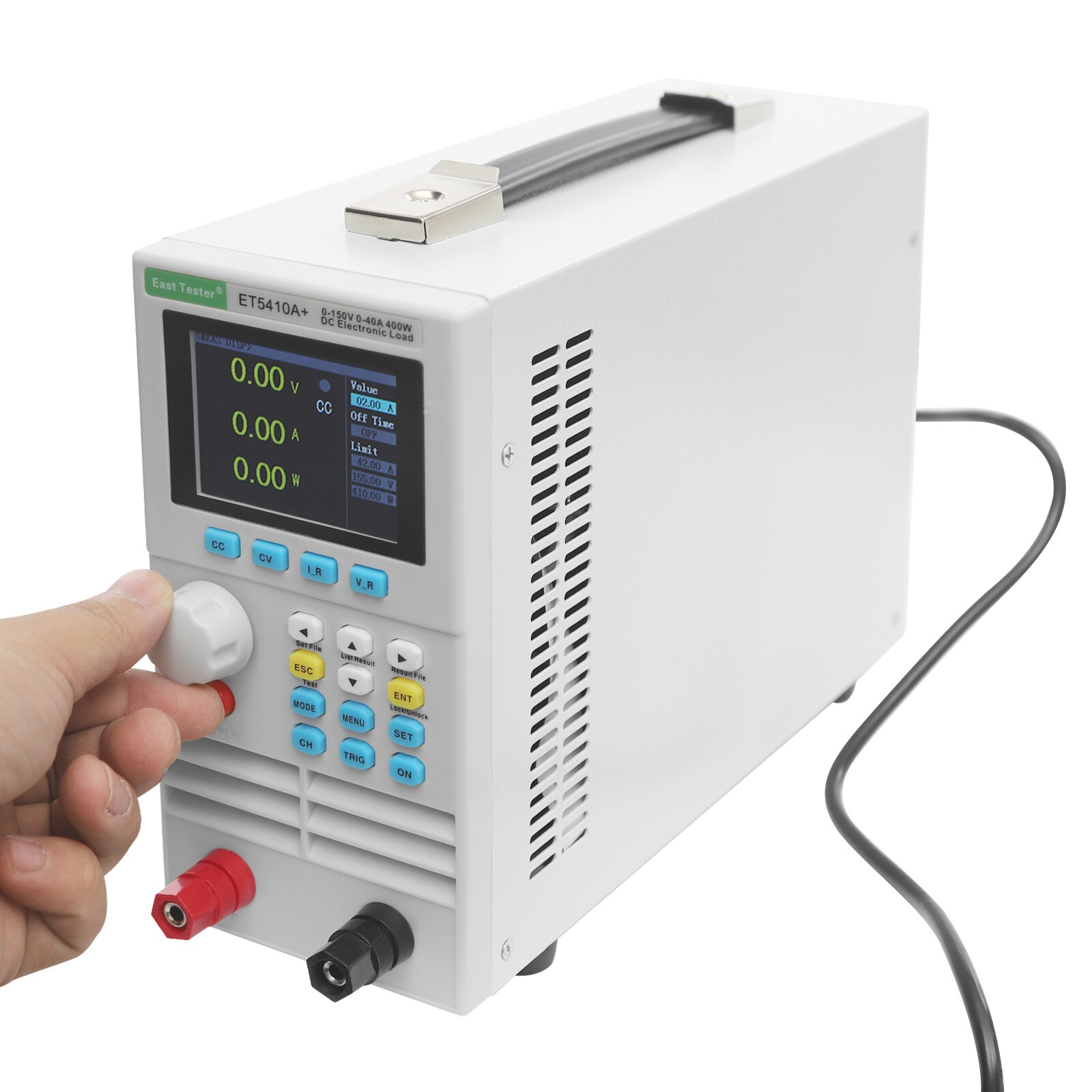

Electronic Load Tester 400W 150V 40A Single Channel Programmable Load Tester:
$162.47

Electronic Load Tester 400W 150V 40A Single Channel Programmable Load Tester

Application

The product is mainly used for testing lighting fixtures, chargers, batteries, internal resistance, switching power supplies, mobile power supplies, lithium batteries, energy vehicles, LED driver power supplies, etc. It is also suitable for testing on production lines and aging process testing.

Specifications

Color: White

Material: Aluminum, PCB Electric Board, Silicone

Process: Screen Printing

Mount Type: Free Standing

Assembly Required: No

Channel Type: Single Channel

Plug Standard: US Standard

Power: 400W

Input Voltage: 0-150V

Input Current: 0-40A

Constant Voltage Mode:

Range: 0.1-19.999V, 0.1-150.00V

Resolution: 1mV, 10mV

Accuracy: ±(0.05%+0.02%FS)

Constant Current Mode:

Range: 0-3.000A, 0-40.00A

Resolution: 1mA, 10mA

Accuracy: ±(0.05%+0.05%FS)

Constant Resistance Mode:

Range: 0.05Ω-1kΩ, 1kΩ-4.5kΩ

Resolution: 10mΩ, 100mΩ

Accuracy: ±(0.1%+0.5%FS)

Constant Power Mode:

Range: 0-400W

Resolution: 10mW

Accuracy: ±(0.1%+0.5%FS)

Dynamic Test Function:

Mode: CC, CV

T1&T2: 50ms~60s, 1ms resolution

Battery Test Function:

Discharge Mode: CC, CR

Maximum Discharge Capacity: 9999Ah

Resolution: 1mA, 10mA, 10mΩ, 100mΩ

Voltage Readback Value:

Range: 0~19.999V, 0~150.00V

Resolution: 1mV, 10mV

Accuracy: ±(0.05%+0.1%FS)

Current Readback Value

Range: 0~3.000A, 0~40.00A

Resolution: 1mA, 10mA

Accuracy: ±(0.05%+0.1%FS)

Power Readback Value

Range: 0~400W

Resolution: 10mW

Accuracy: ±(0.1%+0.5%FS)

Over-voltage Protection: >155V Cut Off Input

Over Current Protection: >42A Cut Off Input

Over Power Protection: 420W

Over Temperature Protection: 85℃/185℉

Voltage (CV) Short-circuit Range: 0V

Product Overall Size: 31*9*19cm/12.2*3.54*7.48in

Package Size: 40*28*20cm/15.75*11.02*7.87in

Gross Weight: 3.8kg/8.38lbs

Net Weight: 3.61kg/7.96lbs

Package Included

1* Electronic Load Tester

1* English Manual

1* Power LoadMPNDoes not applyPlease NoteShipment within one working dayBrandUnbrandedUPCDoes not applyEANDoes not apply

---

---

---
