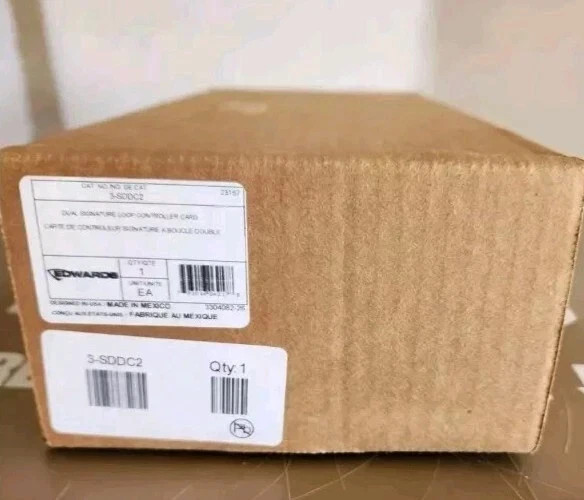

Edwards EST 3-SDDC2 Dual SIgnature Loop Controller ( FAST SHIPPING ) For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Edwards EST 3-SDDC2 Dual SIgnature Loop Controller ( FAST SHIPPING ):
$615.00

Edwards EST 3-SDDC2 Dual Signature Driver Controller

Product: Edwards EST 3-SDDC2 Dual Signature Driver Controller
Part Number: 3-SDDC2
Brand: Edwards EST
System Compatibility: EST3 / EST4

The Edwards EST 3-SDDC2 is a Dual Signature Driver Controller designed to provide an intelligent interface between the control panel CPU and Signature Series devices. It supports two Signature data circuits and uses dedicated microprocessor control with fully digital communication.

Key Features

• Dual Signature Driver Controller

• Supports two Signature circuits

• Intelligent microprocessor-based operation

• 100% digital communication

• Designed for Edwards EST3 and EST4 systems

• Mounts to the local rail and occupies one LRM space

• Comes with two 3-SDC1 Signature Device Cards

• Removable field-wiring terminal blocks

• Supports Class A, Class B, and Class X circuit wiring

• Designed for reliable communication with Signature Series devices

• Suitable for new installations, replacement, and system 3-SDDC2

• Type: Dual Signature Driver Controller

• Signature Circuits: 2

• Communication: Fully digital

• Mounting: Local Rail

• Rail Space: 1 LRM

• Device Cards: 2 × 3-SDC1

• Terminal Connection: Removable plug-in terminal strips

• Supported Wiring: Class A / Class B / Class X

• Manufacturer: Edwards EST

Package Includes

1 × Edwards EST 3-SDDC2 Dual Signature Driver Controller

Please verify the part number and compatibility with your existing EST system before purchasing.

Condition: New / As pictured
Shipping: Fast & Secure Shipping
Stock: USA Stock

---

---

---
