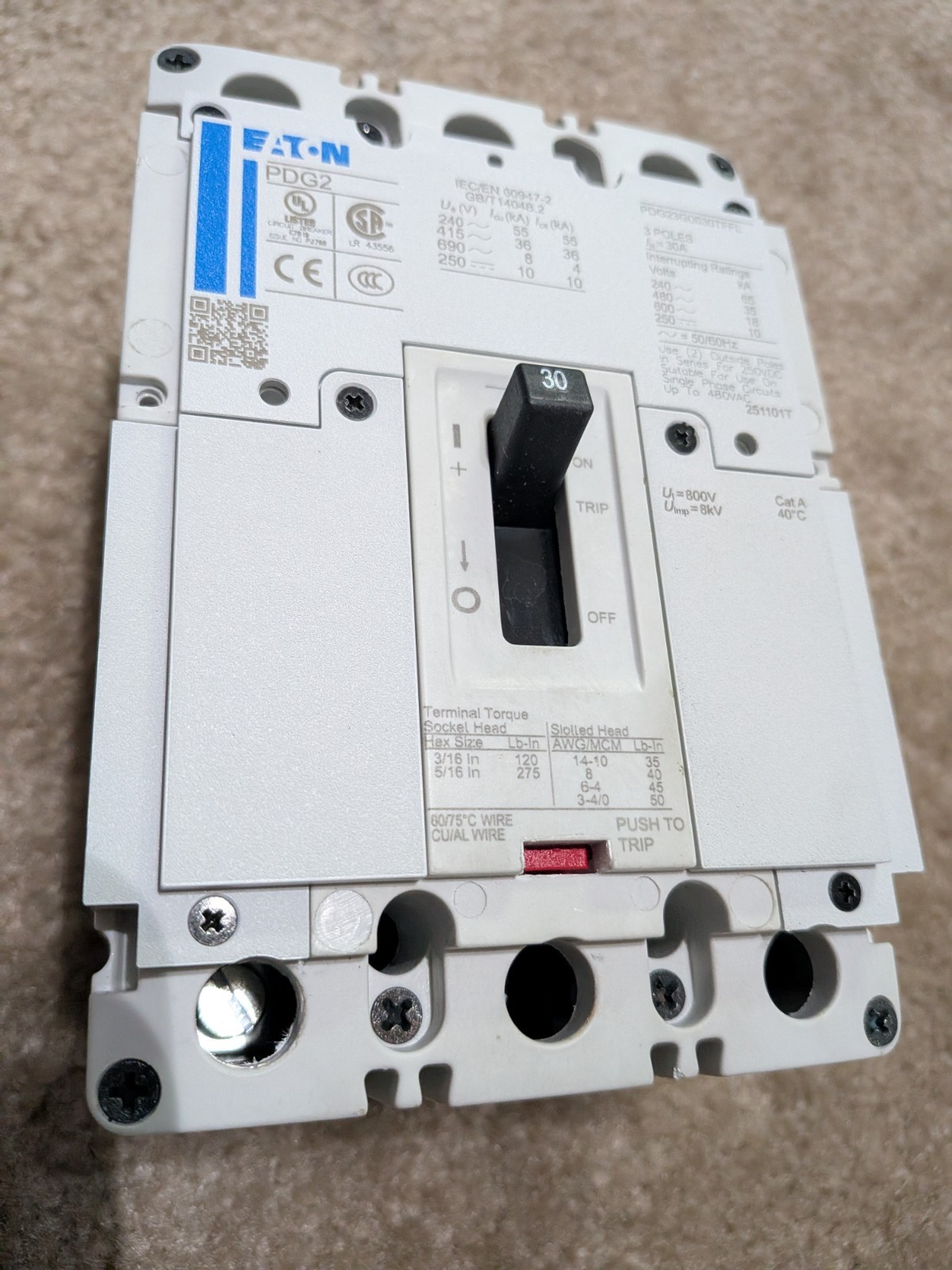

Eaton PDG23M0030TFFL Power Defense Molded Case Circuit Breaker:
$150.00

30A 3 Pole Molded Case Circuit PDG23G0030TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23G0030TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0030TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.Specifications
Key Defense
Amperage
30 A
Poles
3
Mounting Rating
35kAIC at 480VAC
Fit and installation
Frame Type
2
Terminal Type
Lugs
For Use With
Eaton Power Defense Panelboards, Switchboards
Wire Gauge
AWG 14 to AWG 1/0, Al/Cu
Max Wire
1/0 AWG
Min Wire
14 AWG
Protection and operation
Trip Technology
Thermal Magnetic
Trip Function Code
LI
Trip Function
Long-Time, Instantaneous
Trip Adjustability
Fixed Thermal, Fixed Magnetic
Standards and features
Available Options
Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary CE, CSA, IEC, UL
Temp Rating
-20C to 70C
Construction Features
HACR Rated, RoHS Compliant, Current Limiting, Common Trip, Trip-Free Mechanism, Reverse Feed
