On eBay Now...Eaton LJ215C4B 4-Way Loadbreak Junction 15kV 200A w/ Bracket NEW Cooper Power For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

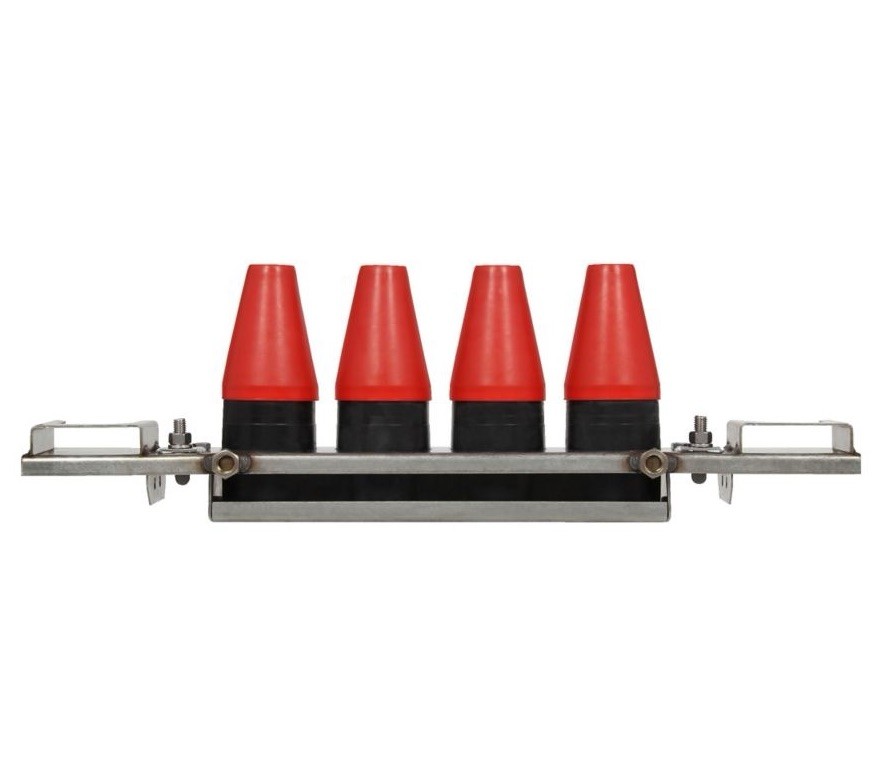

Eaton LJ215C4B 4-Way Loadbreak Junction 15kV 200A w/ Bracket NEW Cooper Power:
$189.99
The Eaton LJ215C4B 4-Way Loadbreak Junction is a high-quality unit designed for industrial applications. With a voltage rating of 15 kV and an amperage of 200 A, this junction is built to withstand heavy electrical loads. Manufactured by Eaton in Mexico, this product comes with a bracket for easy installation. Additionally, it is important to note that this product may contain chemicals known to the State of California to cause cancer or reproductive harm, as indicated by the California Prop 65 Warning.
GENERAL SPECIFICATIONS
Product Name
Eaton Cooper Power series loadbreak junction
Catalog Number
LJ215C4BPS
UPC
194006014496
Product Length/Depth
4 in
Product Height
22.9 in
Product Width
9.5 in
Product Weight
13.228 lb
Compliances
Not Applicable
Certifications
IEEE Std 386
Product Type
Loadbreak
EPDM rubber external/insulation, copper internal current-carrying parts
Number of interfaces
4
Special features
Special mtg feet, welded
Type
Loadbreak junction
ELECTRICAL RATINGS
Basic impulse level
95 kV
Current rating
200 A
Voltage rating
15 kV
MOUNTING
Mounting
SS bracket with two parking stands
Eaton LJ215C4B 4-Way Loadbreak Junction 15kV 200A w/ Bracket NEW Cooper Power
$189.99
Eaton LJ215C4B PS 4-Way Loadbreak Junction 15kV 200A w / Bracket NEW Cooper
$189.99
Eaton LJ215C4B 4-Way Loadbreak Junction 15kV 200A w/ Bracket NEW Cooper Power
$299.99
