On eBay Now...Eaton HFD3040 40A 3-Pole 600V Industrial Circuit Breaker HFD 65k For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

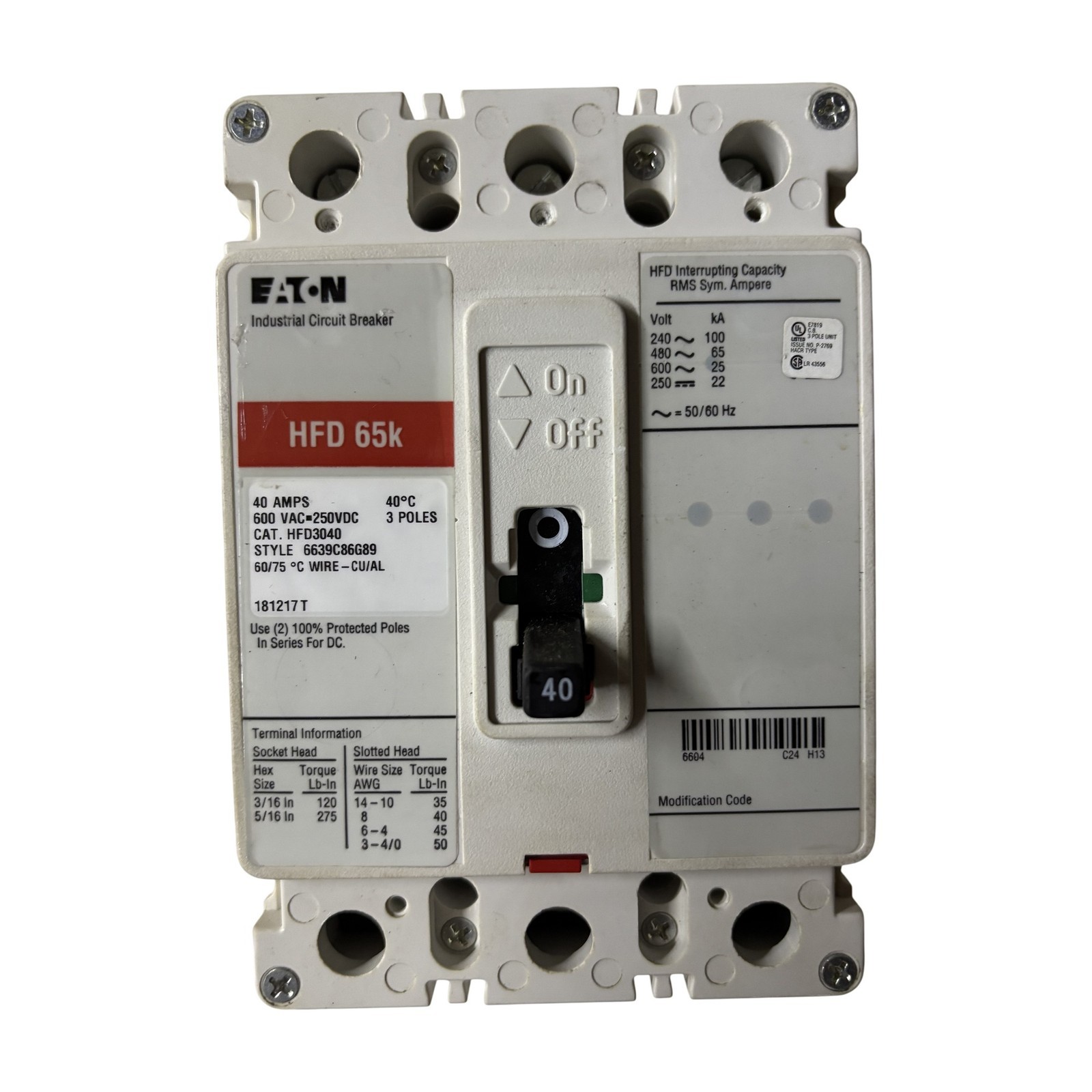

Eaton HFD3040 40A 3-Pole 600V Industrial Circuit Breaker HFD 65k:
$249.99
DescriptionThe Eaton HFD3040 is a 3-pole, 40-amp molded case industrial circuit breaker rated at 600VAC / 250VDC with a 65kA interrupting capacity at 240V. This HFD series breaker is UL listed and suitable for a wide range of commercial and industrial applications requiring reliable overcurrent protection. The unit accepts CU/AL wire from 14 AWG to 3/0 AWG.
Features & (Cutler-Hammer)Model NumberHFD3040Style Number6639C86G89Product TypeMolded Case Circuit BreakerSeriesHFD 65kAmperage40ANumber of Poles3Voltage Rating (AC)600VACVoltage Rating (DC)250VDCInterrupting Capacity at 240V100 kAInterrupting Capacity at 480V65 kAInterrupting Capacity at 600V25 kAInterrupting Capacity at 250VDC22 kAFrequency50/60 HzTemperature Rating40 degrees CWire Temperature Rating60/75 degrees CWire TypeCU/ALWire Range14 AWG - 3/0 AWGTrip TypeThermal-MagneticUL ListedYesWhat's Included- 1x Eaton HFD3040 3-Pole 40A Circuit with Eaton and Cutler-Hammer HFD-series panelboards and switchboards rated for 600VAC systems. Suitable for industrial control panels, motor control centers, and commercial distribution equipment requiring a 40A, 3-pole thermal-magnetic circuit breaker. Verify panel compatibility before installation.
Eaton HFD3040 40A 3-Pole 600V Industrial Circuit Breaker HFD 65k
$249.99
$235.00
Eaton HFD3040 40A 3-Pole 600V Industrial Circuit Breaker HFD 65k
$199.99
