Eaton Electrical BRPSURGE Eaton BRPSURGE Breaker, Surge Device,1-Phase, 2P, BR For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

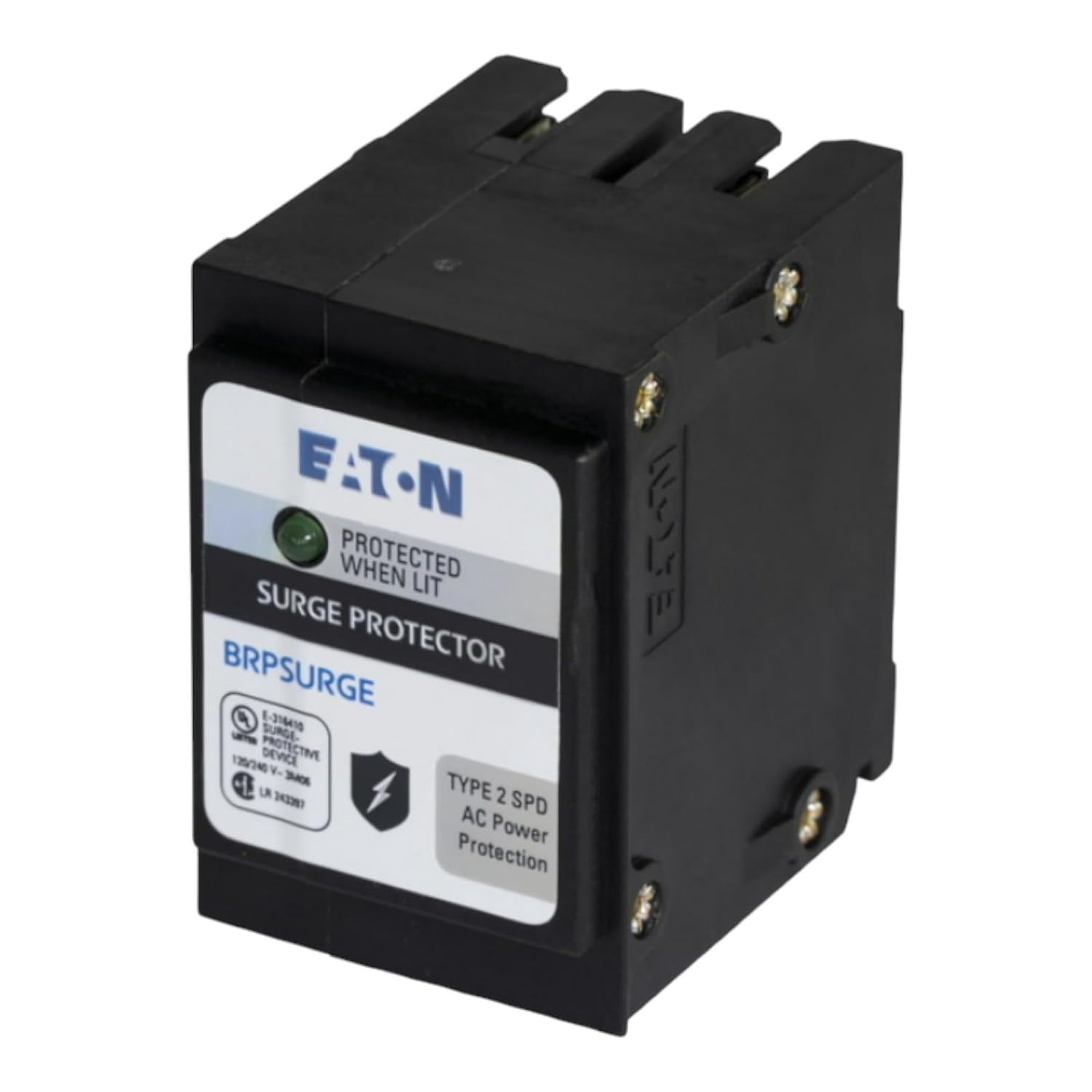

Eaton Electrical BRPSURGE Eaton BRPSURGE Breaker, Surge Device,1-Phase, 2P, BR:
$39.95

• Type 2 SPD Plug-On Neutral Surge Protection, Type BR, 2-Pole, 1-Phase, 120/240 VAC, Includes LED Indicator for Operational Status
• This one device will protect your entire downstream electrical system
• Eaton’s Type 2 Complete Home Surge Protection (CHSP) products are UL 1449 3rd Edition Listed and provide the highest level of surge protection and safety
• Type 2 surge products are permanently connected devices that are installed on the load side of the service entrance overcurrent protective device
• This listing is for Each

---

---

---

Eaton Electrical BRPSURGE Eaton BRPSURGE Breaker, Surge Device,1-Phase, 2P, BR

$39.95

---
