Eaton DG223NRB 100A 240V General Duty Safety Switch 3W Fusible NEMA 3R:
$101.15

Description

The Eaton DG223NRB is a 100-Amp, 240-Volt General Duty Safety Switch rated for 3-wire fusible service in a NEMA Type 3R rainproof enclosure. This unit is manufactured in the USA and is suitable for use as service equipment in residential, commercial, and light industrial applications. Terminals are suitable for aluminum or copper wire.

Features & NumberDG223NRBSeriesBProduct TypeGeneral Duty Safety SwitchAmperage100AVoltage120/240V AC, 240V~Frequency60 HzPoles2-PoleWiring Configuration3-Wire S/N FusibleEnclosure TypeNEMA Type 3R RainproofMaximum Fuse Size100AWire CompatibilityAluminum or Copper (AL-CU)HP Rating (1 Phase, 240V Std.)7.5 HPHP Rating (1 Phase, 240V Max.)16 HPHP Rating (3 Phase, 240V Std.)15 HPHP Rating (3 Phase, 240V Max.)30 HPUL ListedYesCountry of OriginUSADate Code07/20/2021What's Included

1x Eaton DG223NRB General Duty Safety Switch

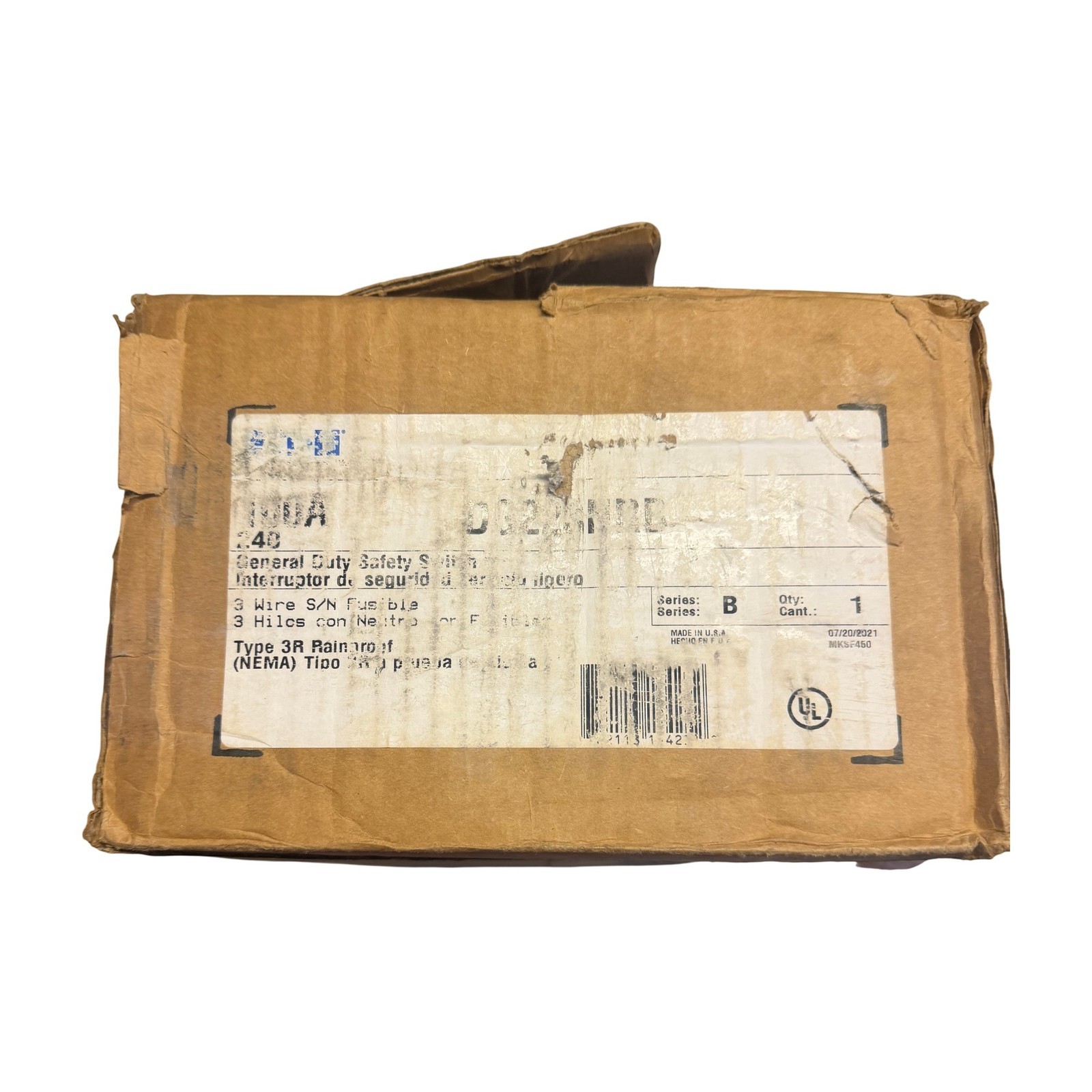

Original (damaged) box

Compatibility

Compatible with standard 100A fusible applications requiring a NEMA 3R rainproof enclosure. Suitable for use as service equipment in residential, commercial, and light industrial settings. Accepts Class H or K fuses up to 100A. Terminals rated for both aluminum and copper conductors.
