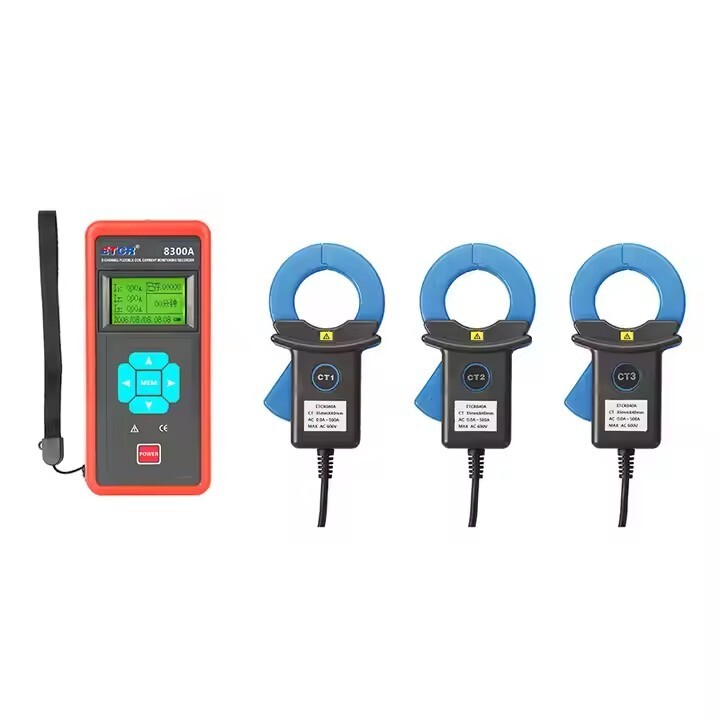

ETCR8300A Three Channel Clamp Current Tester Highly Accurate DC Voltage Current:
$745.50

Product Overview：

At the same time online monitoring and recording 1 ~ 3 channel AC leakage current and current, used for circuit insulation fault troubleshooti ng, monitoring intermittent leakage fault, check the happen time of insulation fault and maintenance lines, etc.

Main Features:

1. The current clamp adopts magnetic shield and digital integration technology, which has strong anti-interference and high precision. The host can configurable 1-3 PCS current clamp, the user chooses and purchase according to the demand.2. Equipped with rechargeable lithium battery, long duration, which can continues working about 168 hours continuously in power-saving mode, replace battery will not lost data.3. System clock function. Data storage function, large storage space for 200,000 groups4. With USB interface, communication cable and software, data upload software ,with functions of historical data reading, review, saving, reporting, etc.

Technical parameters:

Monitor Size25mmX30mm35mmX40mmCT Size115mmX70mmX33mm125mmX70mmX37mmPower SupplyRechargeable lithium battery DC3.7V, 2600mAhCurrent Clamp Quantity1-3 PCS (choose according the demand)WeightHost: about 292g; Current clamp: 180g/PCSMeter Dimension78mm(L)X165mm(w)X42mm(H)LCD SizeDisplay area: 44mmX27mmUSB InterfaceWith USB interface, storage data can be uploaded to computerData Storage200,000 groups (Power down or replace battery will not lose the data)Record PeriodSet the record interval time within 1 second ~ 99 minutes, 0 seconds is not automatically stored.Record TimeInterval time 1 seconds, can continues recording 48 hoursInterval time 10 seconds, can continues recording 120 hoursInterval time 1 minute, can continues recording 168 hoursDownload Speed60KB/ MinOverflow DisplayExceed measure range overflow function: \"OL\" symbol display
