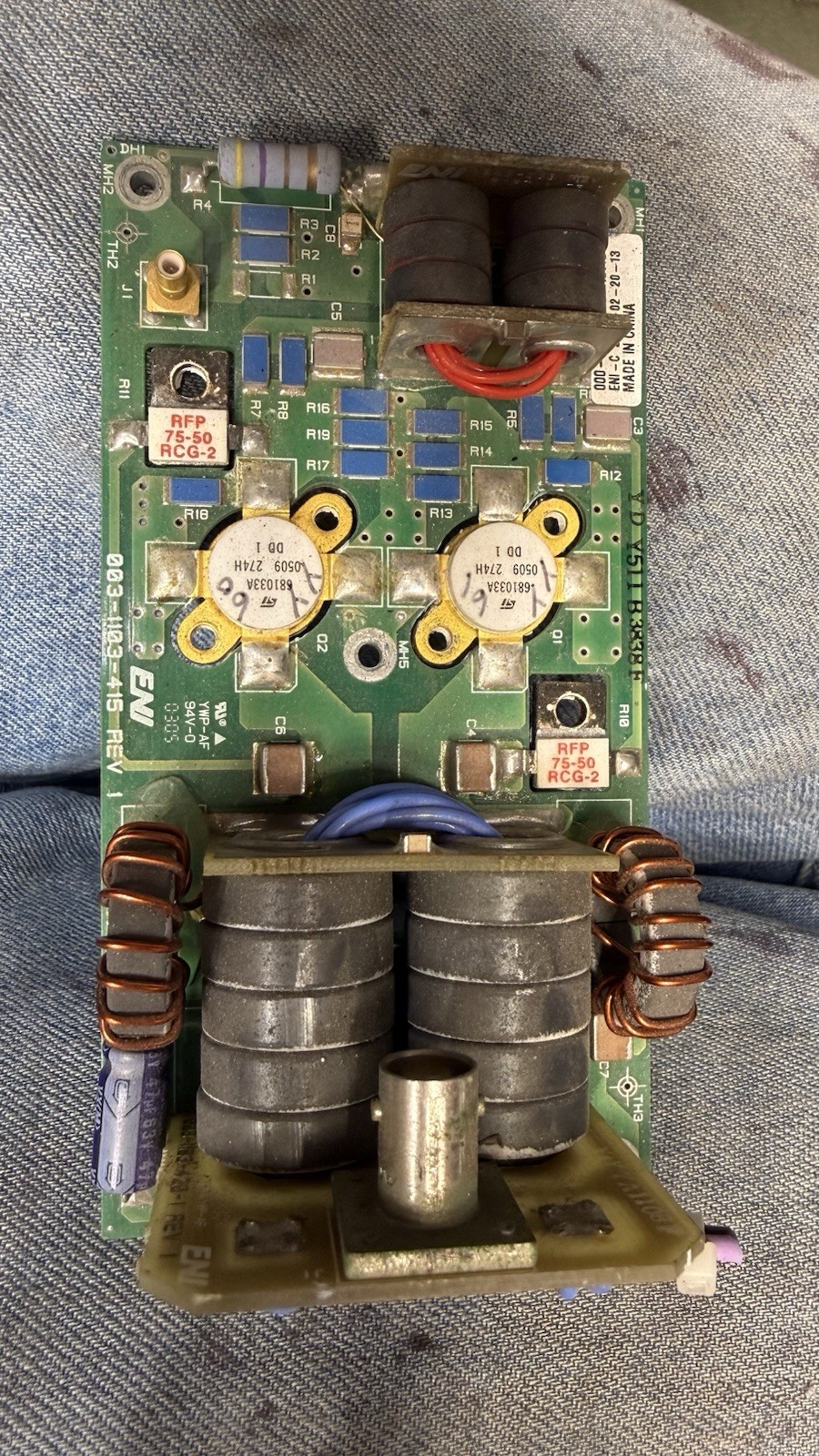

ENI 003-1103-415 RF Generator Power Amplifier PCB 27MHz DOFBC2-083:
$399.00

ENI RF generator power amplifier circuit board.
Part number: 003-1103-415Revision: Rev. 1Compatible equipment: ENI DOFBC2-083 / OB2 27 MHz RF generatorApplication: Industrial semiconductor and plasma-processing RF equipment
This board was removed from working equipment but has not been independently bench-tested after removal. It is being sold exactly as pictured. Please confirm part-number compatibility with your equipment before purchase.
Only the pictured circuit board is included. No additional cables, enclosure, documentation, or accessories are included.

---

---

---

ENI 003-1103-415 RF Generator Power Amplifier PCB 27MHz DOFBC2-083

$249.99

---

ENI 003-1118-304-1 Power Board

$886.77

---

14317 ENI RF GENERATOR, 27MHZ, 000-1103-083M1 DOFBC2-083

$26200.00

---
