ELM327 V1.5 PIC18F25K80 Chip Wifi/Bluetooth OBD2 Code Reader V1.5 WIFI ELM327 O:
$24.99

High-concerned chemicalNoneSpecial Features/Software UpdateNoSoftware Version/Hardware Version/Brand NameTHINKCAROriginMainland ChinaItem TypeCode Readers & Scan ToolsCertificationCEOEM NO./THINKCAR, a famous world-wide OBD2 scanner company established at 2019.Focus on intelligent diagnosis, advanced diagnostic technology, powerful device maker and excellent service provider. Thinkcar creates the newest modularized,remote diagnosis technology which makes Thinkcar devices more and more popular all over the world. Thinkcar develops all kinds of devices to meet every car owner's different needs.DescriptionReport this item or seller

Know Before You Buy

* It is only for 12V 16PIN OBD2 car, please check does your car meets the OBD2/EOBD protocol.
* Only for Engine system check, does not support other car systems.
* Does not support car radio.
* If you use it for iphone, please buy wifi version.

KINGBOLEN Brand, High Quality Bluetooth Firmware V1.5 ELM327 Wifi / Bluetooth ELM327 with original PIC18F25K80 Chip, 4mHz, understand commands such as ATPPS and others.

* The following picture is a demonstration interface: for reference only

Please select the correct one according to your mobile phone system

* Bluetooth ELM327 only supports Android system and PC.* WiFi ELM327 supports Android system, IOS and PC.* Version A and Version B are the same internally, the same chip, but the appearance is different.

The language of ELM327 follows your mobile phone system language

Take our ELM327 home and be your professional car doctor ! ! !

Main Functions:

With proper software installed in the host device, you may have following parameters read out from your vehicle:
* Vehicle Speed
* RPM
* Fuel Consumption
* Engine Coolant Temp
* Fuel Pressure
* Calculated Engine Load
* Throttle Position
* Intake Manifold Pressure
* Air Intake Temp
* Timing Advance
* Mass Air Flow
* Fuel Level
* Barometric Pressure
* EVAP System Vapor Pressure
* Fuel Trim
...

Please note: Your vehicle may not support all of the above parameters. How many parameters you can get depends on the vehicle manufacturer's implementation.

Features of ELM327

* Firmware Version V1.5 (Supports more protocols SAE J1850 than V2.1 version).* With chip: PIC18F25K80, supports all elm327 fucntions, in program ELM327 identifier, it shows full functions.* It understand commands such as ATPPS and other. * The frequency of the crystal oscillator is 4mHz.

Supported Protocols:

1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2 (5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
A. SAE J1939 CAN (29bit ID,250*Kbaud)
B. USER1 CAN (11*bit ID,125*Kbaud)
C. USER2 CAN (11*bit ID,50*kbaud)
*default settings (user adjustable)

This elm327 usually can work on most new car with OBD 16 pin Adapter and 12V engine:

It is for 12V 16PIN OBD2 EOBD car engine system check only

Is my car supported

Look under the hood and try to find a sticker that clearly states that the vehicle was designed to comply with OBD-2 regulations.

Software Requirements:

All ELM327 based software.

For IOS system APP recommendation

Car Scanner / OBD Auto Doctor / OBD Car Doctor / EOBD Faciles / Rev / FUZZYCar/ DashCommand / SpeedPORT / Nova Scan ...

Please Note: For iOS base software is not included, you must buy it from the Phone Store!

Android system software：

Torque pro / Mini OBD2 / OBD Car Doctor / DashComand ...

Windows system:

Scanmaster- ELM / PCMSCAN...

Technical Specifications:

SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius

How to connect with your phone and car ?

WIFI Version (For example）

Bluetooth version (For example）

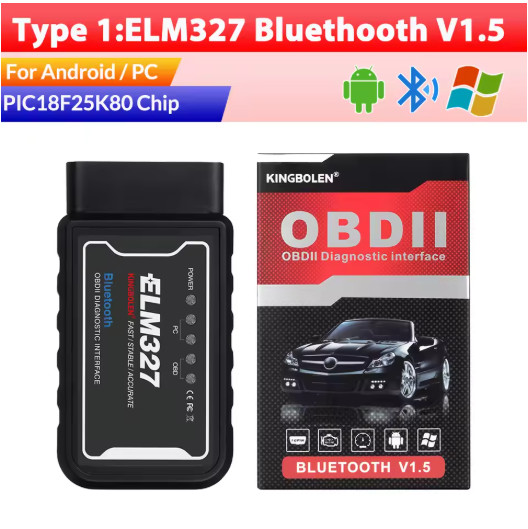

Type 1 :ELM327 Bluetooth Version:

Type 2 :ELM327 Wifi Version:

Type 3 :OBD SCAN Bluetooth Version :

Type 4 :OBD SCAN Wifi Version :
