ELEGOO UNO Project Super Starter Kit with Tutorial and UNO R3 Board Compatible w:
$58.64

ELEGOO UNO Project Super Starter Kit with Tutorial and UNO R3 Board Compatible with Arduino IDEDescription RAM Memory Installed 2 KB CPU Model ARM Cortex A-9 Processor Speed 16 MHz Connectivity Technology USB Operating System FreeRTOS Processor Brand Atmel (Microchip) Wireless Compability Infrared Compatible Devices Arduino boards and devices compatible with Arduino IDE RAM Memory Technology DDR2 Processor Count 1 Total Usb Ports 1 Item Dimensions L x W x H 8.3"L x 5.5"W x 1.97"H Brand ELEGOO Model Name UNO Project Super Starter Kit Built-In Media 1pcs UNO R3 Controller Board; LCD1602 Module (with pin header); Breadboard Expansion Power Supply (WARNING: Pls. do not use the voltage higher than 9V); Joystick Module; IR Receiver; Servo Motor (SG90); Stepper Motor; ULN2003 Driver Ultrasonic Sensor; DHT11 Temperature and Humidity 9V Battery with DC; 65 Jumper Wire; USB Cable; Active Buzzer; Passive Potentiometer; 5V Relay; Breadboard; Remote; Tilt Switch; 5pcs Button (small); 1 digit 7-segment Display; 4 Yellow LED; Blue Green Red RGB 2pcs Photo resistor; Thermistor; Diode Rectifier (1N4007); NPN Transistor (PN2222); IC 74HC595; 120pcs Resistor; 10pcs Female-to-male DuPont 130 DC motor; Fan blade Global Trade Identification Number 00746591610623 Model Number EL-KIT-003 Mfr Part Number EL-KIT-003 Manufacturer ELEGOO Warranty Description 1 Year Manufacturer Unit Count 1.0 Count Item Weight 1.2 Pounds Ram Memory Installed Size 2 KB CPU Speed 16 MHz

Product description ELEGOO UNO R3 Super Starter Kit

Compatible with Arduino Software, Sensors and Codes

Based on Arduino, an open-source platform used for building electronics projects, It consists of both a physical circuit board (often referred to as a microcontroller) and a piece of software, or IDE (Integrated Development Environment) that runs on your computer, used to write and upload computer code to the physical board.

ELEGOO is one of the manufacturer on the market, whose clone products are 100% compatible with the official microcontroller boards, they can use the official programming software, sensors and codes.

Learn The Science of Electronics

The controller boards can be used as the brains behind almost any electronics project, and it can interact with buttons, LEDs, motors, speakers, GPS units, cameras, the internet, and even your smart-phone or your TV! By connecting the controller board with a personal computer via a USB cable and uploading to the board, users can create digital devices and interactive objects that can sense and control objects in the physical and digital world like robots or even honest fortune-telling machines.

For this Elegoo Super Starter Kit, we provide a 24-lesson tutorial, introducing the basic setting of the programming software, the working principles of the sensors to enable the UNO board to control the sensors.

It’s a good choice and kit for kids, teens, adults or whoever is obsessed with electronics, programming or robotics to take their first steps on electronics journey!

This Kit is suitable for 10-year-old and up. Younger kids should be under supervision and guidance of adults.

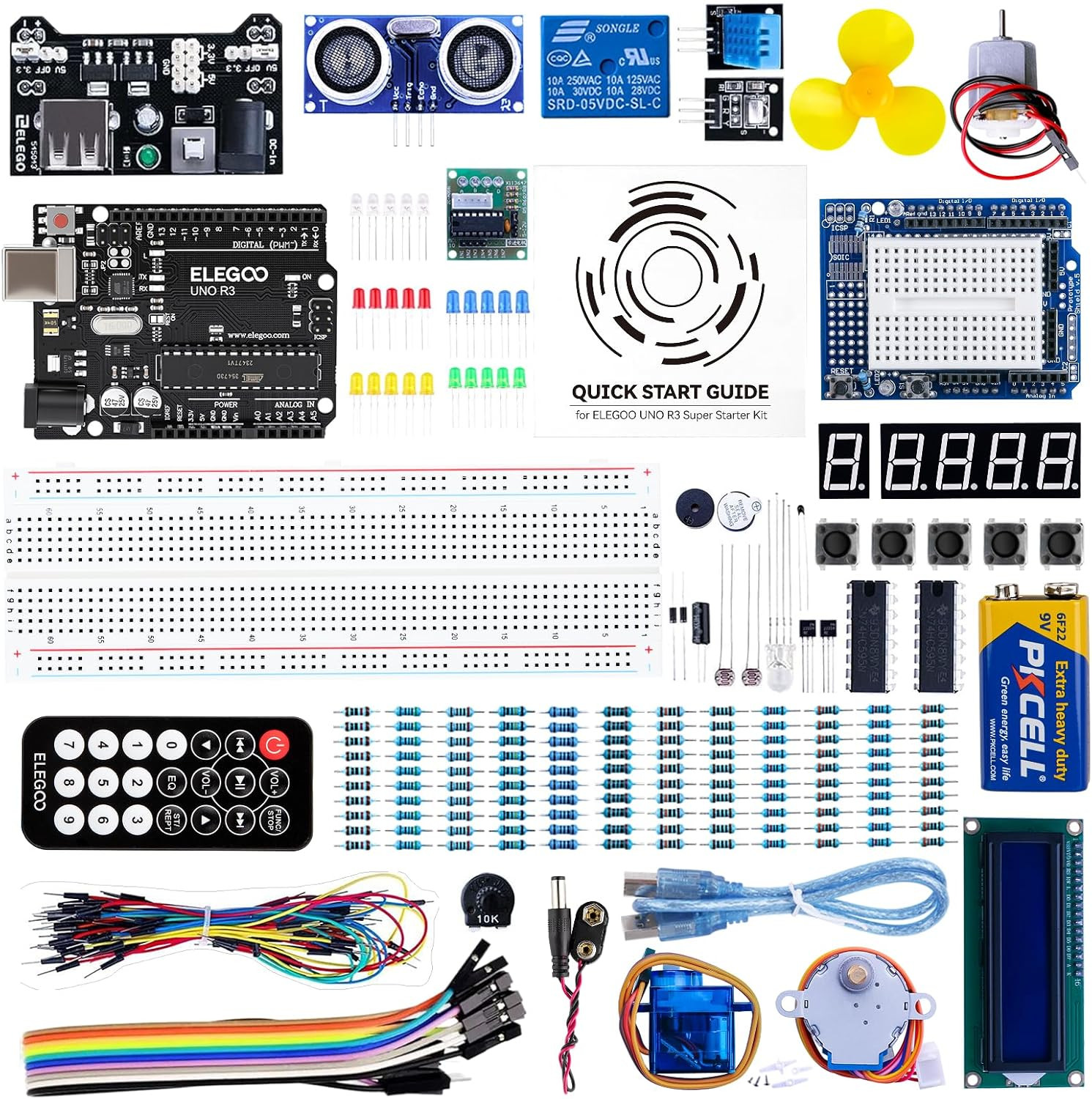

Component Listing:

1pcs UNO R3 Controller Board; 1pcs LCD1602 Module ( with pin header); 1pcs Breadboard Expansion Board; 1pcs Power Supply Module WARNING: Pls. do not use the voltage higher than 9V
1pcs Joystick Module; 1pcs IR Receiver; 1pcs Servo Motor (SG90); 1pcs Stepper Motor; 1pcs ULN2003 Stepper Motor Driver Board
1pcs Ultrasonic Sensor; 1pcs DHT11 Temperature and Humidity Module; 1pcs 9V Battery with DC; 1pcs 65 Jumper Wire
1pcs USB Cable; 1pcs Active Buzzer; 1pcs Passive Buzzer; 1pcs Potentiometer; 1pcs 5V Relay
1pcs Breadboard; 1pcs Remote; 1pcs Tilt Switch; 5pcs Button (small); 1pcs 1 digit 7-segment Display; 1pcs 4 digit 7-segment Display
5pcs Yellow LED; 5pcs Blue LED; 5pcs Green LED; 5pcs Red LED; 1pcs RGB LED
2pcs Photoresistor; 1pcs Thermistor; 2pcs Diode Rectifier (1N4007); 2pcs NPN Transistor (PN2222)
1pcs IC 74HC595; 120pcs Resistor; 10pcs Female-to-male Dupont Wire

74HC595 and LEDs

74HC595 is a Serial to Parallel Converter which has eight outputs and three inputs that you use to feed data into it a bit at a time.

This chip makes it a little slower to drive the LEDs (you can only change the LEDs about 500,000 times a second instead of 8,000,000 a second) but it's still really fast, way faster than humans can detect, so it's worth it.

74HC595 shift register is a type of chip that holds what can be thought of as eight memory locations, each of which can either be a 1 or a 0. To set each of these values on or off, we feed in the data using the 'Data' and 'Clock' pins of the chip.

4 digit 7 segment display

7 segment displays consist of 7 LEDs, called segments, arranged in the shape of an “8”. Most 7-segment displays actually have 8 segments, with a dot on the right side of the digit that serves as a decimal point.

When using 4-digit 7-segment display, the common anode or common cathode pin is used to control which digit is displayed. Even though there is only one digit working, the principle of Persistence of Vision enables you to see all numbers displayed because each the scanning speed is so fast that you hardly notice the intervals.

By building the circuit, users can make a simple display showing certain numbers, or more complexly, a count-up timer or a elecrical rolling dice.

Stepper Motor

Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time.

With a computer controlled stepping you can achieve very precise positioning and/or speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.

the simplest way of interfacing a unipolar stepper motor is to use a breakout

for ULN2003A transistor array chip, applying voltage to each of the coils in a specific sequence.

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 2,543 4.6 out of 5 stars 4,435 4.7 out of 5 stars 7,941 4.7 out of 5 stars 3,438 4.3 out of 5 stars 299 4.8 out of 5 stars 14,916 Price $36.99$36.99 $79.99$79.99 $65.99$65.99 $59.99$59.99 — no data $6.98$6.98 Control board / UNO MEGA UNO NANO No Controller Board Assembly Requirement No Yes No No Yes No Projects Tutorial Included Yes Yes Yes Yes Yes No Reasons to Buy Updated Version, Compatible with Arduino IDE and STM32. ELEGOO ElegooKit APP; FPV Mode; Obstacle Avoidance; Line Tracking Mode Tutorial of 33 Projects, Powerful Mega R3 Control Board Tutorial of 33 Projects, Complete Stater Kit with UNO R3 Elegookit APP; Obstacle Avoidance; Line Tracking Mode Copper-clad Aluminum, Good Quality Compatible with Arduino ✓ ✓ ✓ ✓ ✓ No

PDF tutorial(more than 22 lessons) and clear listing in a nice package
The most economical kit based on Arduino platform to starting learning electronics for those beginners who are interested.
Lcd1602 module with pin header (not need to be soldered by yourself)
This is the upgraded starter kits with power supply module, 9V battery with dc
High quality kit with UNO board, compatible with Arduino UNO R3, UNO R4, MEGA 2560 R3, NANO.
