ELEGOO 37-In-1 Sensor Modules Kit with Tutorial Compatible with Arduino:
$56.07

Store
New Arrivals
Add to Favorite
View response
Contact

ELEGOO 37-In-1 Sensor Modules Kit with Tutorial Compatible with ArduinoDescription Brand Name ELEGOO Age Range Description Youth Educational Objective Coding Skills, Programming Skills, STEM Set Name Upgraded 37 in 1 Sensor Modules Kit Number of Packs 1 Number of Items 37 Item Highlight Upgraded Parts, Suitable for UNO R3 MEGA Nano, 100% Compatible with Arduino IDE and STM32, Most Commonly Used Modules Included Components User Manual Model Number EL-KIT-011 Manufacturer ELEGOO Manufacturer Part Number EL-KIT-011 Manufacturer Warranty Description 1 Year Manufacturer Manufacturer recommended age 13 years and up Theme Computer Science, Electronics, Engineering, Mechanics, Physics, Robotics Size Standard Item Dimensions 10.63 x 7.09 x 1.73 inches Item Weight 14.08 ounces

Product description

Expand an existing electronics setup with the ELEGOO Upgraded 37-in-1 Sensor Modules Kit. The assortment combines input sensors, output devices, displays and control modules for prototyping, electronics learning and custom experiments.

Explore motion and position with the GY-521, PIR sensor, Hall modules, tilt and vibration switches, tracking and obstacle-avoidance modules. Test environmental and interactive inputs with ultrasonic distance, temperature and humidity, DS18B20, flame, light, sound, touch and water-level modules. Add output and control functions with the LCD1602 display, DS1307 real-time clock, joystick, rotary encoder, relay, buzzers, RGB LEDs, infrared receiver and transmitter and laser emitter.

Start with one module at a time, then combine inputs and outputs into motion alarms, distance indicators, environmental monitors, automatic lights, timers, status displays and other interactive electronics projects. Digital tutorial materials, datasheets, wiring guidance and example code support compatible board configurations and help users move from basic module tests to customized experiments.

For the included power supply module, use 6.5–9 V DC input only and do not exceed the specified range. Check VCC, GND and signal-pin order before applying power, test modules individually before combining circuits and keep the laser emitter away from eyes. Sensor readings can vary with placement, calibration and ambient conditions; the modules are intended for learning, experimentation and prototyping rather than calibrated safety-critical measurement.

Warning Tip: The input voltage of ELEGOO Power Supply Module is 6.5–9 V DC via 5.5 mm × 2.1 mm plug. Input voltage above the specified range may damage the module.

Component listing:

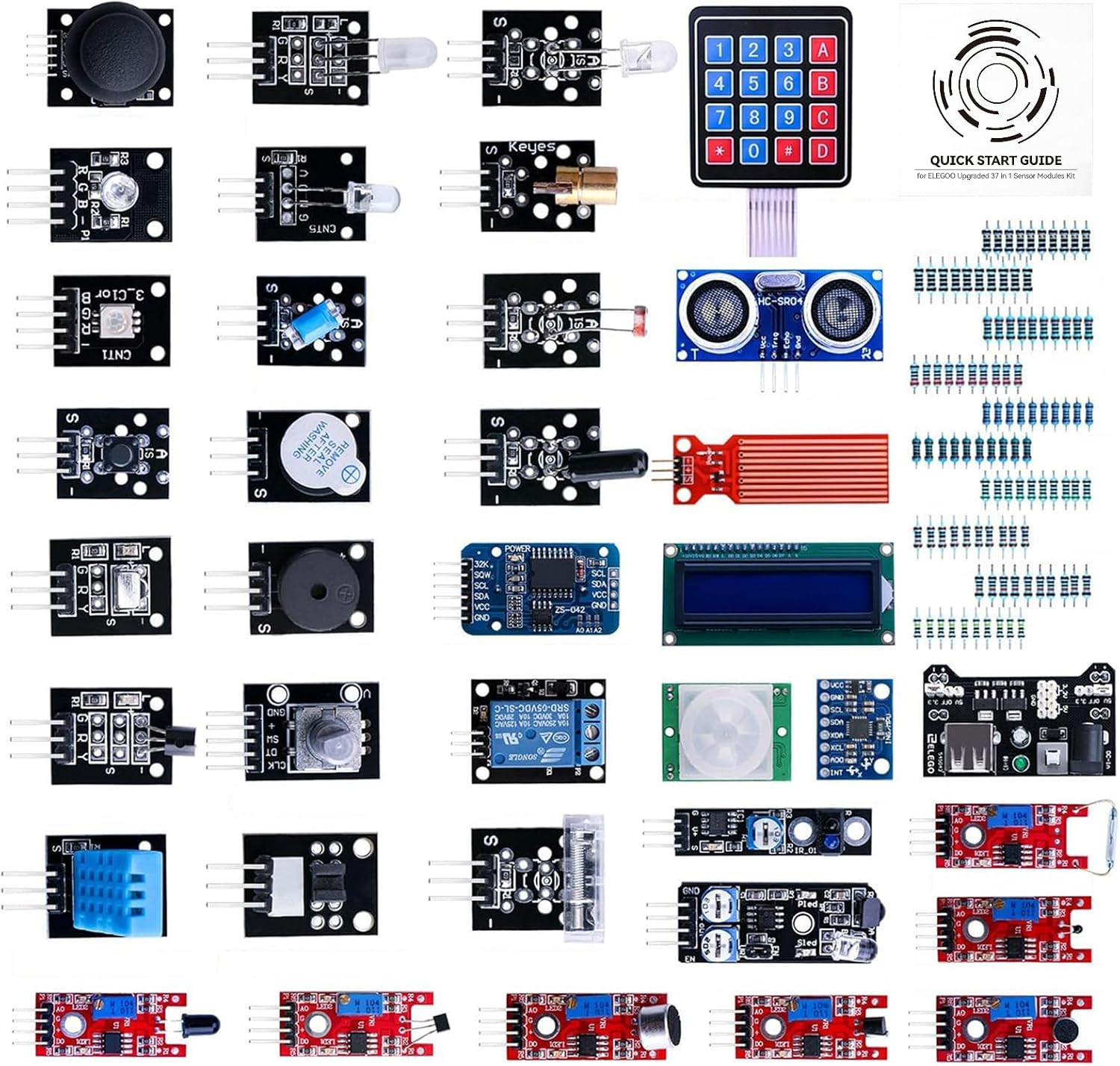

1 × Joystick Module, 1 × Relay Module, 1 × Rotary Encoder Module, 1 × DS-1307 RTC Module, 1 × Ultrasonic Sensor Module, 1 × HC-SR501 PIR sensor Module, 1 × Flame Sensor Module, 1 × Linear Hall Module, 1 × Metal Touch Module, 1 × Digital Temperature Module, 1 × Big Sound Module, 1 × Small Sound Module, 1 × RGB LED Module, 1 × SMD RGB Module, 1 × Two-tone Color Module, 1 × 7 Color Flash Module, 1 × Laser Emit Module, 1 × Shake Module, 1 × IR Receiver Module, 1 × IR Emission Module, 1 × Tilt Switch Module, 1 × Button Module, 1 × Active Buzzer Module, 1 × Passive Buzzer Module, 1 × 18B20 temp Module, 1 × Photo-resistor Module, 1 × Temperature and Humidity Module, 1 × GY-521 Module, 1 × Photo-interrupter Module, 1 × Tap Module, 1 × Membrane Switch Module, 1 × Avoidance Module, 1 × Tracking Module, 1 × Magnetic Spring Module, 1 × Water Lever Sensor, 1 × Power Supply Module, 1 × LCD1602 Module (with pin header)

This is a module-only expansion kit. A controller board, USB cable, breadboard and jumper wires are not included. Other microcontroller platforms may require different voltage levels, pin assignments, libraries or code adjustments, so verify electrical and software requirements before connecting each module.

Explore Electronics and Programming with 37 Sensor and Control Modules

Electronics is not as complicated as you imagine especially with ELEGOO 37-in-1 sensor kit. For advanced users like professional lab engineers, electronics engineering students and experienced Arduino hobbyists, they can use this kit to do various kinds of tests and experiments with so many sensors available at hand.

What about novice users who don\'t have any electronics knowledge? Don\'t worry. Just follow our tutorial enclosed and step by step you will come to realize that learning electronics is more fun than you ever expected with this amazing sensor kit.

Suitable for hands-on electronics practice, classroom demonstrations, maker projects and independent experimentation who are obsessed with electronics, programming or robotics to take their first steps in electronics journey!

Detailed and Easy-to-Follow Tutorial Helps You Learn Electronics without Problems

An enjoyable and educational experience is definitely the priority option to learn electronics. Our detailed tutorial with 31 lessons ranges from simple projects like how to monitor temperature and humidity with DHT11 sensor to complex projects like how to achieve the goal of timing control switch using a 1 channel relay module. Easy to understand and easy to follow.

Schematics and wiring diagrams are also presented in our tutorial, which helps you better understand why those sensors are connected in that way. Besides that we also have the Arduino IDE and programming code ready in the CD and our website. If you are a professional and prefer a little DIY you can also alter the codes and make it more personalized.

Temperature and Humidity Sensor

The digital temperature and humidity sensor is a composite sensor that contains a calibrated digital signal output of the temperature and humidity. The dedicated digital module collection technology and the temperature and humidity sensing technology are applied to ensure that the product has high reliability and excellent long-term stability. The sensor includes resistive wet-sensing components and an NTC temperature measurement device, and connects with a high-performance 8-bit microcontroller.

GY-521 Triaxial Acceleration Triaxial Gyroscope Sensor

GY-521 six-axis sensor usually consists of two which are accelerometer and a gyroscope. The GY-521 is a 6 DOF (Degrees of Freedom) or a six-axis IMU sensor, which means that it gives six values as output. Three values from the accelerometer and three from the gyroscope. It is also a sensor based on MEMS (Micro-Electro-Mechanical Systems) technology. Both the accelerometer and the gyroscope are embedded inside a single chip. This chip uses the I2C (Inter-Integrated Circuit) protocol for communication.

PIR Motion Sensor

PIR sensors allow you to sense motion and are almost always used to detect whether a human has moved in or out of the sensor\'s range. They are small, inexpensive, low-power, easy to use, and don\'t wear out. For that reason, they are commonly found in appliances and gadgets used in homes or businesses. PIRs are basically made of a pyroelectric sensor, which can detect levels of infrared radiation. Everything emits some low-level radiation, and the hotter something is, the more radiation is emitted.

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 2,546 4.6 out of 5 stars 1,620 4.6 out of 5 stars 2,072 4.7 out of 5 stars 16,583 4.7 out of 5 stars 3,472 4.7 out of 5 stars 7,984 Price $36.99$36.99 $9.99$9.99 $21.99$21.99 $45.99$45.99 $59.99$59.99 $65.99$65.99 Product Type Sensor Expansion Kit Electronic Component Kit Basic Starter Kit Super Starter Kit The Most Complete Starter Kit The Most Complete Starter Kit Controller Board Not Included Not Included UNO R3 UNO R3 UNO R3 MEGA 2560 Tutorial Resources ✓ ✓ ✓ ✓ ✓ ✓ Best For Expanding an existing board with motion, environment, display and control modules for sensor experiments Building basic breadboard circuits with LEDs, resistors, capacitors and discrete components using an existing board First electronics and coding exercises with an included UNO R3, breadboard and essential circuit components Step-by-step projects using sensors, motors, LCD, relay and other modules with an included UNO R3 Broader UNO R3 projects combining sensors, displays, motors, RFID, RTC and a large component assortment Larger projects needing more I/O, memory and serial ports with a broad starter component assortment

Build a 37-Module Sensor Lab: Add motion, distance, light, sound, temperature, touch, display and control functions to compatible UNO, MEGA, Nano, ESP-32 or STM32 projects for prototyping, classroom experiments and maker builds
Explore Input Sensors and Motion: Experiment with GY-521 motion sensing, PIR detection, ultrasonic ranging, temperature and humidity, DS18B20, flame, Hall, touch, light, sound, tilt, tracking and obstacle-avoidance modules
Add Displays, Timing and Control: Use the LCD1602, DS1307 real-time clock, joystick, rotary encoder, relay, buzzers, RGB LEDs and infrared modules to build clocks, alarms, counters, status displays and automated projects
Follow Guided Projects Materials: Use digital tutorial materials, datasheets, wiring diagrams and example code for compatible UNO R3, MEGA 2560 and Nano boards, then adjust thresholds, timing and logic to create custom experiments
Module-Only Expansion Kit: Controller board, USB cable, breadboard and jumper wires are not included; use 6.5–9 V DC only with the included power module, verify pin requirements before wiring and keep the laser emitter away from eyes
