ELDO LED - SOLO DRIVE 561/S DRIVER For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

ELDO LED - SOLO DRIVE 561/S DRIVER:
$115.00

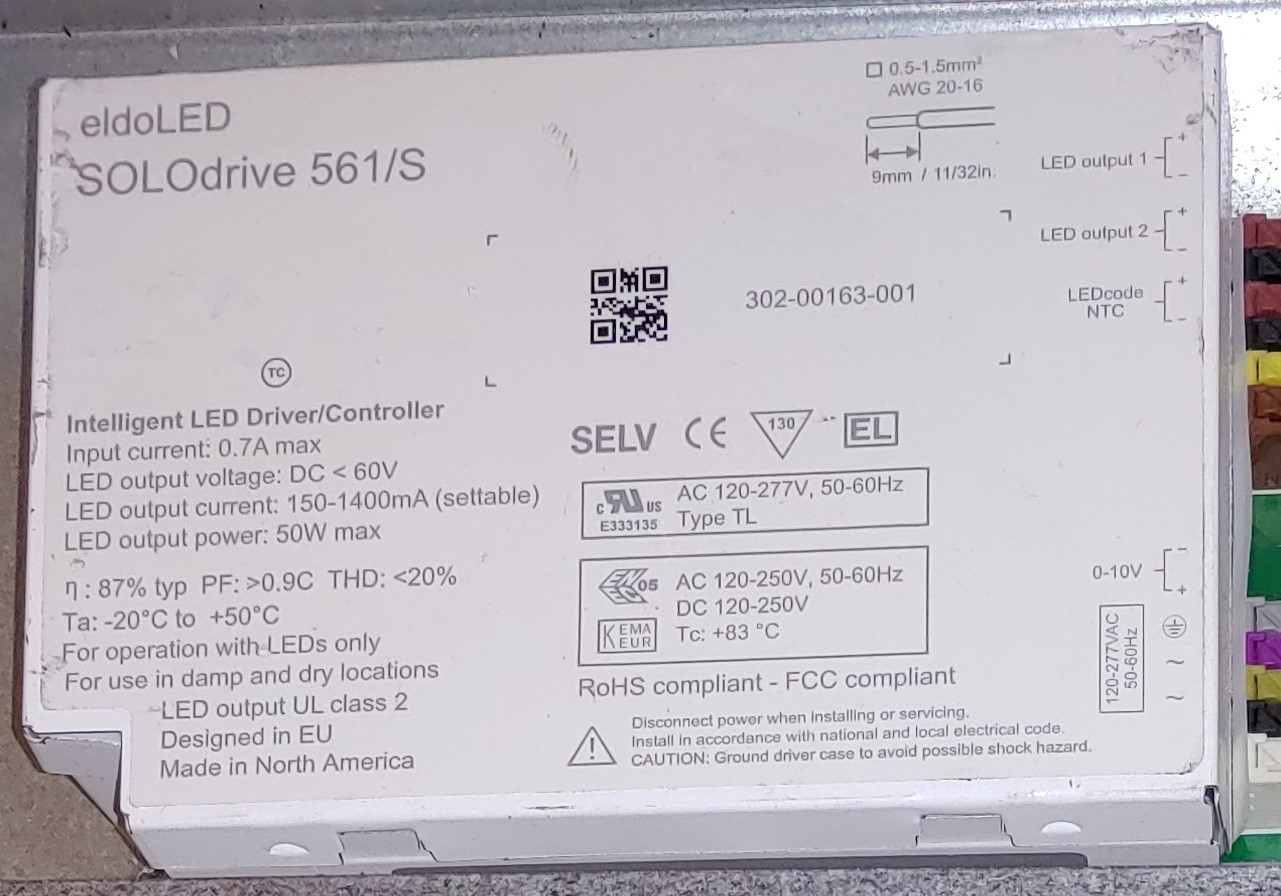

ELDOLED SOLODRIVE 561/S LED DRIVER / CONTROLLER

Brand: eldoLED
Model: SOLOdrive 561/S
MPN / Part Number: 302-00163-001
SKU: DRIV-08
Type: Intelligent LED Driver / Controller
Maximum Output Power: 50W
Input Voltage: 120-277V AC
Input Frequency: 50/60Hz
Maximum Input Current: 0.7A
LED Output Voltage: Less than 60V DC
LED Output Current: 150-1400mA, Settable
Control: 0-10V / LEDcode
Number of LED Outputs: 2
Typical Efficiency: 87%
Power Factor: Greater than 0.9
THD: Less than 20%
Ambient Temperature: -20°C to +50°C
Location Rating: Damp and Dry Locations
Output Classification: UL Class 2
Compliance: UL, CE, RoHS, FCC

---

---

---

ELDO LED 361/B Intelligent LED Driver Controller

$55.00

---

ELDO LED - SOLO DRIVE 561/S DRIVER

$115.00

---

ELDO LED - SOLO DRIVE 561/A DRIVER

$150.00

---
