EATON CHP24L125X2 CH PON LOADCENTER ENCLOSURE 125A For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

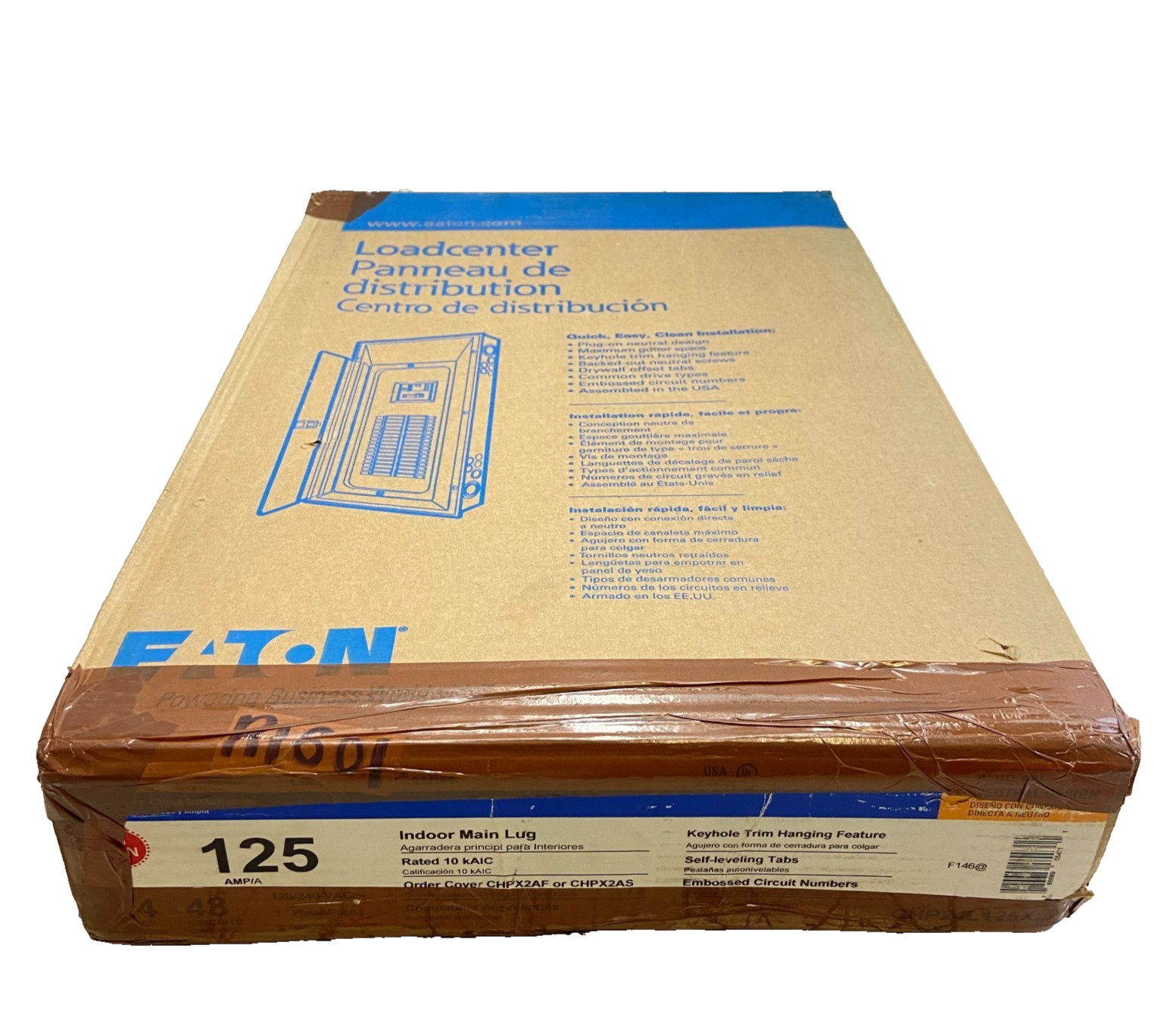

EATON CHP24L125X2 CH PON LOADCENTER ENCLOSURE 125A:
$87.99

SpecificationValue / DetailManufacturer / BrandEaton / Cutler-HammerCatalog NumberCHP24L125X2Product TypeMain Lug Loadcenter (MLO)Amperage Rating125 AVoltage Rating120/240 VACPhase / WiresSingle-phase, 3-WireNumber of Spaces24 SpacesNumber of Circuits / PolesUp to 48 CircuitsBreaker TypeCH Series (Plug-On Neutral / PON)Bus MaterialCopper (Silver-flashed)Enclosure RatingNEMA 1 (Indoor)Enclosure MaterialSheet SteelBox SizeX2 (Cover sold separately)Dimensions21\" H x 14.3\" W x 4\" DWire Size Range#6 to 2/0 AWGInterrupt Rating25 kAICCertificationsUL 67

Open Box:

\"New, unused, but packaging opened, not available or damaged.

Item :

- Has never been used or powered

- May have minor cosmetic imperfections

- Packaging damage does not affect product performance\"

---

---

---

EATON CHP24L125X2 CH PON LOADCENTER ENCLOSURE 125A

$87.99

---

NEW Eaton CHP24L125X2 Indoor Main Panel 125A 120/240VAC 24 Space/48 Circuits 1pc

$99.98

---

Eaton CHP24L125X2 Indoor Main Lug LC 125A 24SP 48C 1PH 3W 120/240V

$89.99

---
