Doble Engineering Co. TR3186 Digital Rotary Travel Transducer + 40\' Cable + Bag:
$1046.89

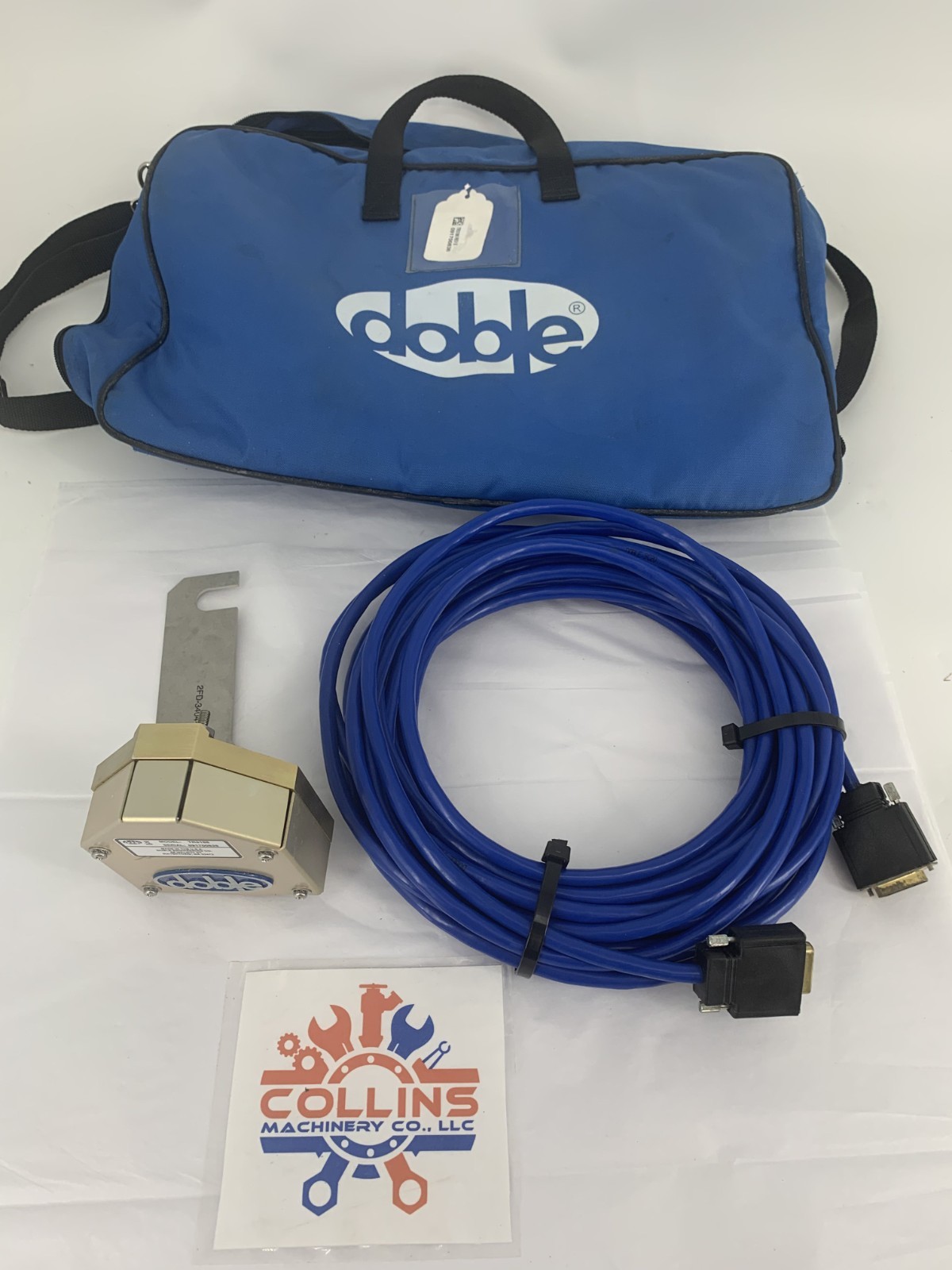

Doble Engineering Co. TR3186 Digital Rotary Travel Transducer Designed Specifically to Measure Contact Travel on ABB HMB 4/8 Hydraulic Operating Mechanisms + Doble 9C20 40\' 12-Meters Multi Conductor 20 AWG Stranded Electrical Cable Connection + Dedicated Carrying Bag - we have 1 of these digital rotary travel transducers available with Free Shipping.
Primary Function is to translates the mechanical rotary movement of the breaker\'s operating linkage into high-resolution digital pulses.
Application Focus-Engineered exclusively to interface with the mechanism cabinet geometries of ABB HMB 4/8 systems.
Compatible with either Doble TDR900 or TDR9100 test systems

---

---

---

Doble Engineering Co. TR3186 Digital Rotary Travel Transducer + 40' Cable + Bag

$1046.89

---

Doble Engineering TR3300 Digital Circuit Breaker Test System 120 V

$259.99

---

Doble Engineering Company 46318 Oil Sample Test Kit, 50 ml DGA Sample Syringe

$125.69

---
